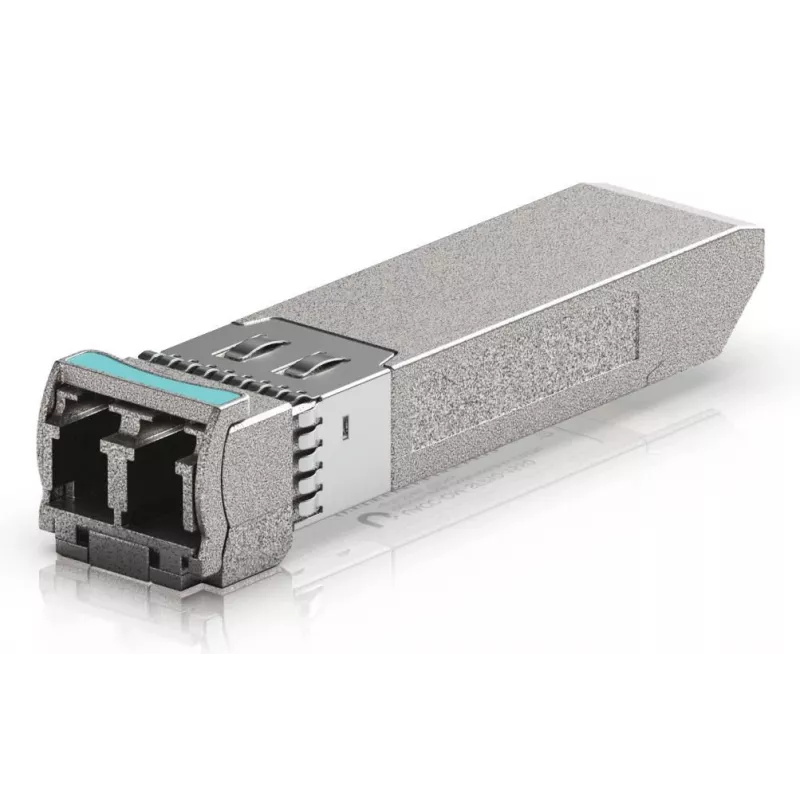

Módulo transceptor de red Ubiquiti UACC-OM-SFP10-1550 11300 Mbit/s SFP+ 1550 nm

The Ubiquiti UACC-OM-SFP10-1550 is an SFP+ CWDM fiber transceiver that supports 10G-class connections over single-mode fiber up to 20 km. It uses a duplex LC UPC connector and operates at a central wavelength of 1550 nm with a maximum data rate of 11,300 Mbit/s. The module is compatible with equipment that accepts SFP+ form-factor transceivers and is intended for use in optical networking links requiring extended reach.

Advantages

This SFP+ transceiver provides CWDM capability at 1550 nm for wavelength-division multiplexing, a single-mode fiber interface for long-distance links up to 20 km, and standard duplex LC UPC connectivity for easy installation. Rated for up to 11,300 Mbit/s, it supports high-speed data transmission and fits standard SFP+ ports for broad compatibility.

Suitable for

• 10G Ethernet links over single-mode fiber
• CWDM optical networks requiring a 1550 nm channel
• Data center uplinks and inter-switch connections up to 20 km
• Network equipment with SFP+ slots

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 11,300 Mbit/s
• Wavelength: 1550 nm (CWDM)
• Maximum reach: up to 20 km over single-mode fiber
• Connector: Duplex LC UPC
• Product colours: Aqua and grey
• Manufacturer part number (MPN): UACC-OM-SFP10-1550
• EAN: 810084694787

How to use

Insert the transceiver into an available SFP+ port on compatible networking equipment until it clicks into place. Connect a single-mode duplex LC fiber patch cable to the LC UPC ports, ensuring correct Tx/Rx orientation. Configure the connected devices for 10G operation and, if applicable, set CWDM channel parameters on multiplexing equipment. Verify link status and perform connectivity tests to confirm proper operation.

Recommendations

Use this module in environments with compatible SFP+ ports and single-mode fiber infrastructure. Ensure cleanliness of LC connectors before mating and follow ESD precautions when handling the transceiver. Confirm that connected equipment supports CWDM at 1550 nm and the specified data rate.
