Módulo transceptor óptico SFP Intellinet Industrial Gigabit Fiber 1000Base-LX monomodo 10 km plateado

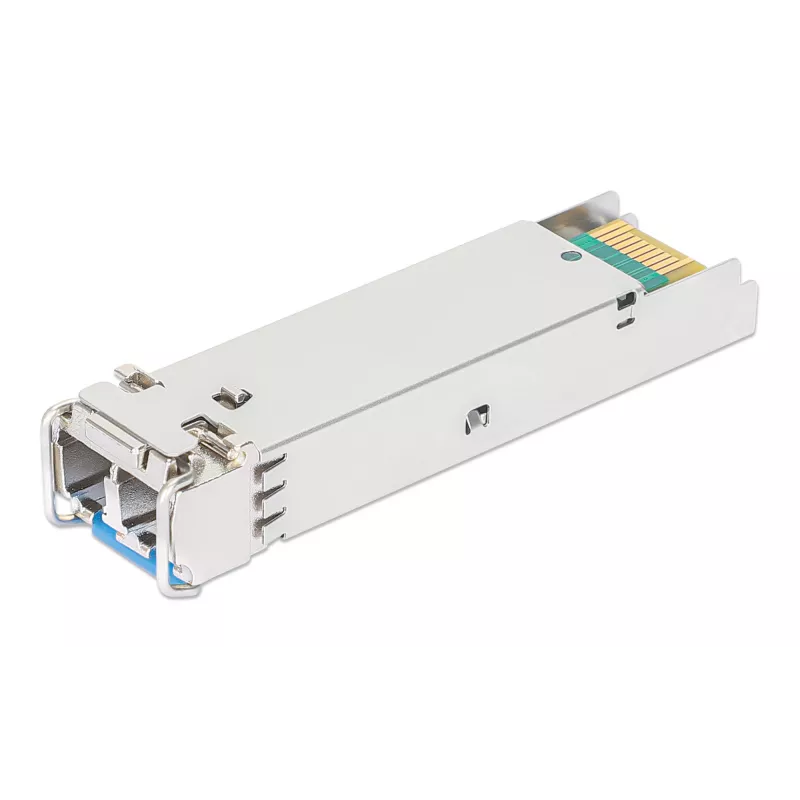

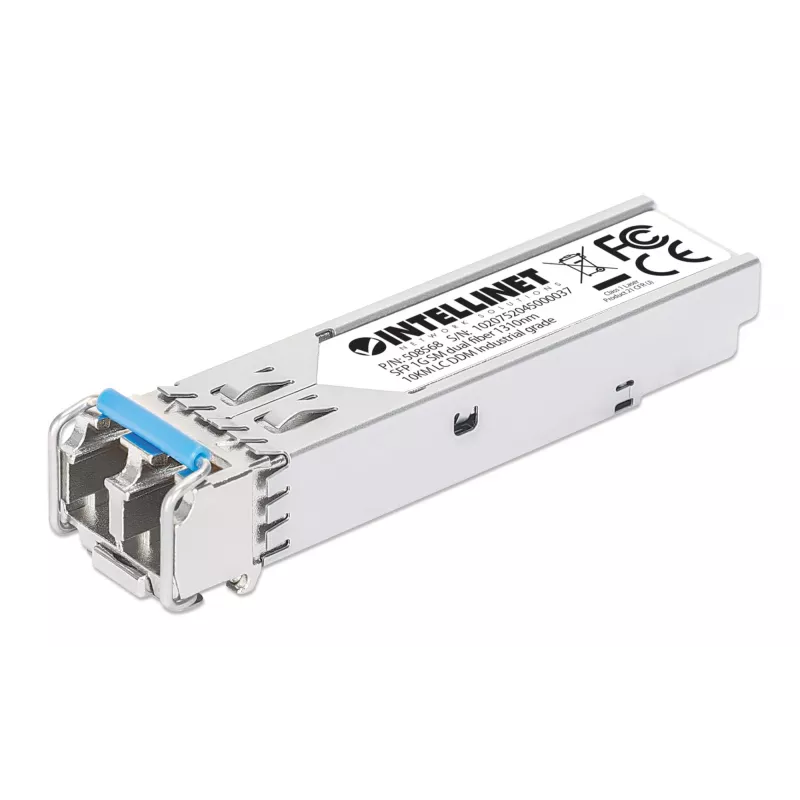

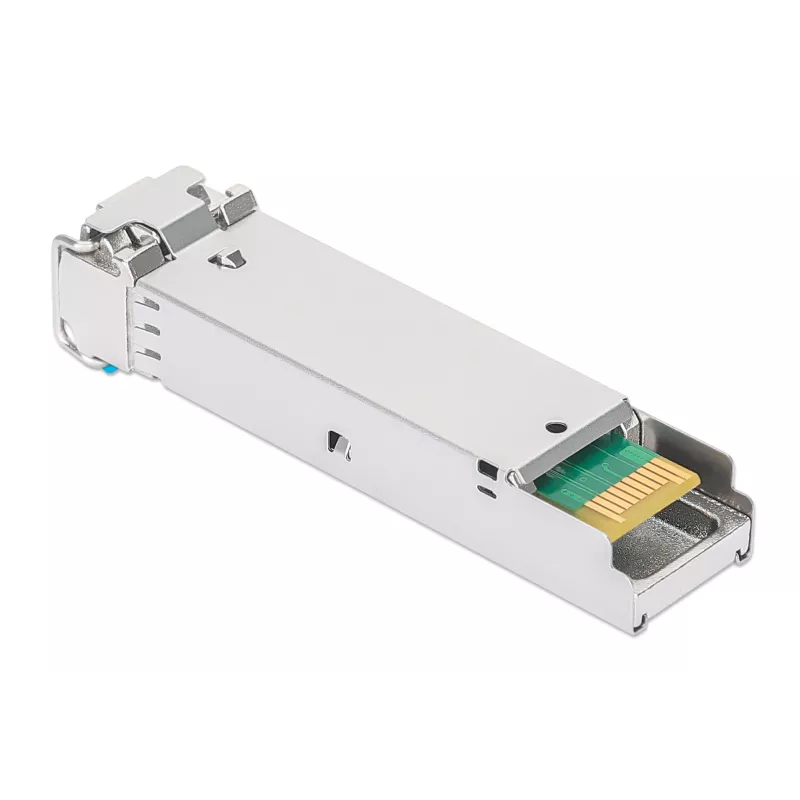

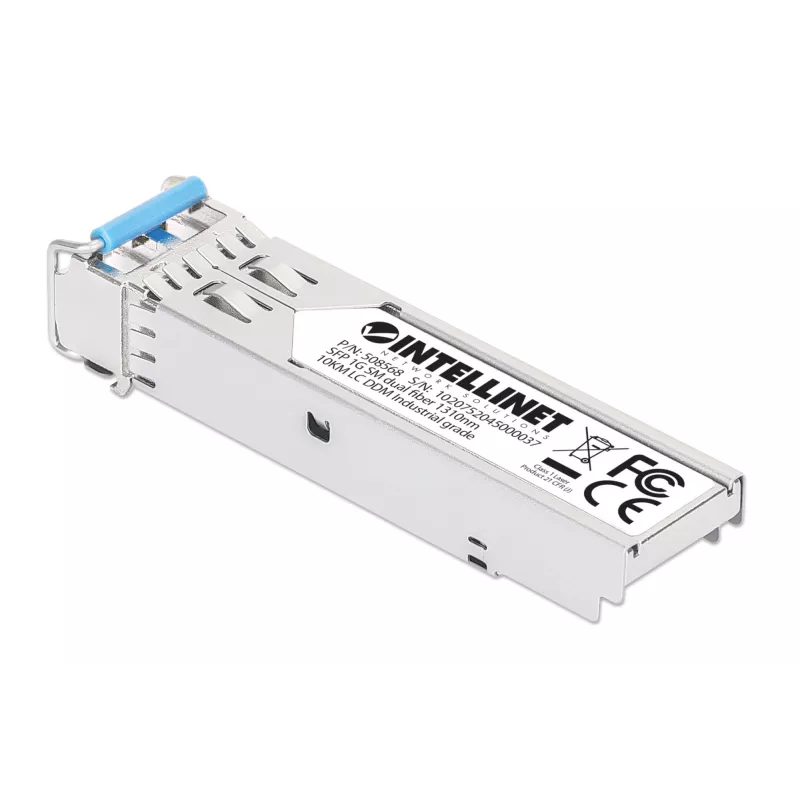

The Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module 1000Base-LX provides single-mode fiber connectivity up to 10 km in a compact SFP (mini-GBIC) form factor. Housed in a durable metal casing, this module supports a 1000 Mbit/s link, MSA compliance for wide interoperability, LC connector interface and operates on a 3.3 V supply with typical power consumption around 1 W. The transceiver is rated for industrial temperature ranges, allowing reliable operation in harsh environments.

Advantages

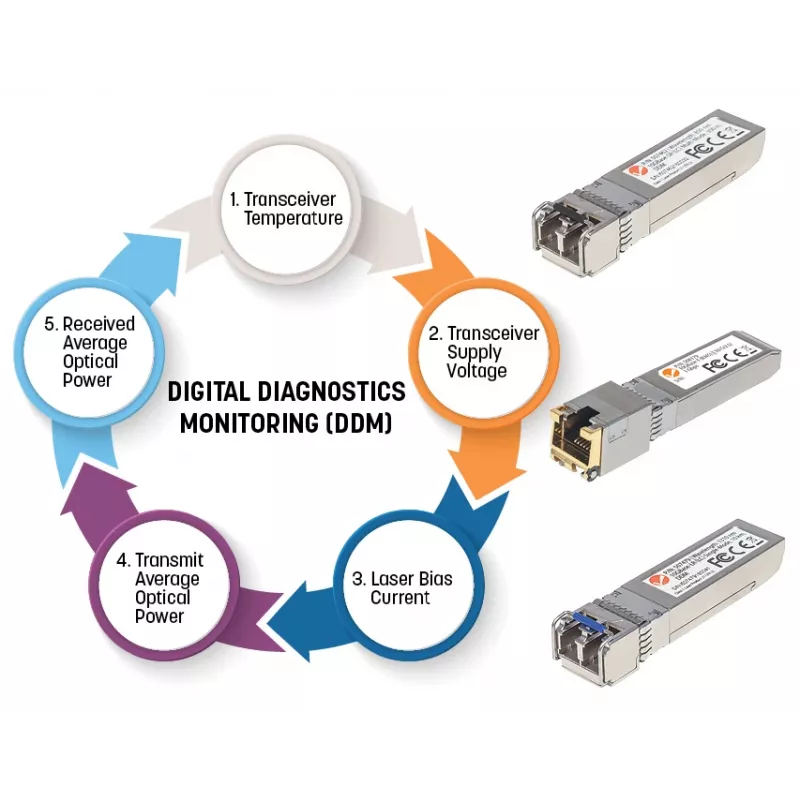

The metal housing increases mechanical durability and reduces electromagnetic interference while the small SFP form factor enables high-density fiber deployments. MSA compatibility ensures multi-vendor interoperability with a broad range of switches and routers. Hot-pluggable design allows installation or removal without powering down the switch. Built-in Digital Diagnostics Monitoring (DDM/DOM) enables real-time monitoring of optical output/input power, temperature, laser bias current and supply voltage.

Suitable for

• Industrial Ethernet links requiring single-mode fiber up to 10 km
• High-density fiber panels and chassis with SFP ports
• Replacement or expansion modules in multi-vendor networks (MSA-compliant)
• Environments with wide temperature ranges or elevated electromagnetic interference

Key specifications

• Standard: 1000Base-LX (Gigabit Ethernet)
• Data rate: 1000 Mbit/s
• Maximum distance: 10000 m (single-mode)
• Connector: LC
• Form factor: SFP (mini-GBIC), hot-pluggable
• DDM/DOM: Supported
• Operating temperature: -40 to 75 °C
• Supply voltage: 3.3 V
• Typical power consumption: ~1 W
• Color/finish: Silver, metal housing

How to use

Insert the SFP module into an empty SFP port on a compatible switch or router until it clicks into place. Connect a single-mode LC-terminated fiber patch cable to the module's LC connector, observing correct TX/RX orientation. The module supports hot-plug operation, so it can be installed or removed without powering down the host device. Use the host device or network management tools to verify link status and, if available, read DDM parameters for optical power, temperature and supply voltage.

Recommendations

The module is intended for use in MSA-compliant SFP ports and industrial applications; confirm compatibility with your switch vendor when using vendor-locked equipment. For reliable links, use single-mode LC fiber rated for 10 km and follow standard fiber handling precautions to avoid connector contamination or bend-induced loss.
