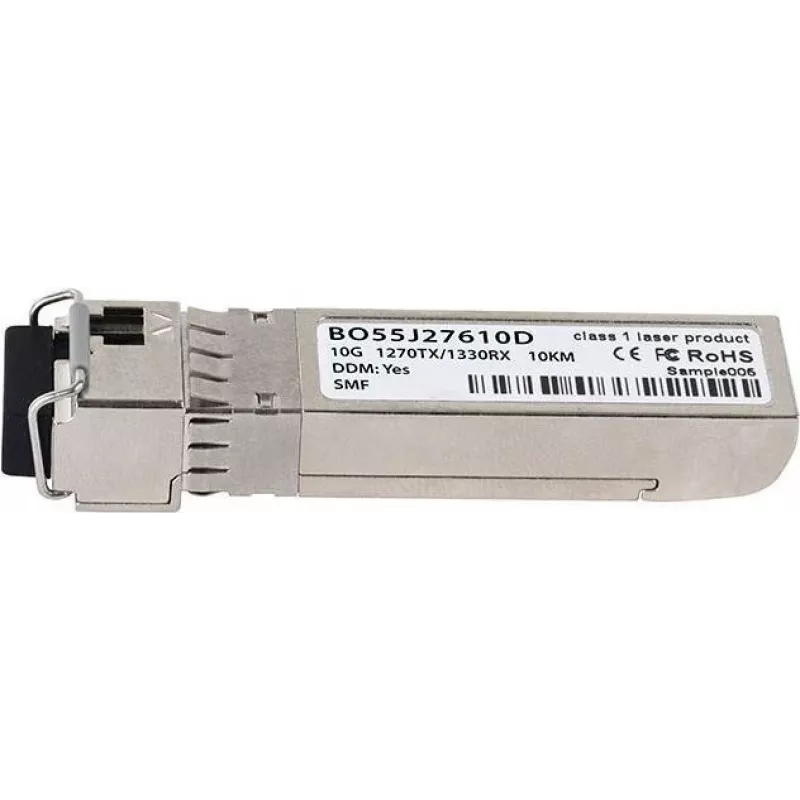

Módulo transceptor SFP+ BlueOptics 100-01512BXU-10-BO 10000 Mbit/s

The BlueOptics 100-01512BXU-10-BO SFP+ transceiver module delivers 10 Gigabit Ethernet connectivity in a compact SFP+ form factor. Designed for fiber optic networks, this module supports a maximum data transfer rate of 10000 Mbit/s and a maximum transfer distance of up to 10000 m using LC (UPC) fiber connectors. With a silver housing and a reported MTBF of 1,000,000 hours, the transceiver is intended for integration into media converters, switches and routers that accept SFP+ modules.

Advantages

The module provides a standardized SFP+ interface for straightforward hot-pluggable installation and replacement. Its support for 10 Gigabit Ethernet and long-reach fiber connectivity allows flexible deployment across campus, data centre and enterprise backbones. A compact design and low weight reduce space and handling constraints in high-density network equipment. The high MTBF value indicates expected long-term operation and reduced maintenance frequency.

Suitable for

• 10 Gigabit uplinks between switches and routers
• Long-reach fiber connections up to 10 km in campus and metropolitan networks
• Integration into media converters and SFP+ compatible network devices
• Data centre server-to-switch connections requiring LC (UPC) interfaces

Key specifications

• Maximum data transfer rate: 10000 Mbit/s (10 Gbps)
• Maximum transfer distance: up to 10000 m (single-mode fiber typical)
• Form factor: SFP+
• Ethernet interface type: 10 Gigabit Ethernet
• Fiber optic connector: LC (UPC)
• Product colour: Silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours

How to use

Ensure the host device supports SFP+ transceivers and is powered off or follows the manufacturer's hot-plug guidelines. Align the module with the SFP+ slot and insert until it clicks into place; secure any latch or bail if present. Use single-mode fiber cables with LC (UPC) connectors, and observe correct transmit/receive orientation. After installation, verify link status and configure the host interface for 10 Gigabit operation as required by network settings.

Recommendations

Store and handle the transceiver in a clean, dry environment and avoid touching the fiber connector endfaces. Use dust caps when the module is not connected. Match fiber type and connector polish to system requirements and confirm compatibility with the host device before deployment.
