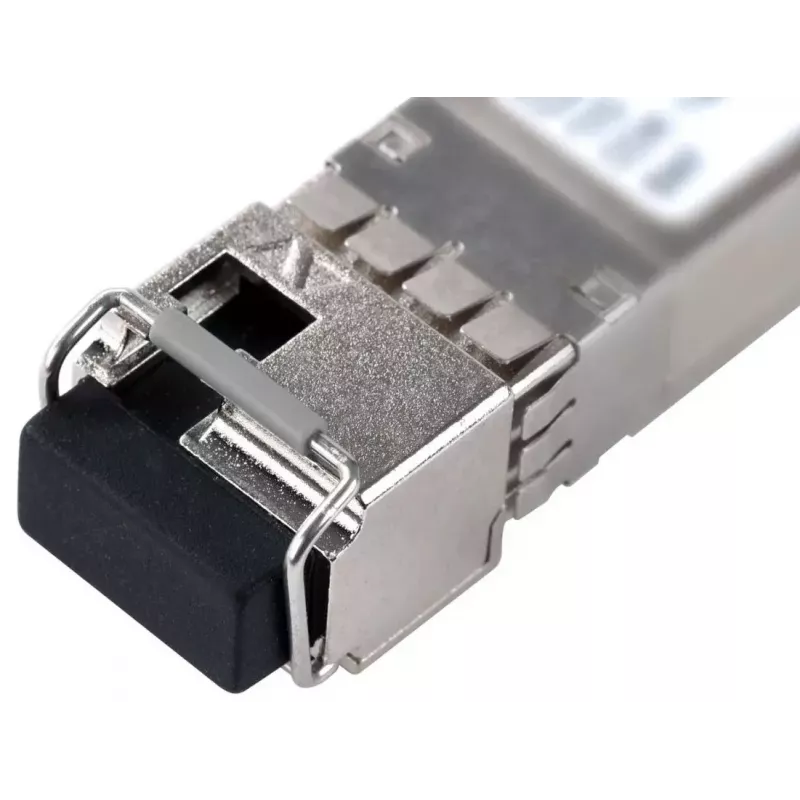

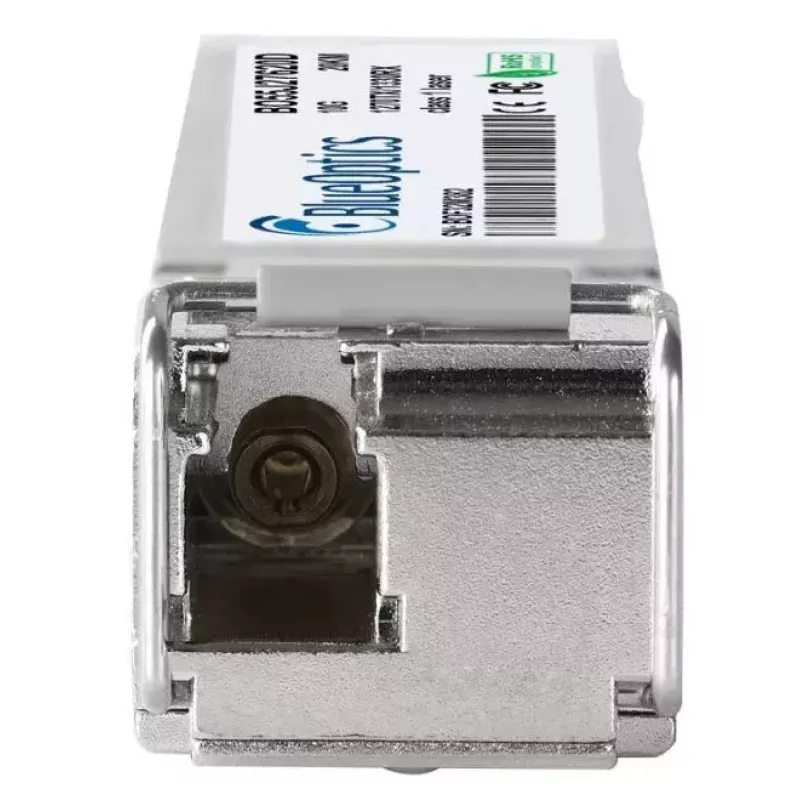

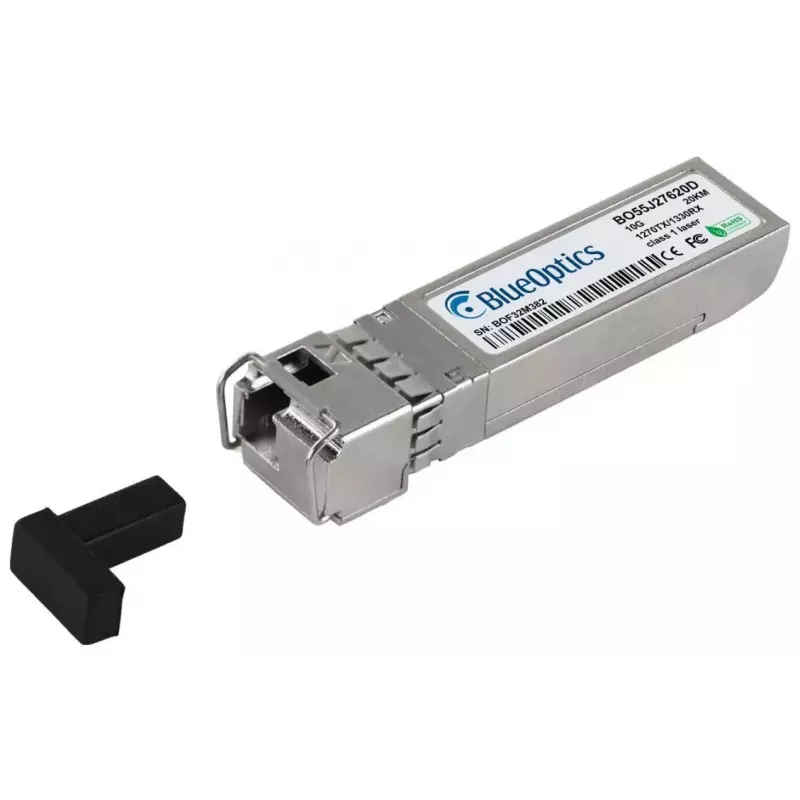

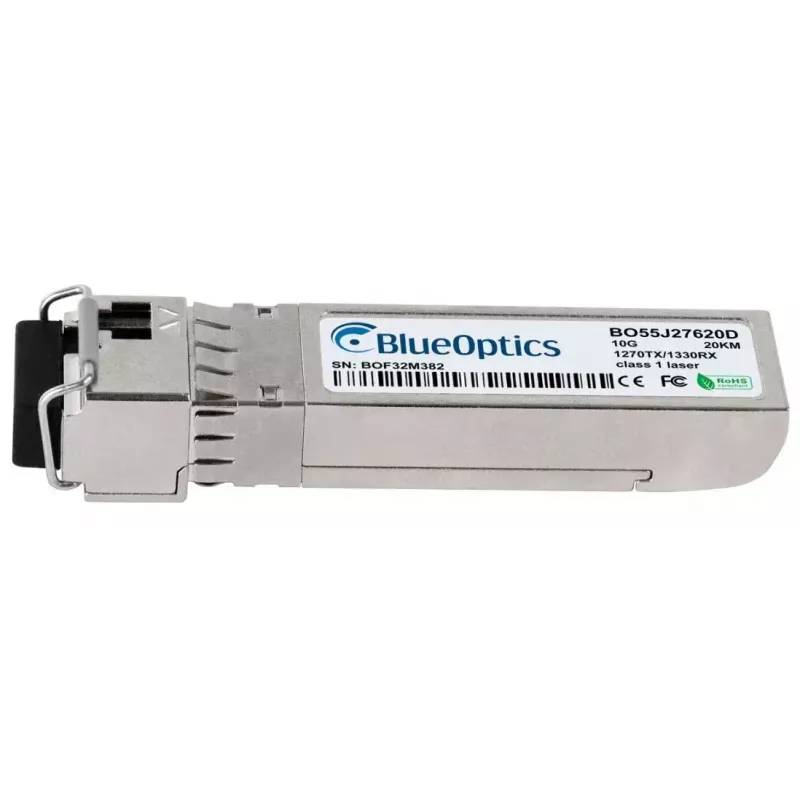

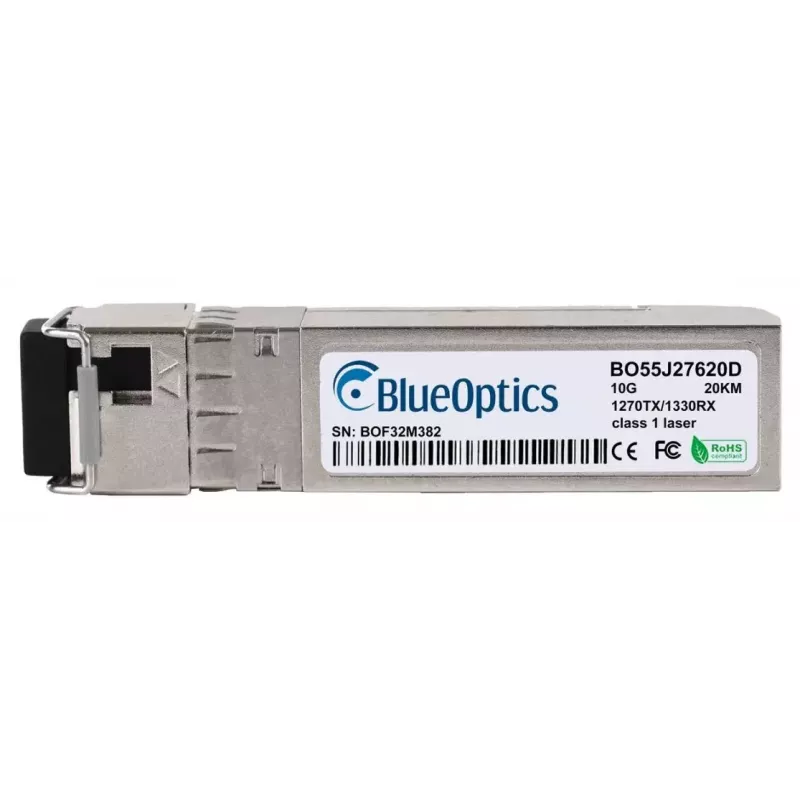

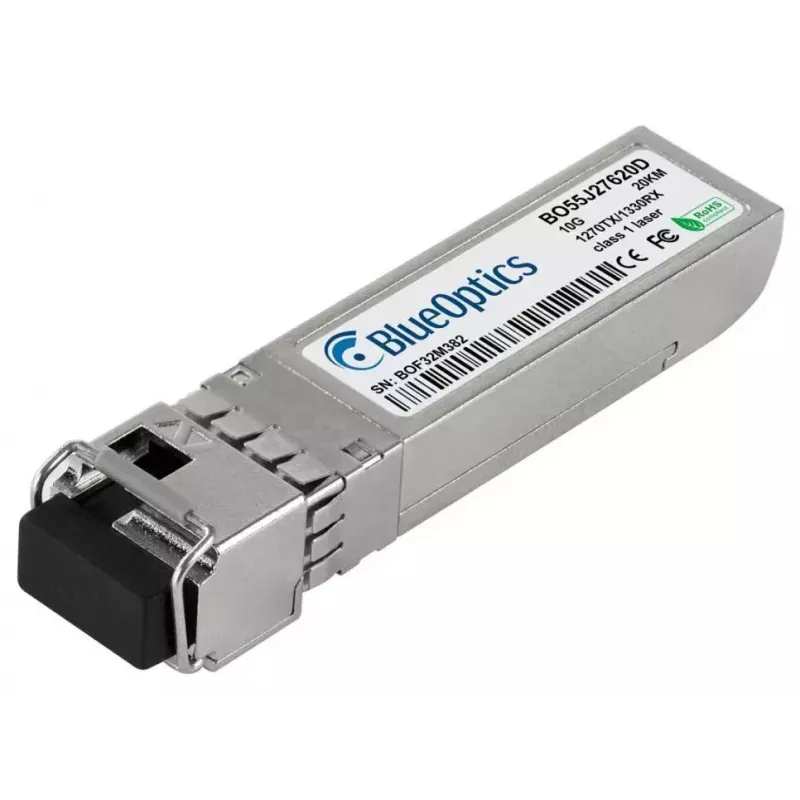

Módulo transceptor SFP+ BlueOptics 100-01903-BXU-20-BO 10000 Mbit/s 1310 nm

The BlueOptics 100-01903-BXU-20-BO SFP+ transceiver module provides 10 Gbit/s data transmission at a wavelength of 1310 nm in a compact SFP+ form factor. Designed for fiber optic links, the module supports single-mode connections with LC connector compatibility and a maximum reach of up to 10,000 m. Its low weight and standard electrical input make it suitable for integration into switches, routers and media converters that accept SFP+ modules.

Advantages

The module offers a high data rate of 10000 Mbit/s in a small SFP+ package, enabling dense port deployments while keeping power and space requirements low. Operation at 1310 nm provides a balance between reach and chromatic dispersion for long-distance single-mode links. The LC connector and silver housing ensure compatibility with common fiber cabling and standard rack equipment.

Suitable for

• 10 Gigabit Ethernet uplinks between switches and routers
• Long-distance single-mode fiber connections up to 10 km
• Integration into media converters and SFP+ compatible network devices
• Data center server and aggregation links requiring compact transceivers

Key specifications

• Maximum data transfer rate: 10000 Mbit/s
• Operating wavelength: 1310 nm
• Maximum transfer distance: 10000 m (single-mode fiber)
• Form factor: SFP+
• Connector type: LC
• Interface type: 10 Gigabit Ethernet
• Weight: 0.02 kg
• Typical supply voltage range: approx. 3.13 V to 3.47 V
• Housing colour: Silver

How to use

Ensure the host device supports SFP+ transceivers and 10 Gigabit Ethernet operation. With power to the host turned off or following the device manufacturer's hot-swap guidance, insert the BlueOptics SFP+ module into an available SFP+ port until it seats securely. Connect the LC-terminated single-mode fiber jumper to the transceiver, observing correct TX/RX orientation. After connection, verify link status and negotiated speed in the host device management interface; allow the device to initialize and report the module as ready.

Recommendations

Use single-mode fiber of appropriate specification for 1310 nm transmission and keep fiber connectors clean to maintain low insertion loss. Match transceiver parameters with the host device’s supported voltage and SFP+ compatibility list. For long runs, verify optical budget and perform optical power and link validation testing.
