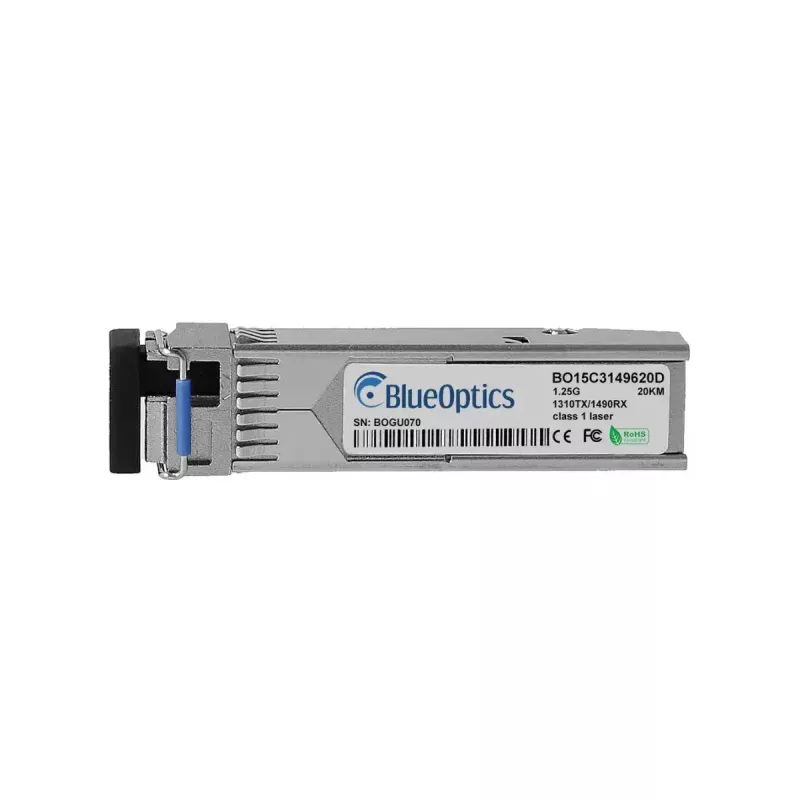

Módulo transceptor SFP BlueOptics 10057-BO 1250 Mbit/s fibra óptica

The BlueOptics 10057-BO is an SFP fiber optic transceiver module designed for use in network equipment that accepts SFP form factor modules. It supports a maximum data transfer rate of 1250 Mbit/s and is supplied in a silver housing with a compact, hot-pluggable design. With a stated mean time between failures (MTBF) of 1,000,000 hours and compliance with CE, FCC and RoHS directives, this module is intended for reliable optical uplinks and short- to medium-range fiber connections where a small, standardized transceiver is required.

Advantages

The BlueOptics 10057-BO offers a standardized SFP form factor that enables easy installation and hot-swap capability in compatible switches, routers and media converters. Its 1250 Mbit/s transfer capability matches common fiber link requirements for many access and distribution applications. The compact silver enclosure and low weight make it suitable for dense optical deployments while the high MTBF and regulatory compliance indicate robust lifecycle performance and adherence to safety and environmental standards.

Suitable for

• Optical uplinks between switches and routers
• Media converters and network interface modules
• Access and distribution layer fiber connections
• Small and medium enterprise LAN fiber segments

Key specifications

• Form factor: SFP (small form-factor pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Housing colour: silver
• Weight: 0.02 kg
• Mean time between failures (MTBF): 1,000,000 hours
• Regulatory compliance: CE, FCC, RoHS

How to use

Install the BlueOptics 10057-BO into any compatible SFP slot on a switch, router or media converter while the host device is powered according to the equipment manufacturer’s instructions. Ensure the fiber cable type and connector match the transceiver optics and clean connectors before mating to minimize signal loss. After insertion, verify link status and data rate in the host device management interface and monitor optical levels as required for your network design.

Recommendations

Use appropriate ESD protection when handling the module and keep the protective dust caps on the optical ports until cabling is ready. Match transceiver types and link parameters at both ends of the fiber link and consult the host equipment documentation for supported SFP modules and supported link configurations.
