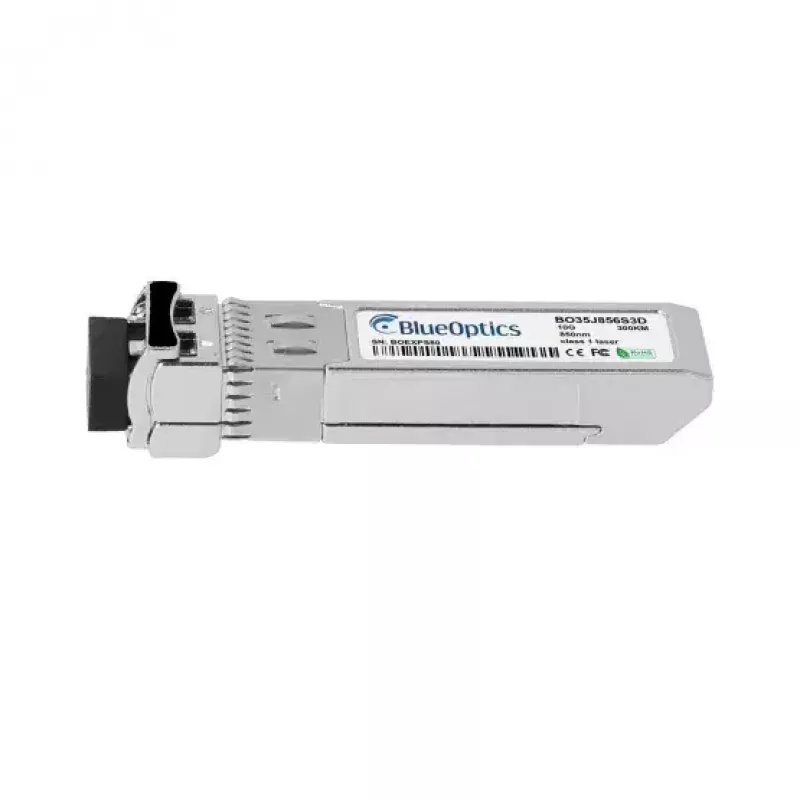

Módulo transceptor SFP+ BlueOptics 808-38600-BO 850 nm 300 m

The BlueOptics 808-38600-BO is an SFP+ transceiver module designed for short-range 10G optical links. It operates at an 850 nm wavelength over multimode fiber and supports data transmission distances up to 300 meters using an LC duplex fiber connector. The module is compact and lightweight (approx. 20 g) and complies with common SFP+ form-factor standards for interoperability with compatible networking equipment.

Advantages

This SFP+ transceiver offers a standardized electrical and mechanical interface for 10GBASE-SR applications, enabling straightforward installation in compatible SFP+ ports. The 850 nm multimode design provides low-latency optical transmission suitable for high-speed Ethernet and related protocols. The module's grey housing and compact dimensions allow easy handling and dense port deployment in switches and other network devices.

Suitable for

• Short-range 10 Gigabit Ethernet links over multimode fiber
• Interconnects between switches, routers and storage systems within a data center
• High-bandwidth server uplinks and aggregation ports
• Network upgrades requiring SFP+ compatible 10GBASE-SR transceivers

Key specifications

• Interface type: SFP+
• Wavelength: 850 nm
• Maximum transfer distance: up to 300 m over multimode fiber
• Connector type: LC duplex
• Colour: grey
• Weight: approx. 0.02 kg

How to use

Insert the BlueOptics SFP+ transceiver into a compatible SFP+ slot until it clicks into place, then secure any retention mechanism according to the host device instructions. Connect LC duplex multimode fiber patch cords, ensuring correct transmit/receive orientation. Verify link status and speed in the host device management interface. If digital diagnostic monitoring (DDM/DOM) is supported by the equipment, use the host tools to monitor module parameters such as temperature and optical power.

Recommendations

Use high-quality multimode fiber patch cords and, where possible, follow the host vendor’s compatibility list to ensure full interoperability. Keep connectors clean and protected when not in use, and verify that the DDM/DOM feature is supported by your hardware if remote diagnostics are required.
