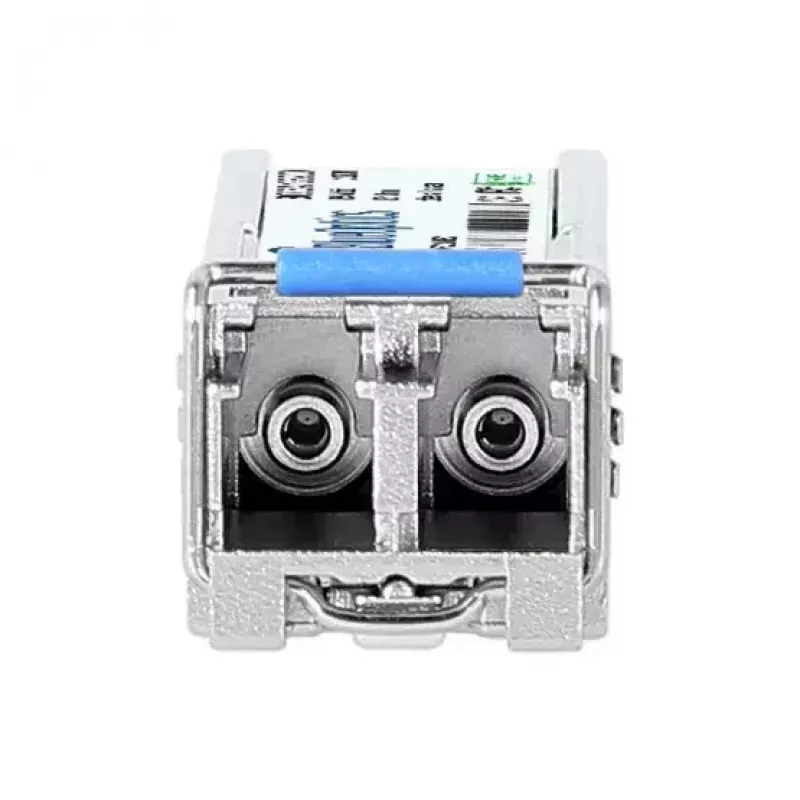

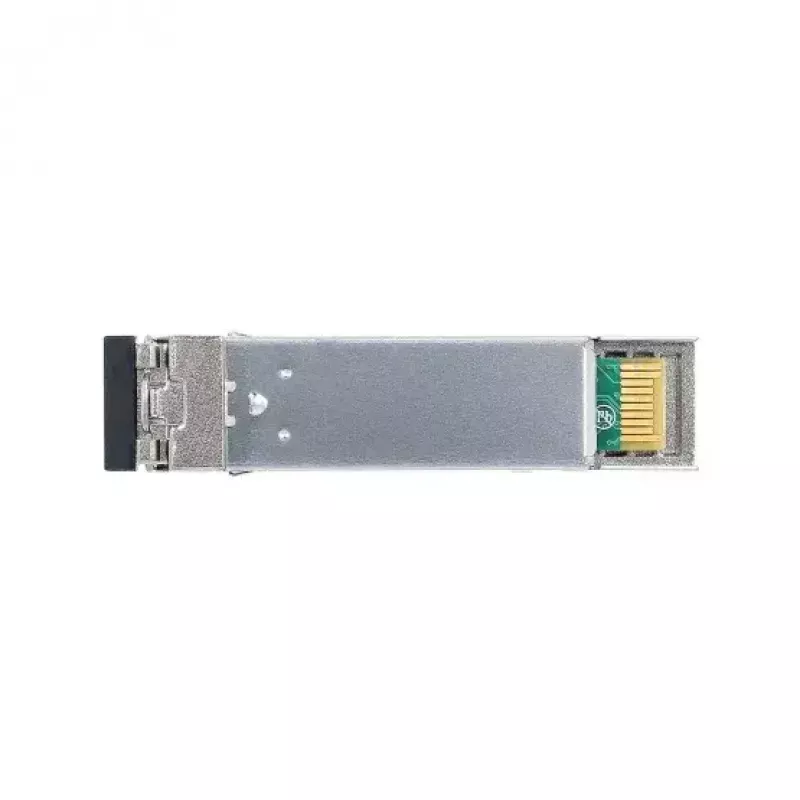

Módulo transceptor SFP BlueOptics AFCT-5760TPZ-BO 100 Mbit/s 1310 nm

The BlueOptics AFCT-5760TPZ-BO is an SFP fiber optic transceiver module designed for single-mode links with a nominal data rate of 100 Mbit/s and an optical wavelength of 1310 nm. Housed in a metallic case and powered from a 3.3 V supply, the module supports LC duplex connections and is built to meet CE, FCC and RoHS standards. With a published mean time between failures (MTBF) of 1,000,000 hours, it is intended for deployment in network equipment that accepts standard MSA-compliant SFP modules.

Advantages

The module combines a compact SFP form factor with a metallic housing for mechanical durability and thermal stability. Compliance with CE, FCC and RoHS ensures regulatory conformity and absence of restricted hazardous substances. The single-mode 1310 nm optical interface and LC duplex connector allow for cost-effective fiber links over longer distances compared with multimode alternatives, while the specified MTBF indicates a long operational lifetime suitable for continuous network operation.

Suitable for

• Point-to-point single-mode fiber connections up to typical 20 km ranges
• Integration into switches, routers and storage systems that accept MSA SFP transceivers
• Fiber links requiring 100BASE-LX Ethernet or comparable 100 Mbit/s optical interfaces

Key specifications

• Interface type: SFP (LC duplex)
• Maximum data transfer rate: 100 Mbit/s
• Operating wavelength: 1310 nm
• Power supply: 3.3 V input
• Housing: metallic
• Typical MTBF: 1,000,000 hours
• Product colour: metallic
• Weight: approximately 0.02 kg

How to use

Insert the BlueOptics AFCT-5760TPZ-BO into an available SFP slot on compatible network equipment following the host device manufacturer's hot‑swap and handling instructions. Connect an LC duplex single-mode patch cord between transceivers at each end of the link, observe correct transmitter/receiver polarity, and power the host device with the specified 3.3 V supply. Configure the device network settings (speed, duplex, and link protocols) as required by the equipment; the module operates transparently as a 100 Mbit/s optical interface. If the host supports digital diagnostics (DDM/DOM), enable or query these functions per the equipment documentation to monitor optical parameters.

Recommendations

Handle the transceiver according to ESD precautions, keep fiber connectors clean to ensure optimal optical performance, and verify compatibility with the host device firmware or vendor compatibility list before installation. For reliable 20 km links, use appropriate single-mode fiber and LC duplex patch cords and confirm that both ends use matching optical specifications (1310 nm single-mode). Regularly monitor link status and optical diagnostics where available.
