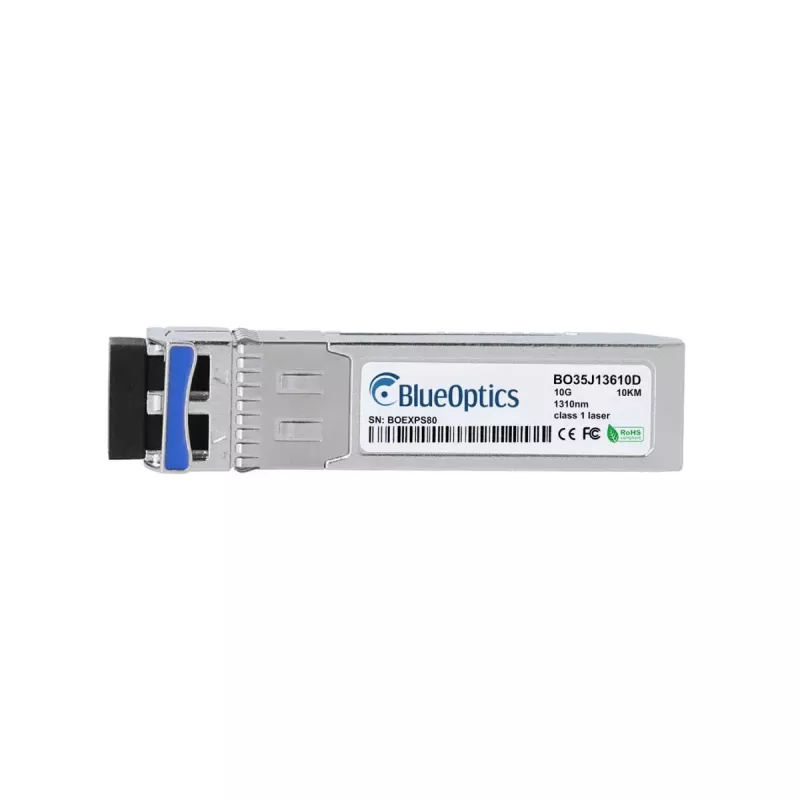

Módulo transceptor SFP+ BlueOptics AT-SP10LR20-BO 10000 Mbit/s

The BlueOptics AT-SP10LR20-BO is an SFP+ transceiver module designed for single-mode fiber optic links with support for data rates up to 10000 Mbit/s. The module implements the 10GBASE-LR transmission type with LC duplex connections and operates at a 1310 nm wavelength for both transmitter and receiver. Housed in a compact, lightweight silver enclosure (approx. 20 g), this transceiver is intended for use in equipment with SFP+ interfaces that support MSA-compliant 10G modules.

Advantages

The module provides stable 10 Gbit/s optical transmission over single-mode fiber and uses an LC duplex connector for simultaneous send and receive channels. Conformance to common MSA physical and electrical form factors ensures broad compatibility with network switches, routers and storage systems that accept SFP+ 10GBASE-LR modules. Built-in digital diagnostic capabilities (DDM/DOM compliant with MSA SFF-8472) enable real-time monitoring of operating parameters such as supply voltage, laser bias current, optical output/input power and temperature when the host hardware supports these features.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ slot on the switch, router or storage device, ensuring proper orientation and that the host platform supports 10GBASE-LR modules. Connect LC duplex single-mode fiber patch cords to the module’s transmit and receive ports, observing correct fiber polarity. Enable any required software or firmware settings on the host to recognize third-party transceivers if necessary. If digital diagnostics are needed, verify that the host device supports DDM/DOM to access real-time monitoring data.

Recommendations

Use single-mode LC duplex patch cords of appropriate quality and length for the intended reach; keep connector endfaces clean and inspect before insertion. Verify compatibility with the host device and, if available, perform an initial link test or request a sample to confirm operation in your specific hardware and software environment.
