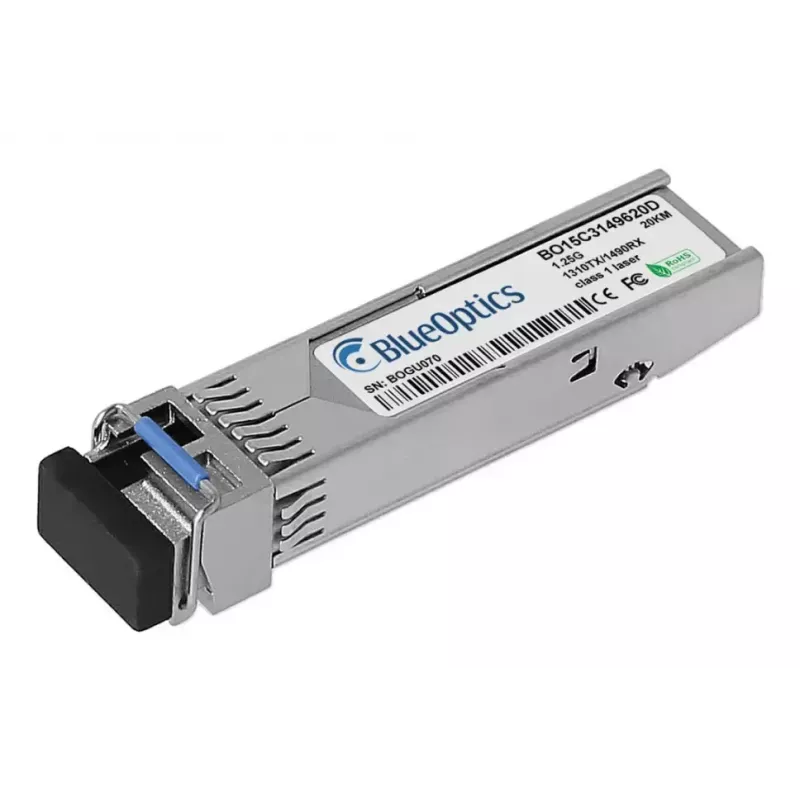

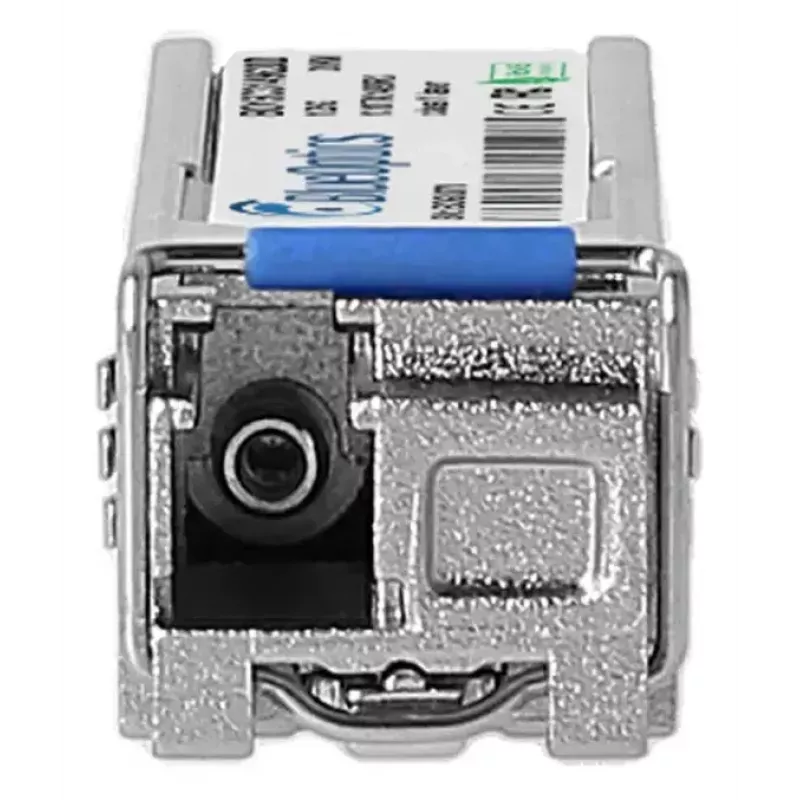

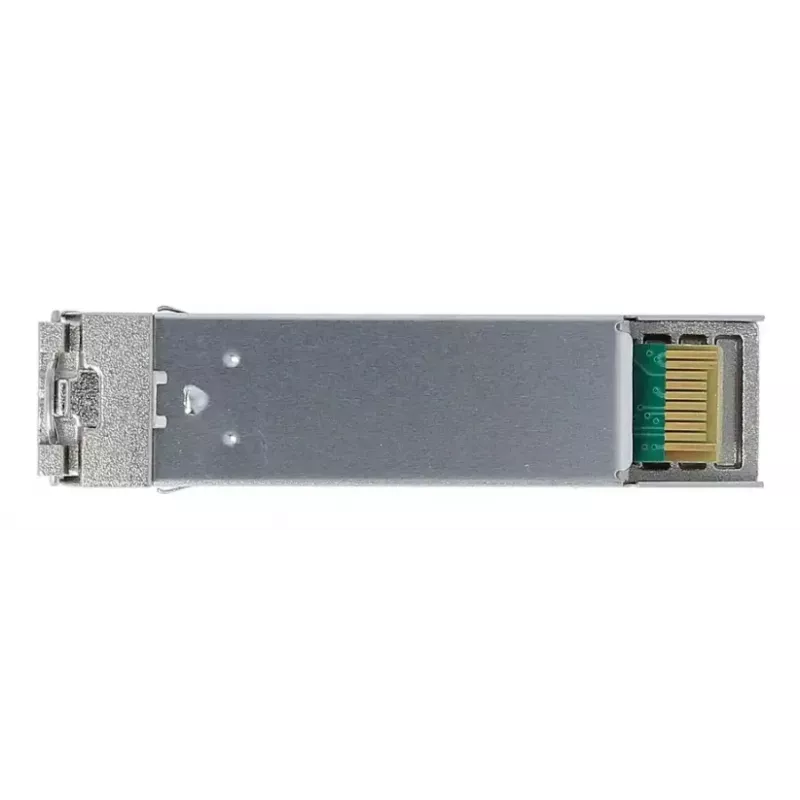

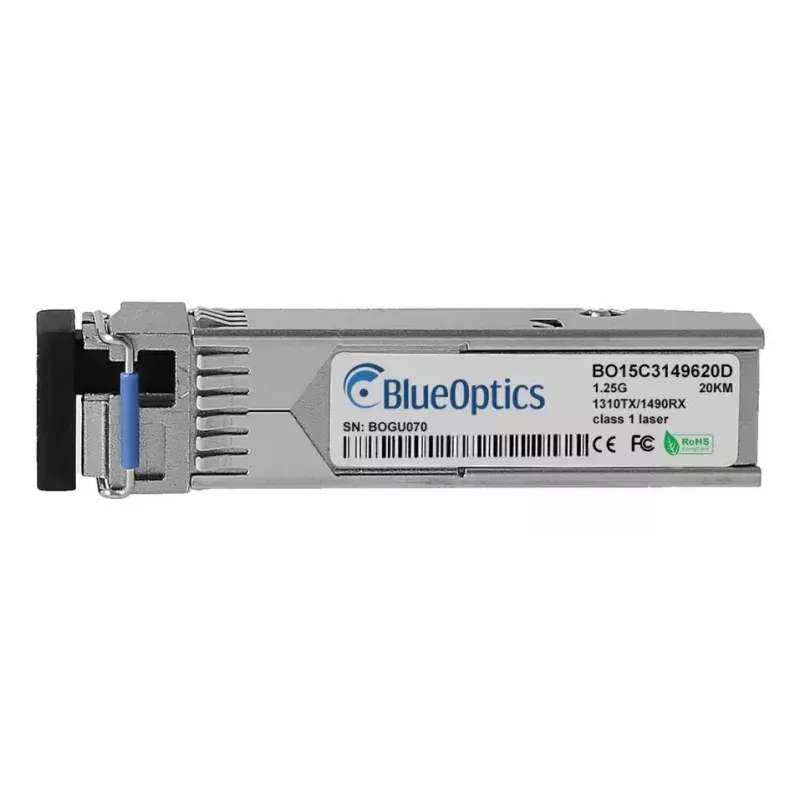

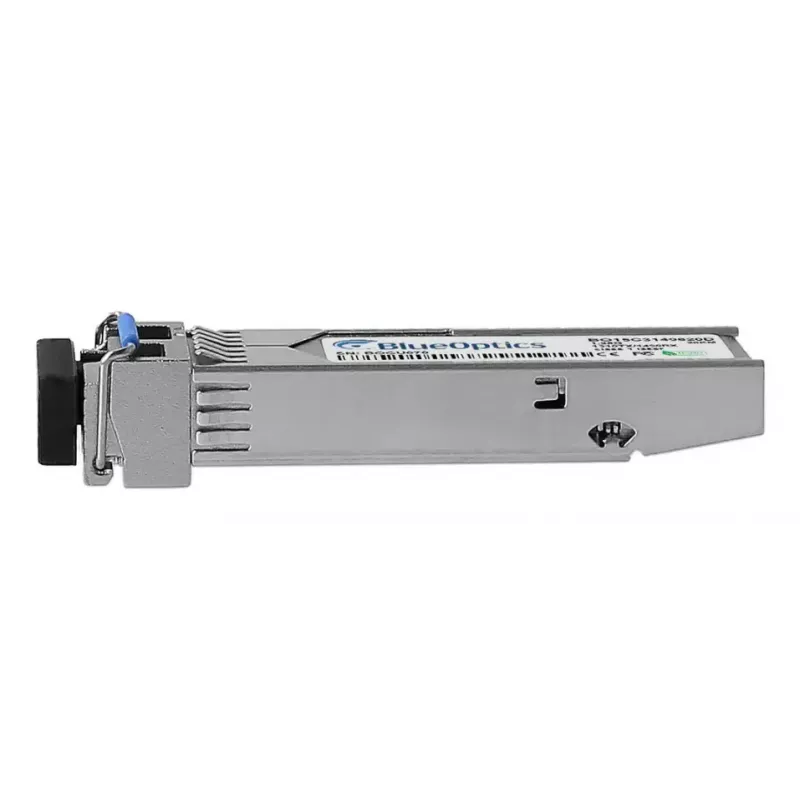

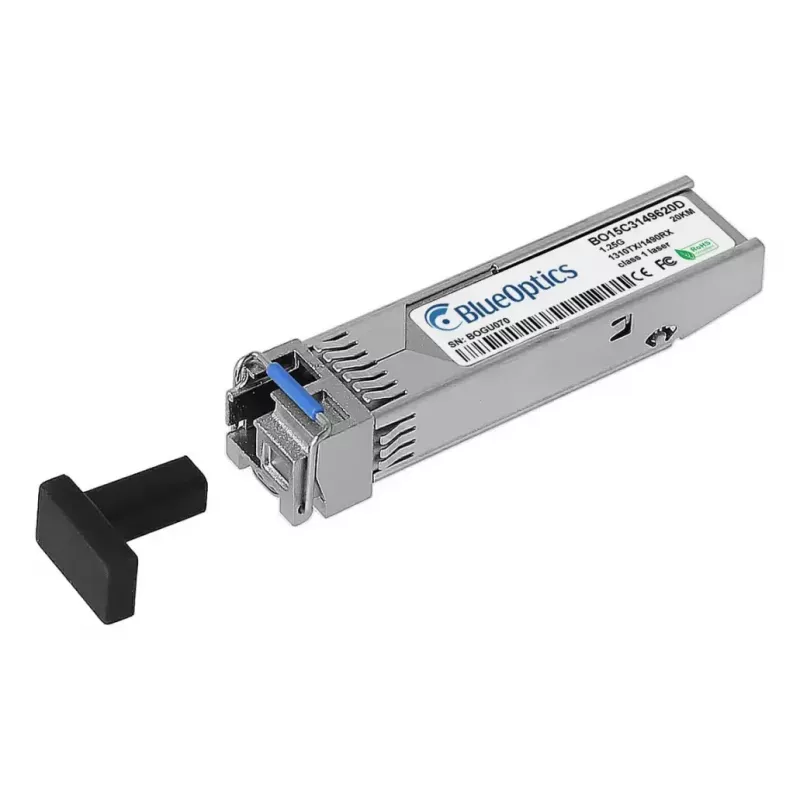

Módulo transceptor SFP BlueOptics BO15C3149640DIN 1250 Mbit/s fibra óptica

The BlueOptics BO15C3149640DIN is an SFP fiber optic transceiver module designed for 1.25 Gigabit Ethernet links with a maximum data transfer rate of 1250 Mbit/s. Housed in a silver SFP form factor and weighing approximately 20 g, this module supports single-mode fiber connections with an LC connector and a maximum optical reach of up to 40,000 metres. Certified to CE, FCC and RoHS standards and specified with an MTBF of 3,000,000 hours, the module is intended for integration into media converters, switches and network equipment that accept SFP pluggable transceivers.

Advantages

The module provides a standardized SFP form factor for hot-pluggable installation and replacement, allowing straightforward integration into compatible network ports. Support for LC fiber connectors and an extended reach makes it suitable for long-distance single-mode fiber links. Certifications for CE, FCC and RoHS and a high MTBF indicate conformity with regulatory requirements and an expected long operational lifetime, while the lightweight metal housing offers compact physical dimensions for dense equipment racks.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into an SFP slot on compatible network equipment until it latches. Connect the LC fiber cable ensuring correct polarity and secure connections at both ends. Once mechanically installed and connected, verify link status via the host device management interface or LED indicators. If the connected device requires specific configuration for the optical port (speed, duplex, or media settings), apply those settings according to the equipment manual. For safe handling, avoid touching the fiber endfaces and use protective dust caps when the transceiver is not connected.

Recommendations

Use single-mode LC fiber with appropriate attenuation and link budget planning for distances up to 40 km. Inspect and clean fiber connectors before installation to maintain signal integrity. Store spare modules in anti-static packaging and avoid exposure to excessive mechanical shock or moisture.
