Módulo transceptor SFP+ BlueOptics H-BR20A-SFP+D-BO 10000 Mbit/s

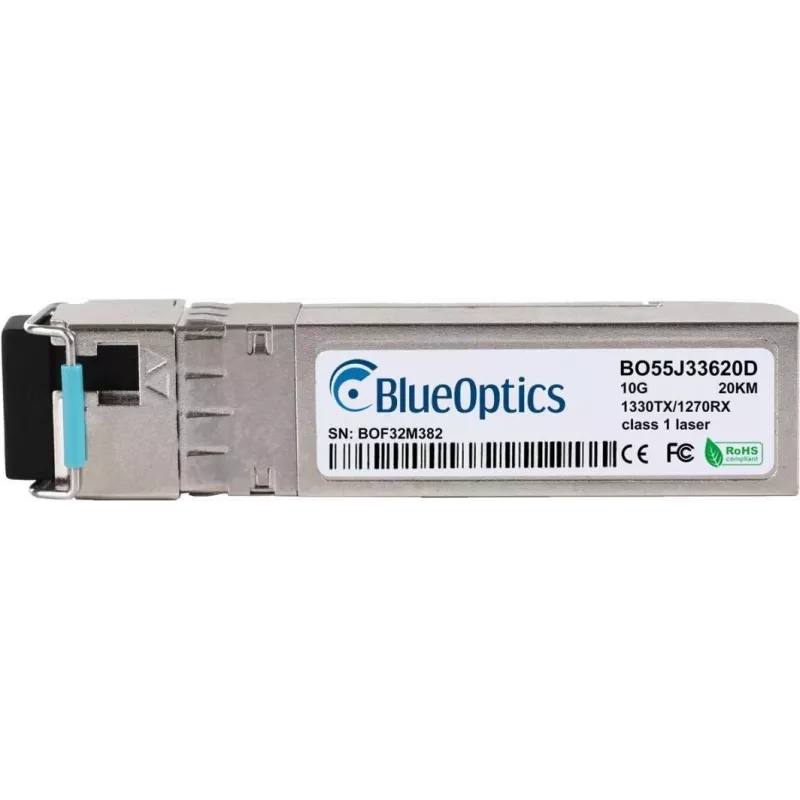

The BlueOptics H-BR20A-SFP+D-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s networks. Housed in metal and rated for 3.3 V operation, this compact module weighs approximately 20 g and provides LC simplex connectivity following MSA standards. The transceiver implements a bidirectional 10GBASE-BX-D link with separate transmit and receive wavelengths (transmit ~1330 nm, receive ~1270 nm) over single-fiber links and supports Digital Diagnostics Monitoring (DDM/DOM) for real-time reporting of supply voltage, laser current, optical power and temperature.

Advantages

The module combines industry-standard MSA mechanical compatibility with high-quality components to ensure long service life and stable operation. Metal housing provides mechanical robustness and thermal dissipation, while the 10 Gbit/s data rate and LC simplex interface enable high-speed optical connections with low latency. Integrated DDM/DOM simplifies monitoring and troubleshooting of fiber links when supported by host hardware.

Suitable for

Key specifications

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on your switch, router or other optical networking hardware until the module latches. Connect an LC simplex fiber patch cable between this transceiver and the matching remote transceiver or patch panel. Ensure the host device supports 10GBASE-BX-D and, if you require diagnostics, that the hardware supports DDM/DOM. Power is supplied from the host via the 3.3 V interface; no external power source is required. After insertion, verify link status in the host management interface and confirm optical power and diagnostic readings if available.

Recommendations

Use high-quality single-mode fiber and LC simplex patch cables matched to the module's link budget and wavelengths. Observe ESD precautions when handling the transceiver, keep dust caps on when not in use, and verify that the host device firmware supports third-party SFP+ modules for full functionality of DDM/DOM features.
