Módulo transceptor SFP BlueOptics H-BX40-SFP/A-D-BO 1250 Mbit/s

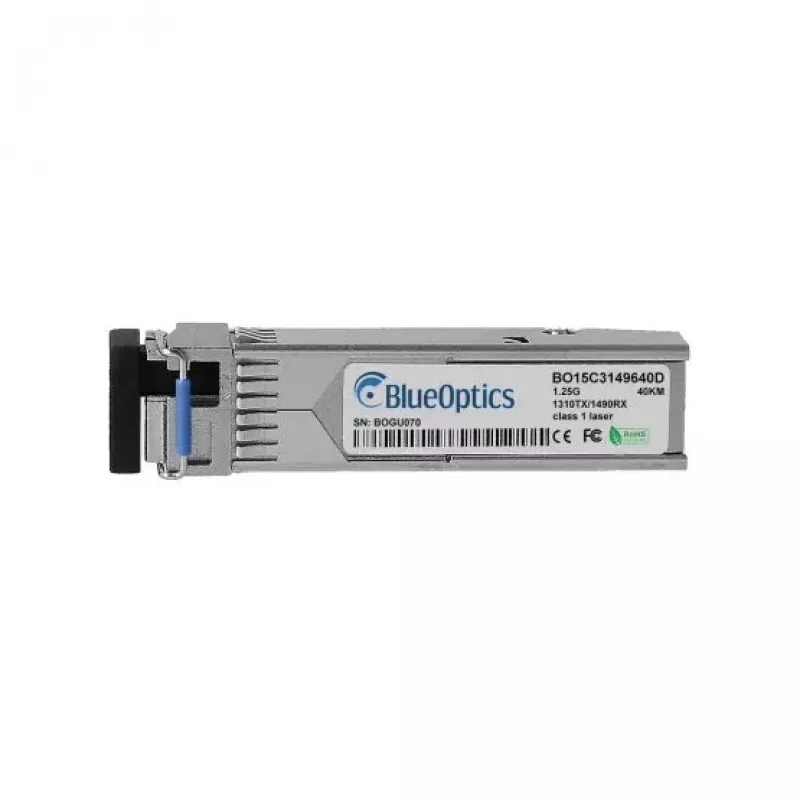

The BlueOptics H-BX40-SFP/A-D-BO is an SFP fiber optic transceiver module designed for single-mode optical links with a maximum data transfer rate of 1250 Mbit/s. Housed in a durable metal casing and operating at a nominal 3.3 V input, this compact silver module weighs approximately 20 g and provides a standardized SFP interface compatible with MSA-compliant ports. It supports duplex optical communication via an LC simplex connection and is suitable for integration into switches, routers and other network devices that accept SFP modules.

Advantages

The metal housing offers mechanical stability and heat dissipation while the SFP form factor ensures wide compatibility with networking hardware. With a 1250 Mbit/s maximum rate and 3.3 V operation, the module fits common Gigabit and 1.25G applications. The compact, lightweight design simplifies installation and replacement, and the standardized LC simplex connector supports established single-mode fiber cabling practices.

Suitable for

Key specifications

How to use

Power off or place the host device into an appropriate maintenance mode if recommended by the equipment manufacturer before inserting the transceiver. Align the SFP module with the host SFP cage and gently slide it into the port until it seats and latches. Connect an LC simplex single-mode fiber patch cable to the optical port, observing transmitter and receiver orientation if specified. After installation, verify link status and data transmission through the host device management interface or LED indicators. To remove, disengage the latch and carefully pull the module straight out.

Recommendations

Handle the optical connector endfaces with care and use protective caps when the transceiver is not connected. Avoid touching the optical surfaces, and clean connectors with approved fiber cleaning tools if required. Ensure compatibility with the host device’s supported transceiver types and firmware guidelines before deployment.
