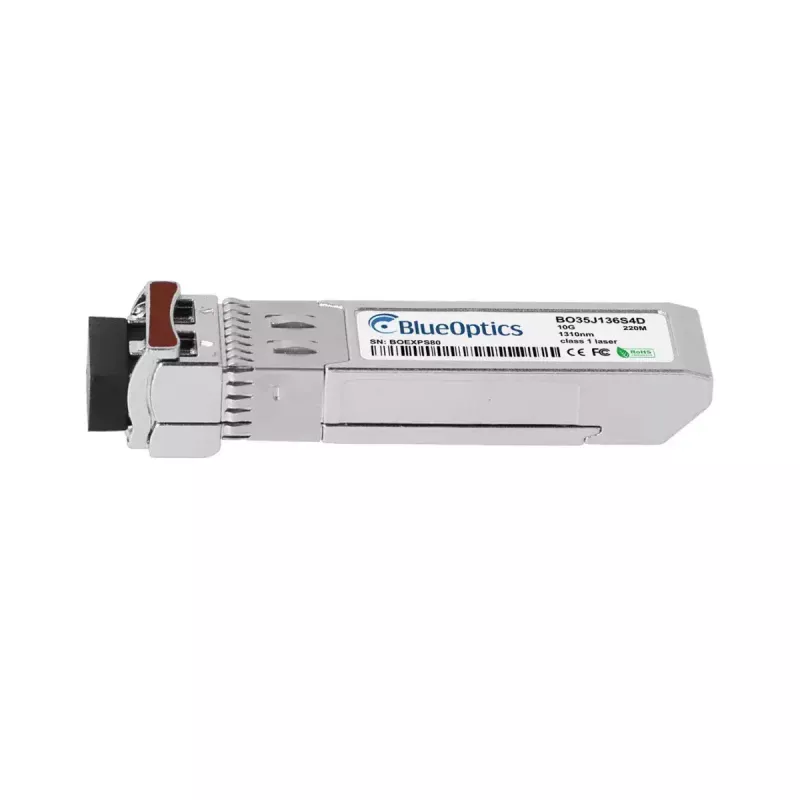

Módulo transceptor SFP+ BlueOptics OPVXG-SFP-PLUS-LRM-BO 10000 Mbit/s

The BlueOptics OPVXG-SFP-PLUS-LRM-BO is an SFP+ fiber optic transceiver module designed for 10 Gbit/s network links. It implements the 10GBASE-LRM optical specification and uses an LC duplex connector for multimode fiber transmission. The module supports both transmitting and receiving at 1310 nm and is supplied in a silver housing with a compact SFP+ form factor and a product weight of approximately 20 g. With a mean time between failures (MTBF) of 3,000,000 hours, it is intended to provide reliable operation in equipment that accepts MSA‑compliant SFP+ modules.

Advantages

The module offers a standardized SFP+ form factor for broad compatibility with switches, routers, storage systems and compatible test and measurement devices. Its 10 Gbit/s maximum data rate and 1310 nm transmit/receive pair are suitable for short‑reach multimode fiber links under the 10GBASE-LRM specification. The compact, hot‑pluggable design and silver housing support straightforward installation and handling, while the high MTBF contributes to continuous operation in active network environments.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP+ module into an MSA‑compliant SFP+ port on the target device while the device is powered according to the host manufacturer’s guidelines for hot‑pluggable transceivers. Connect LC duplex multimode fiber patch cords to the module’s ports, observing correct polarity for transmit and receive channels. Configure the network device’s port settings as required for 10GBASE‑LRM operation and verify link status through the host device’s management interface. When required, remove the module by releasing the transceiver latch before pulling it from the port and protect the optical interfaces with dust caps when not connected.

Recommendations

Use clean, properly rated multimode fiber and certified LC patch cords to maintain signal quality; follow the host hardware vendor’s compatibility list and operational guidelines when deploying third‑party SFP+ modules.
