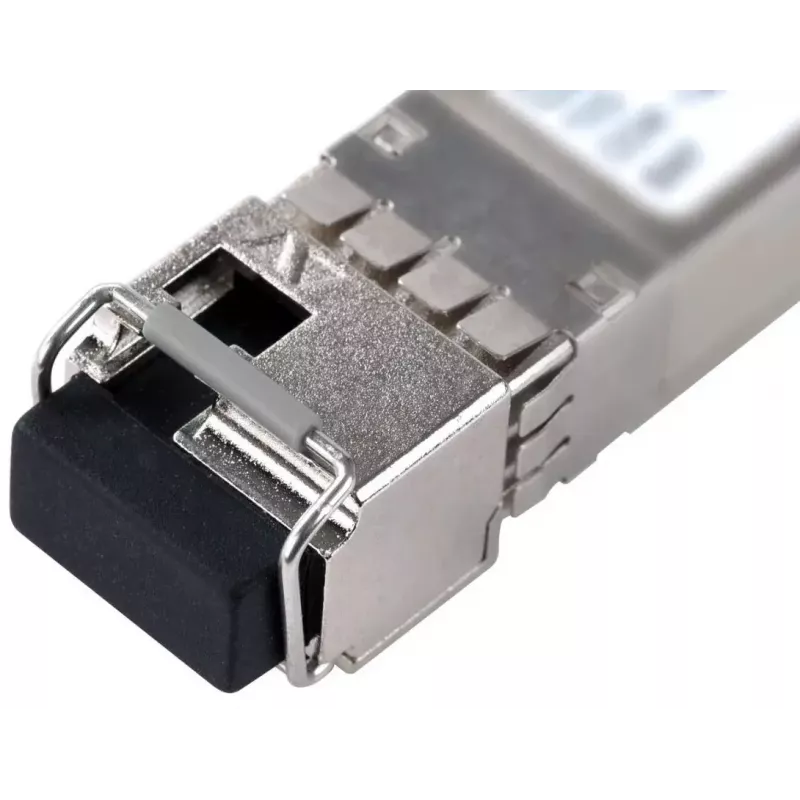

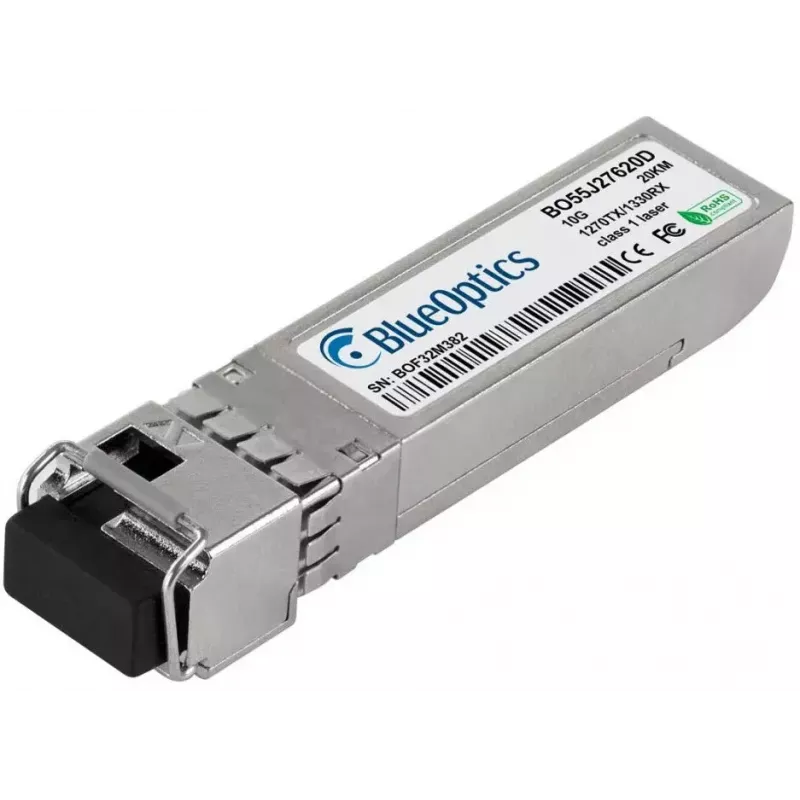

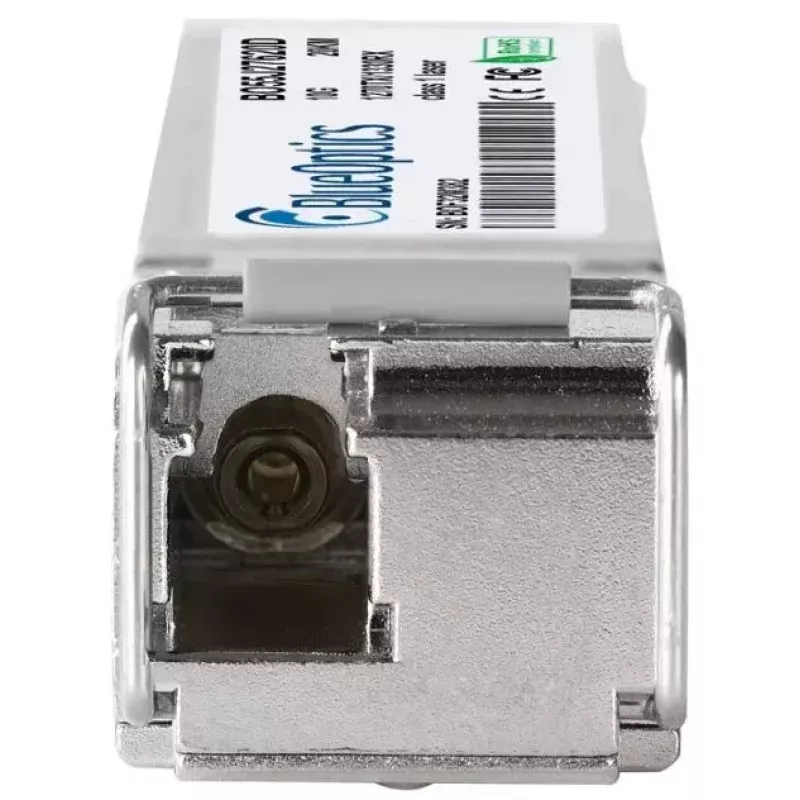

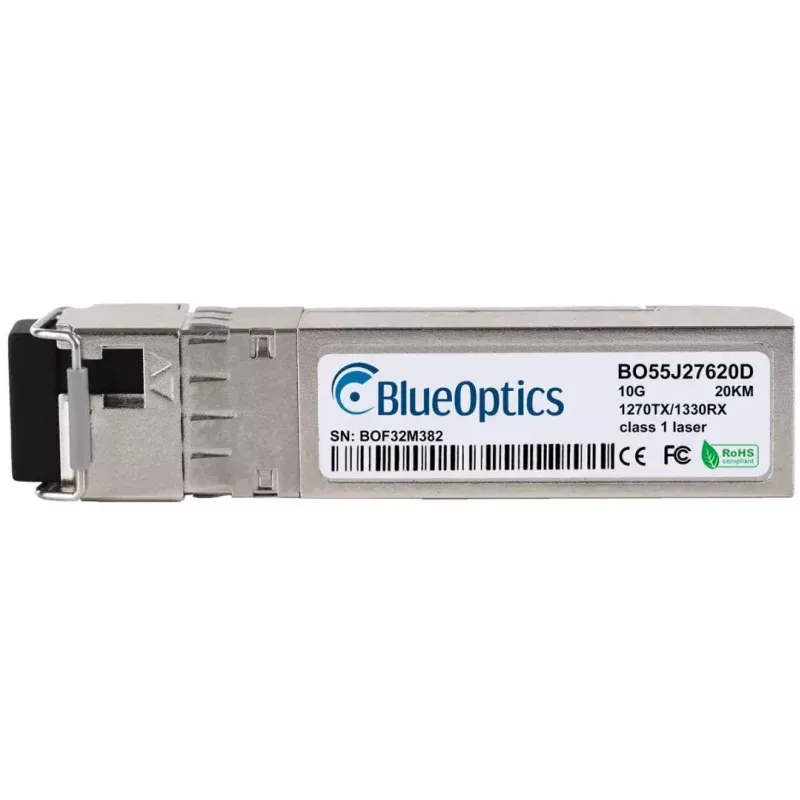

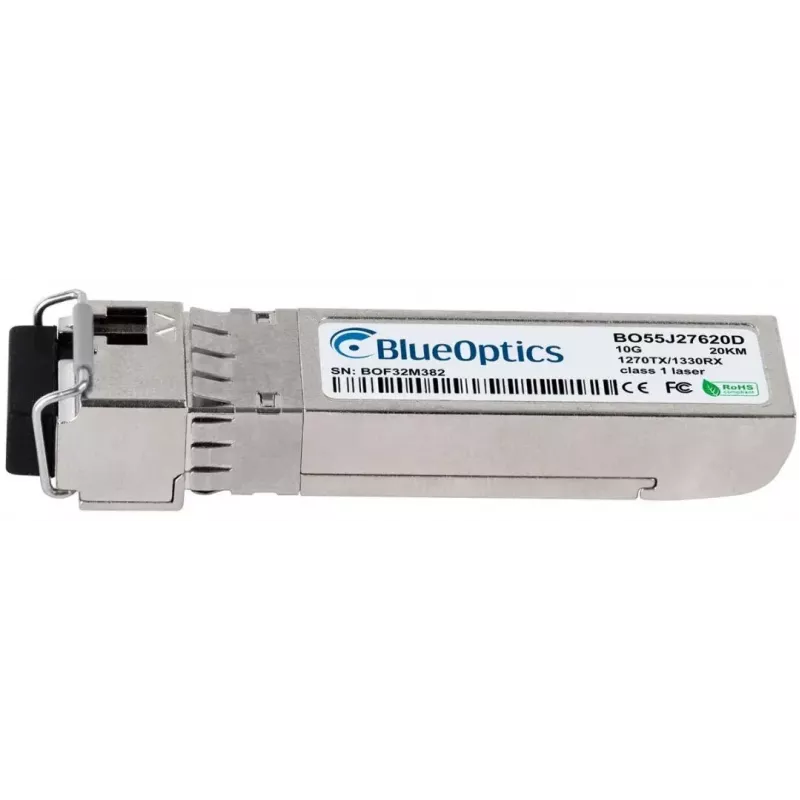

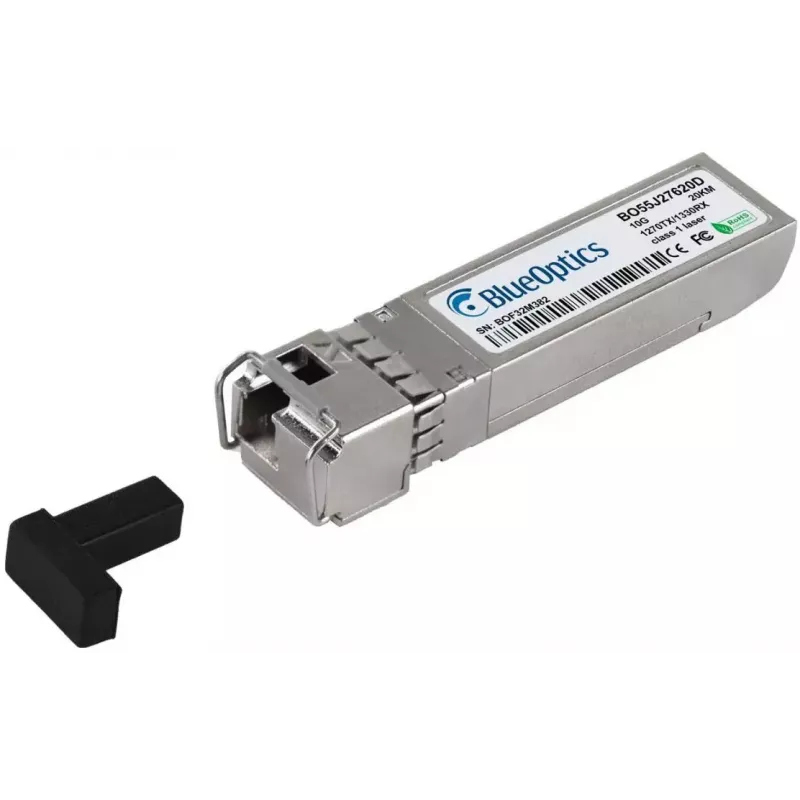

Módulo transceptor SFP BlueOptics SFP-10G-BX-U-20-LE-BO 10000 Mbit/s SFP+

The BlueOptics SFP-10G-BX-U-20-LE-BO 10000 Mbit/s SFP+ is a single-mode fiber optic transceiver module designed for high-speed data transmission in networking equipment. Housed in a metal enclosure and weighing 20 g, this SFP+ module supports up to 10 000 Mbit/s over LC connectorized fiber and is specified for long-distance links up to 20 000 metres. It implements bidirectional (BIDI) single-fiber operation to maximize bandwidth per fiber and is compatible with standard 10 Gigabit Ethernet applications and other high-speed protocols.

Advantages

The module offers a compact SFP+ form factor with metal housing that provides physical durability and reliable thermal performance. BIDI operation allows transmit and receive channels on separate wavelengths over a single fiber, enabling bandwidth expansion without laying additional fiber. Support for digital diagnostics (DDM/DOM) gives real-time monitoring of supply voltage, laser bias current, optical output/input power and temperature to simplify troubleshooting and network maintenance. The design follows industry MSA specifications for interoperability with standard switches, routers and transceivers.

Suitable for

Key specifications

How to use

Install the SFP+ transceiver into a compatible SFP+ slot on a switch, router or media converter until it latches. Connect an LC-terminated single-mode fiber cable using appropriate transmit/receive orientation for bidirectional operation. Verify link status on the network device and consult the device interface for DDM/DOM readings if available. For safe handling, avoid touching the optical interfaces and protect transceiver ports with dust caps when not connected. Follow the host equipment documentation for hot-plugging and supported link modes.

Recommendations

Use single-mode fiber certified for the target distances and inspect fiber connectors before mating. When deploying bidirectional modules, ensure matching wavelength pairs are used on the opposite end and that both transceivers support the same data rate and protocol. Monitor DDM values to detect early signs of signal degradation and plan maintenance accordingly.
