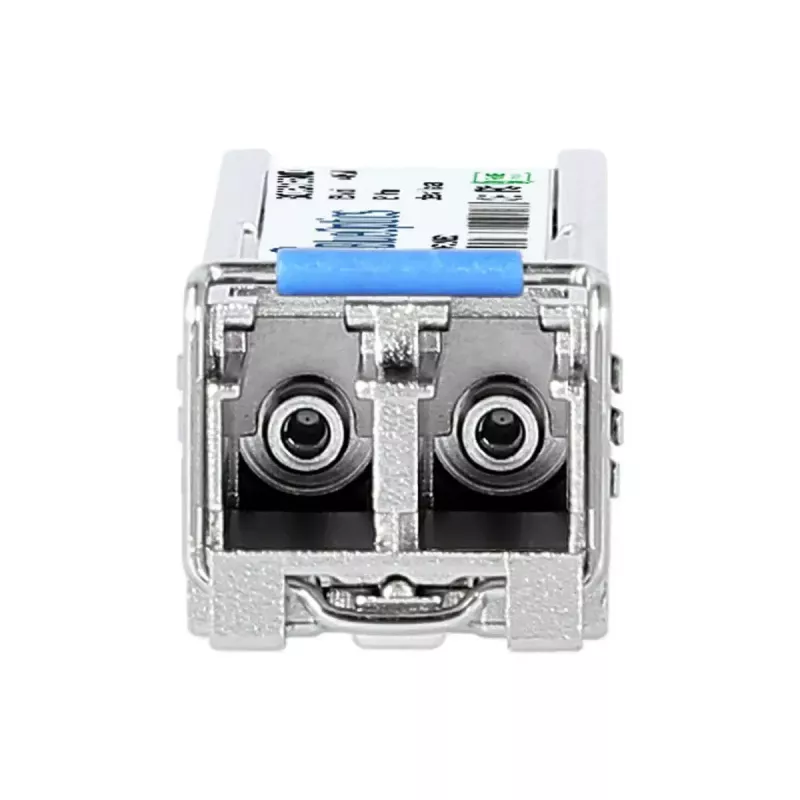

Módulo transceptor SFP BlueOptics SFP100SM30-W-BO 155 Mbit/s 1310 nm

The BlueOptics SFP100SM30-W-BO is a single-mode fiber SFP transceiver module designed for 100BASE-LH applications with a maximum data rate of 155 Mbit/s and an operating wavelength of 1310 nm. The module uses an LC duplex optical interface and a metal housing, and it operates at a 3.3 V input voltage while weighing approximately 3 g. It supports transmission distances up to around 40 km over single-mode fiber and is compatible with hardware that follows MSA SFP form-factor standards.

Advantages

The module delivers stable optical links with low susceptibility to electromagnetic interference thanks to fiber transmission and an LC duplex connector that supports simultaneous transmit and receive channels. Its metal casing provides mechanical robustness and improved thermal performance. The transceiver is manufactured to MSA standards and is compatible with a wide range of network switches, routers and storage systems that accept SFP 100BASE-LH modules. The compact, lightweight design simplifies installation and replacement in dense networking environments.

Suitable for

• Long-distance Ethernet links over single-mode fiber (up to ~40 km)
• Interconnects between switches, routers and optical patch panels
• Fibre Channel over Ethernet or SDH/SONET applications up to 155 Mbit/s
• Network equipment upgrades or replacement of failed SFP modules

Key specifications

• Interface type: SFP (LC duplex)
• Maximum data transfer rate: 155 Mbit/s
• Wavelength: 1310 nm (transmit and receive)
• Media: single-mode fiber
• Operating voltage: 3.3 V
• Housing: metal
• Typical range: up to approximately 40 km (depending on fiber and link budget)
• Weight: ~0.003 kg
• Supports digital diagnostics monitoring (DDM/DOM) where host hardware provides support

How to use

Install the BlueOptics SFP100SM30-W-BO by inserting the module into an SFP slot on compatible network equipment until it latches. Connect LC duplex single-mode fiber patch cords to the module’s transmit and receive ports, observing correct TX/RX orientation. Ensure the host device is configured for the intended Ethernet or protocol settings and that the SFP slot supports 100BASE-LH operation. If the host supports DDM/DOM, monitor supply voltage, laser bias current, transmit power, receive power and temperature through the management interface for link diagnostics.

Recommendations

Use single-mode LC duplex fiber with appropriate attenuation and connector cleanliness for optimal performance. Verify host compatibility for DDM/DOM if remote diagnostics are required. Store unused modules in anti-static packaging and follow ESD precautions during installation and removal.
