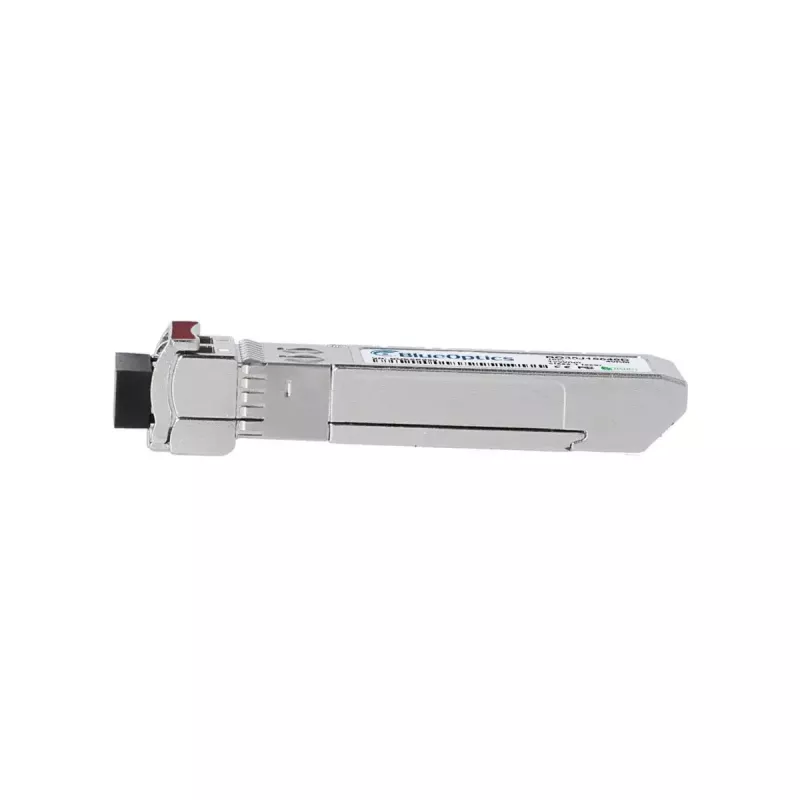

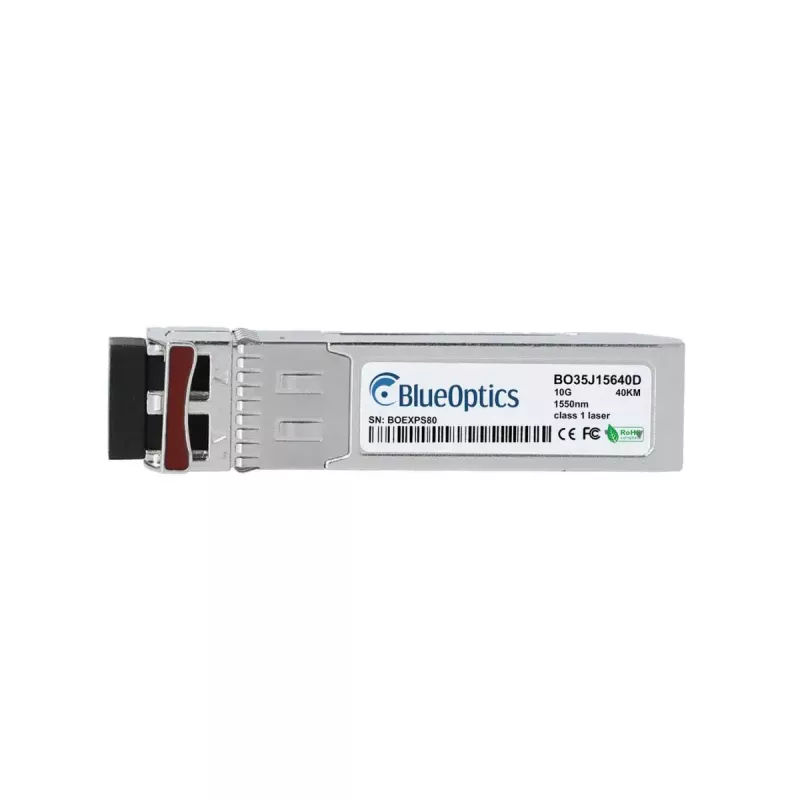

Módulo transceptor SFP+ BlueOptics TN-SFP-10G-ER-BO 10000 Mbit/s 1550 nm

The BlueOptics TN-SFP-10G-ER-BO is an SFP+ fiber optic transceiver module designed for 10GBASE-ER applications. It supports a maximum data rate of 10000 Mbit/s over single-mode fiber at a wavelength of 1550 nm and uses an LC duplex optical connector. The module is housed in a durable metal casing, operates from a 3.3 V input, and has a compact, lightweight form factor suitable for high-density network equipment.

Advantages

This transceiver offers long-reach single-mode transmission compliant with MSA SFP+ mechanical and electrical standards, enabling interoperability with a wide range of networking hardware. The metal housing provides mechanical stability and thermal dissipation while the standardized LC duplex interface supports simultaneous transmit and receive channels. Built to industry component selection practices, the module includes digital diagnostic monitoring (DDM/DOM) capability for real-time operational parameters, which simplifies remote monitoring and troubleshooting.

Suitable for

Key specifications

How to use

Install the BlueOptics TN-SFP-10G-ER-BO into any SFP+ slot on compatible network equipment while the device is powered down or following the host vendor's hot-plug guidelines. Connect LC duplex single-mode fiber patch cords with appropriate polarity to the transmit and receive ports. Verify link status on the host device and, if supported, read real-time diagnostics via the DDM/DOM interface to monitor supply voltage, laser bias current, transmitted and received optical power and module temperature. Ensure the host system officially supports SFP+ 10GBASE-ER modules for proper negotiation and operation.

Recommendations

Use single-mode fiber with suitable attenuation characteristics and industry-standard LC duplex patch cords to achieve the specified range. Confirm DDM/DOM support in the host device to enable remote diagnostics. For stable long-term operation, avoid exposing the module to extreme mechanical stress or temperatures beyond the host equipment specifications and follow the manufacturer's ESD handling procedures when inserting or removing the transceiver.
