Módulo transceptor SFP de fibra óptica BlueOptics NPA0012-V701-BO LC aluminio 20g

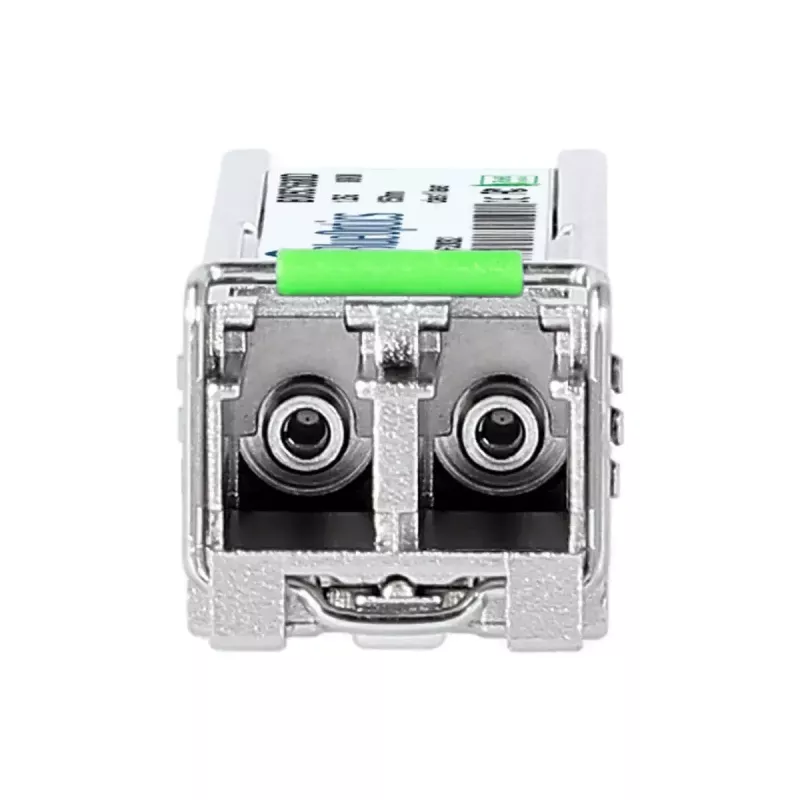

The BlueOptics NPA0012-V701-BO is an SFP fiber optic transceiver module designed for single-mode links with an LC duplex connector. Constructed with an aluminium housing and weighing approximately 20 g, the module follows MSA form-factor standards and supports 1000BASE-ZX transmission for long-reach optical connections. It integrates transmit and receive lasers at 1550 nm and is suitable for Ethernet, Fibre Channel over Ethernet or SDH/SONET applications up to 1.25 Gbit/s and distances up to around 80 km when used with appropriate single-mode fiber.

Advantages

The module provides a compact, standardized SFP interface for easy hot-pluggable installation in compatible network equipment. Its aluminium housing offers mechanical durability and thermal dissipation while the LC connector supports duplex optical links. Designed to comply with common MSA and 1000BASE-ZX specifications, the transceiver includes digital diagnostics (DDM/DOM) capabilities for real-time monitoring of supply voltage, laser bias current, transmit power, receive power and temperature when supported by host hardware.

Suitable for

Key specifications

How to use

Install the BlueOptics SFP transceiver into a compatible SFP port on your switch, router or storage device with the equipment powered down or following the vendor's hot-swap procedure. Connect LC duplex single-mode patch cords to the module's LC connector, ensuring correct transmit-to-receive alignment between ends. Configure the host interface for 1000BASE-ZX operation if manual settings are required and verify link status through the device management interface. If DDM/DOM monitoring is needed, enable or query diagnostic registers from the host platform when supported.

Recommendations

The best optical performance is achieved with clean connectors, proper single-mode fiber (ITU-T G.652 or similar), and well-managed optical budgets. Avoid bending fibers beyond their minimum bend radius, use compatible LC patch cords and patch panels, and ensure host hardware supports the 1000BASE-ZX SFP to access full functionality and diagnostics.
