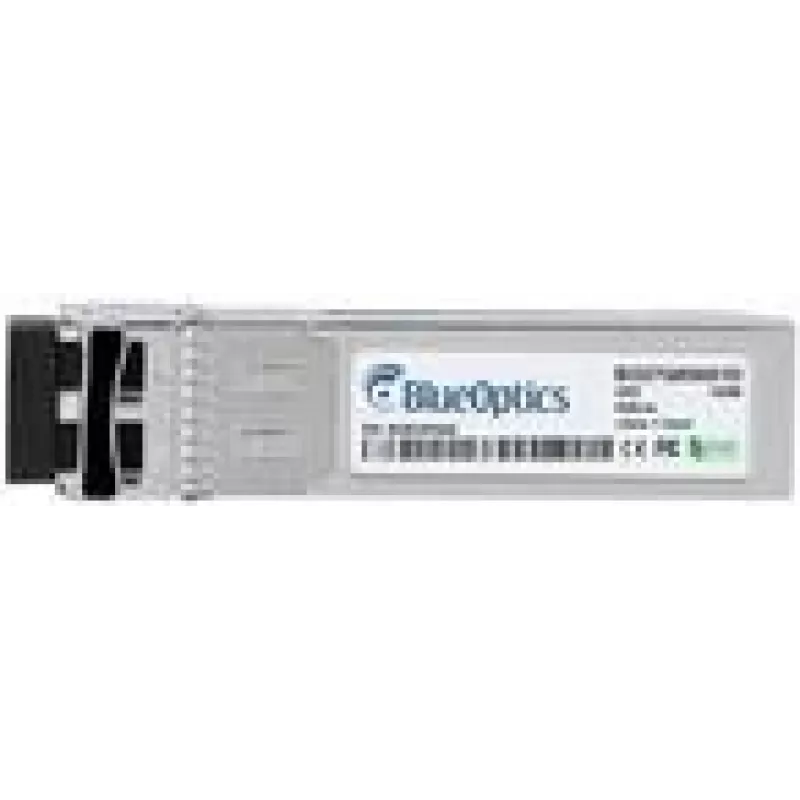

Módulo transceptor SFP28 BlueOptics 02313BJK-BO 25000 Mbit/s

The BlueOptics 02313BJK-BO SFP28 transceiver module provides a compact interface for high-speed fiber connections. Designed in an SFP28 form factor and finished in silver, this module supports a maximum data transfer rate of 25000 Mbit/s and a maximum link distance of 100 m. With an LC (UPC) fiber connector and a low weight of 20 g, it is suitable for dense port deployments and upgrades where space and power efficiency are important. The product is specified with a mean time between failures (MTBF) of 1,000,000 hours, indicating suitability for continuous network operation.

Advantages

The module supports 25 Gbit/s class data rates while remaining compatible with standard SFP28 slots, offering a balance between high throughput and compact form factor. Its LC (UPC) connector provides reliable single-mode or multimode fiber termination depending on the cable used. The 20 g weight and silver housing simplify installation in crowded racks and modular systems. A high MTBF figure reflects expected operational reliability for enterprise and data center environments.

Suitable for

• High-speed uplinks in data centers and server rooms
• Switch-to-switch or switch-to-server connections
• Network upgrades to 25 Gbit/s link segments
• Environments requiring compact SFP28 modules with LC (UPC) connectors

Key specifications

• Maximum data transfer rate: 25000 Mbit/s
• Maximum transfer distance: 100 m
• Form factor: SFP28
• Ethernet interface type: 2.5 Gigabit Ethernet
• Fiber optic connector: LC (UPC)
• Product colour: Silver
• Weight: 0.02 kg
• Reliability: MTBF 1,000,000 hours

How to use

Ensure the host device supports SFP28 transceivers and the intended data rate. Power down or follow hot-swap procedures recommended by the host before inserting the module into an SFP28 slot. Connect the appropriate LC (UPC) fiber patch cord, observing correct polarity and connector cleanliness. After insertion and connection, verify link status and configure network settings on the host device as required for 25 Gbit/s operation. Follow manufacturer guidance for firmware or driver compatibility if applicable.

Recommendations

Maintain clean LC connector end faces and use dust caps when the module is not connected. Use fiber patch cords rated for the required distance and fiber type. Observe ESD precautions during handling and avoid excessive force when inserting or removing the module to preserve the SFP28 cage and optical interface.
