Módulo WWAN M.2 Lenovo ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 para X1 Carbon Gen 12 / P16v Gen 2 (42×30×2,3 mm)

The WWAN M.2 Module Lenovo ThinkPad Quectel EM160R-GL 4G LTE-A Cat 16 is an internal mobile broadband card designed for select Lenovo ThinkPad laptops. The compact 42×30×2.3 mm M.2 form factor installs into a compatible M.2 WWAN slot to provide cellular data connectivity where Wi‑Fi is unavailable. This module supports LTE-A Category 16 speeds and is intended for models such as the X1 Carbon Gen 12 and P16v Gen 2. The unit is supplied unpacked and is suitable for users who require reliable mobile broadband and roaming capability in professional environments.

Advantages

The module enables high-speed 4G LTE-A Cat 16 cellular connectivity directly from the laptop without external dongles. Its M.2 42×30×2.3 mm form factor is compact and designed to fit factory WWAN slots on supported ThinkPad models. The internal design preserves the laptop’s portability and provides consistent performance for tasks that depend on mobile data. Lenovo compatibility and the specified MPN and EAN help ensure the correct part for supported systems.

Suitable for

• Business users who need persistent mobile broadband for travel and field work
• Remote access and VPN usage in areas without reliable Wi‑Fi
• On-the-go internet access for cloud services and email
• Replacement or upgrade of existing WWAN modules in compatible ThinkPad models

Key specifications

• Model: Quectel EM160R-GL (Lenovo WWAN M.2 Module)
• Form factor: M.2 42×30×2.3 mm
• Cellular: 4G LTE-A, Category 16
• Compatibility: Lenovo ThinkPad X1 Carbon Gen 12, P16v Gen 2 (factory WWAN slot required)
• Manufacturer part number (MPN): 4XC1Q24436SO
• EAN: 2000001329139

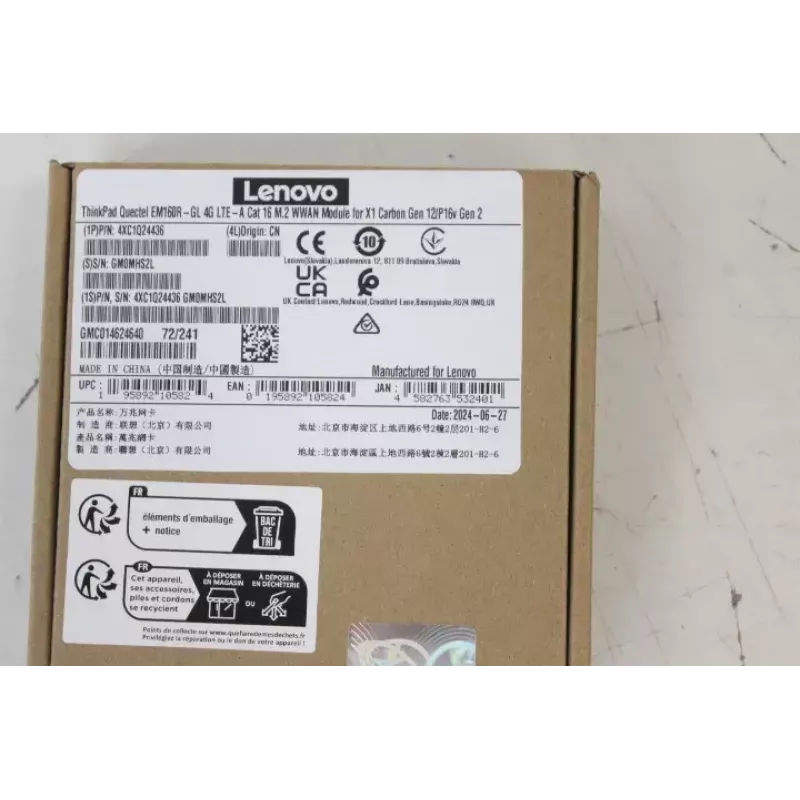

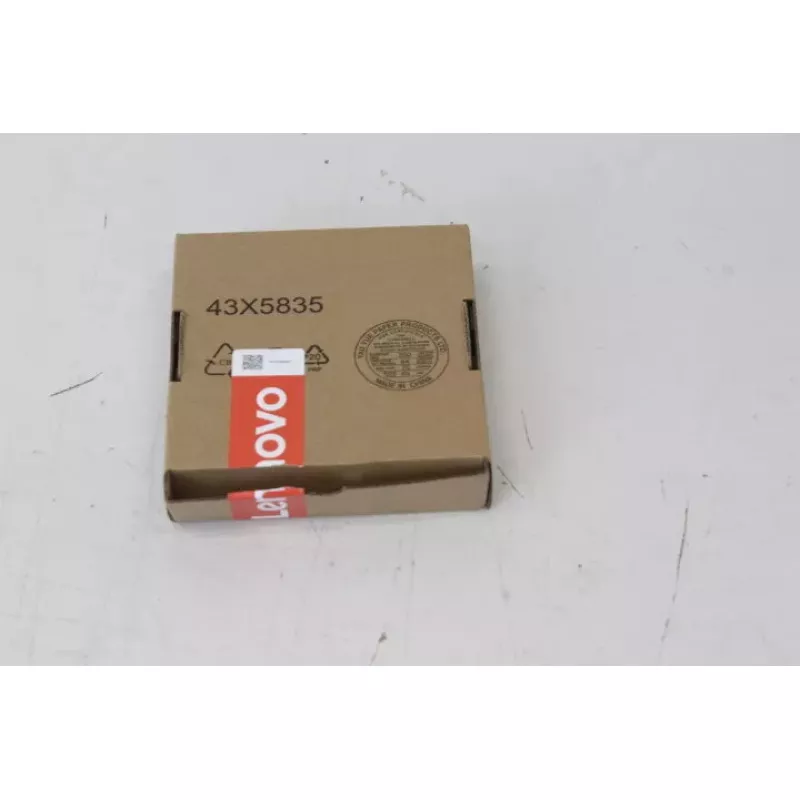

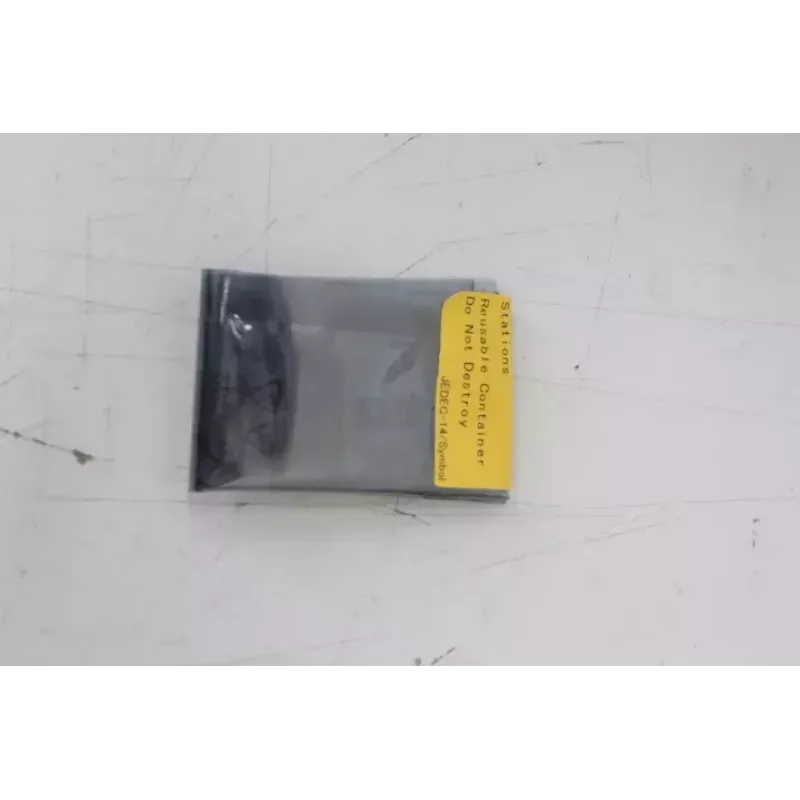

• Condition: Unpacked unit

How to use

Power off the laptop and disconnect any external power source before installation. Access the laptop’s underside or service panel according to the manufacturer’s hardware maintenance manual for your specific ThinkPad model. Insert the M.2 module into the WWAN slot at the correct angle and secure it with the appropriate screw provided by the laptop (do not over-tighten). Reattach antennas if required by the system and reconnect power. After booting the operating system, install any necessary drivers or firmware updates from Lenovo or Quectel and configure the cellular profile with your mobile network operator, including APN settings and SIM card activation if applicable.

Recommendations

Use a compatible SIM card from a supported carrier and verify network band support for your region. Keep system BIOS and WWAN drivers up to date via Lenovo support pages to ensure optimal performance and security. If you are replacing an existing module, confirm antenna connections and part compatibility before removing the old unit. For regulated environments, follow company policies for cellular data usage and roaming settings.
