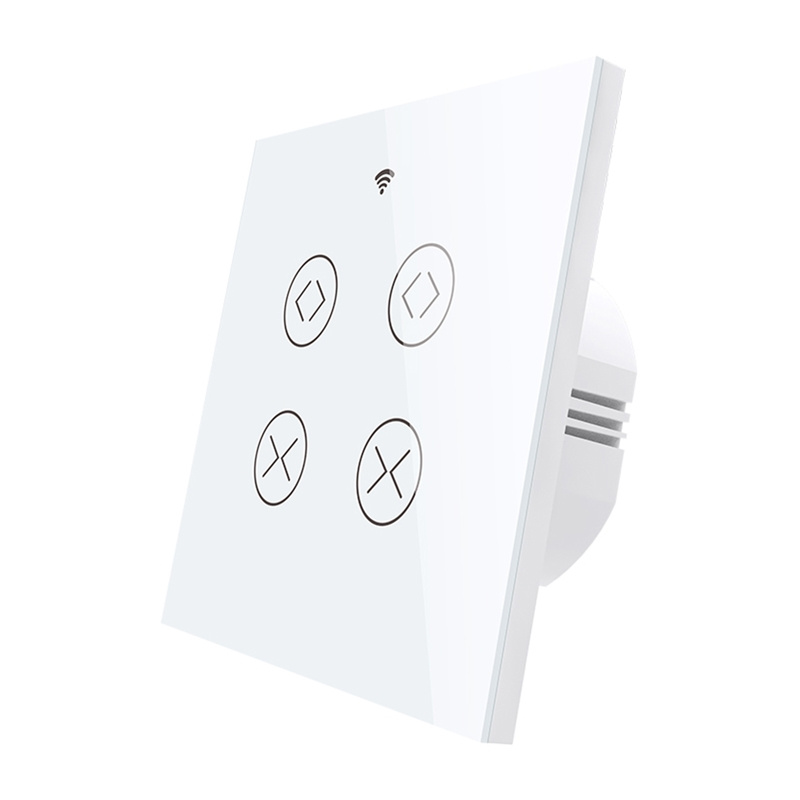

MOES WRS-EUC2-WH-MS Interruptor inteligente para persianas

The MOES WRS-EUC2-WH-MS is a two-channel smart roller shutter switch that allows independent control of two layers of curtains or two separate motors from a single panel. It combines Wi-Fi connectivity with RF433 technology, offering control via touch, radio remote, voice commands, and the Smart Life app.

Key features

• Two independent channels for separate motor control
• Four control methods: touch, RF433 remote, voice (Alexa/Google Home), and Smart Life app
• Wi-Fi and Bluetooth pairing mode for automatic device identification via smartphone, setup in 8 seconds
• Schedules for precise opening and closing times
• Backlight Switch feature to turn off button backlight at night
• Shared management and device groups via Smart Life app
• High scratch-resistant panel

Specifications

• Brand: MOES
• Model: WRS-EUC2-WH-MS
• Operating voltage: 90–250V AC, 50/60Hz
• Maximum current: 2.5 A per channel; total 2.5 A per motor
• Load power: ≤600 W per motor
• Standby power consumption: ≤0.5 W
• Wireless protocol: Wi-Fi 2.4GHz IEEE 802.11 b/g/n
• Standby current consumption: 0.1 mA
• Wireless range: 30 meters (indoors)
• Frequency band: 2.412~2.484 GHz
• Max. radio transmission power: < +16 dBm
