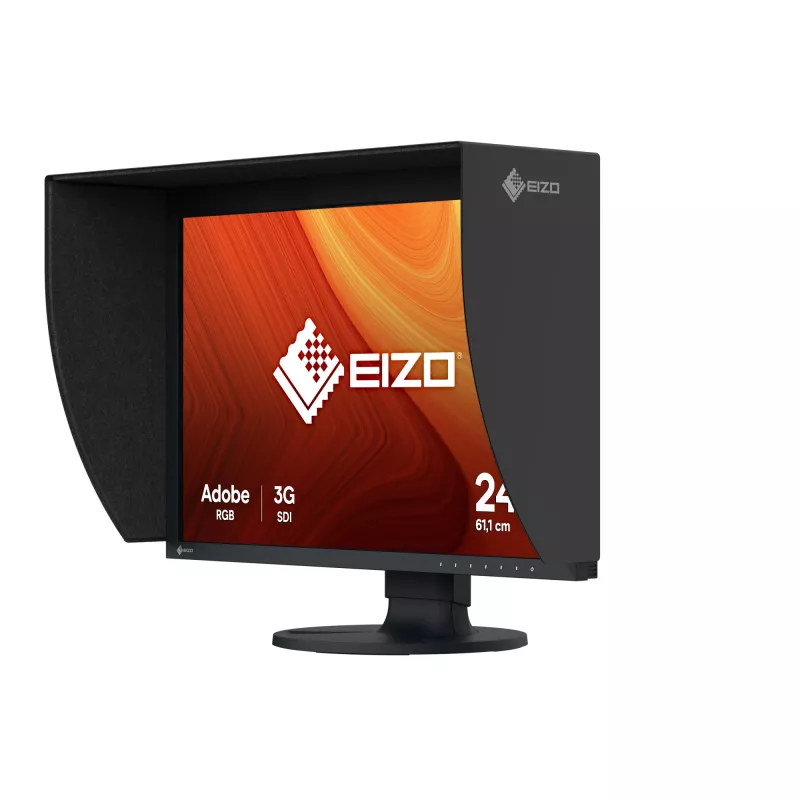

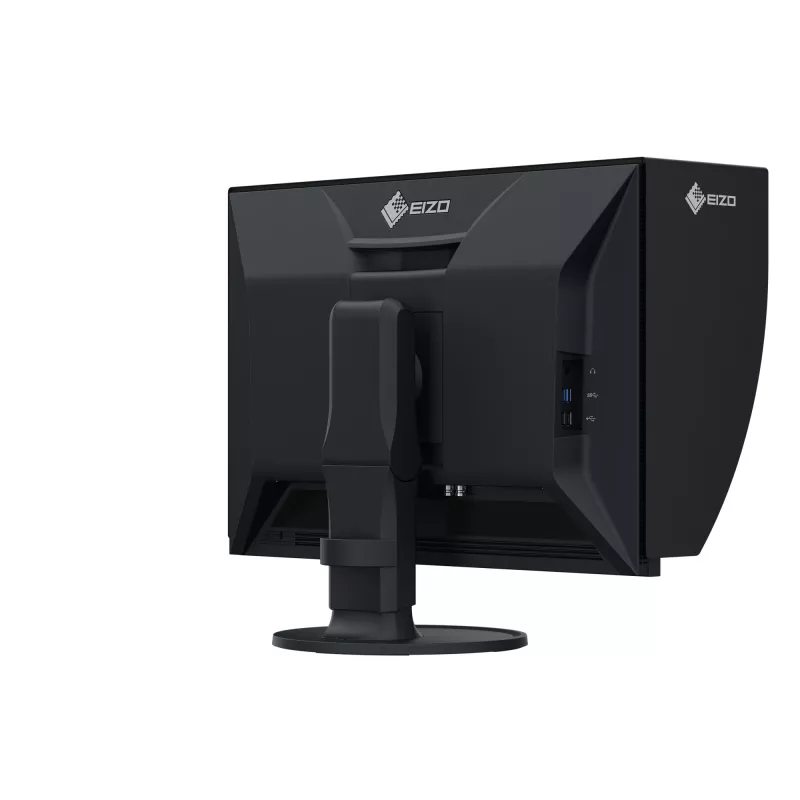

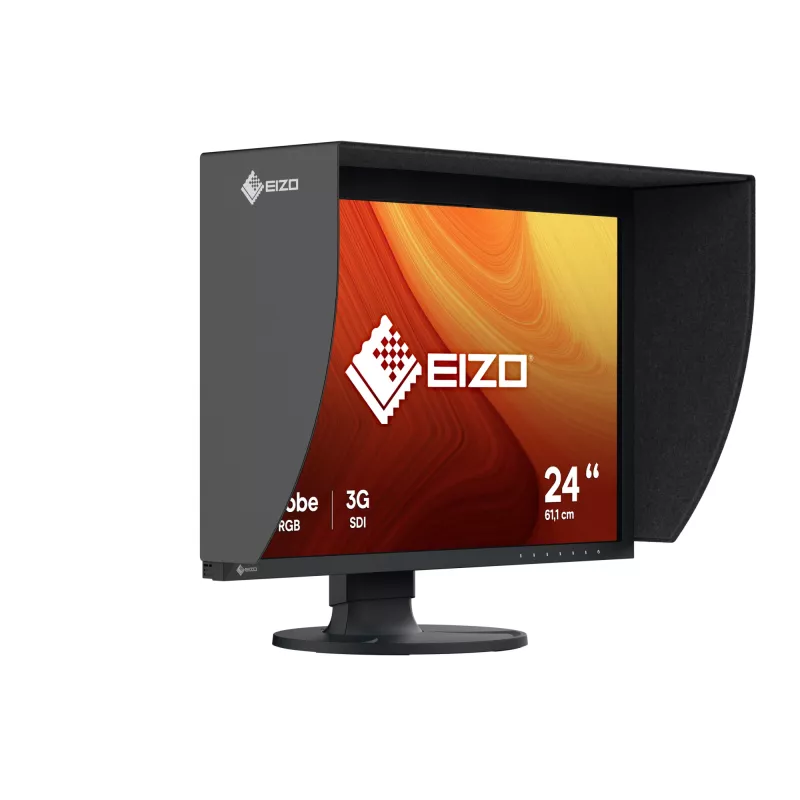

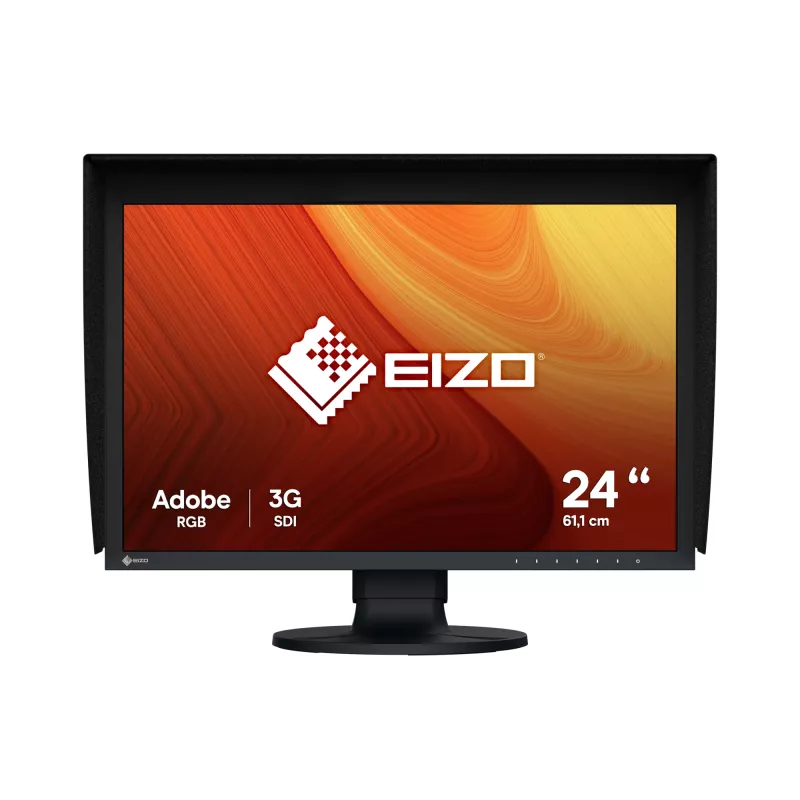

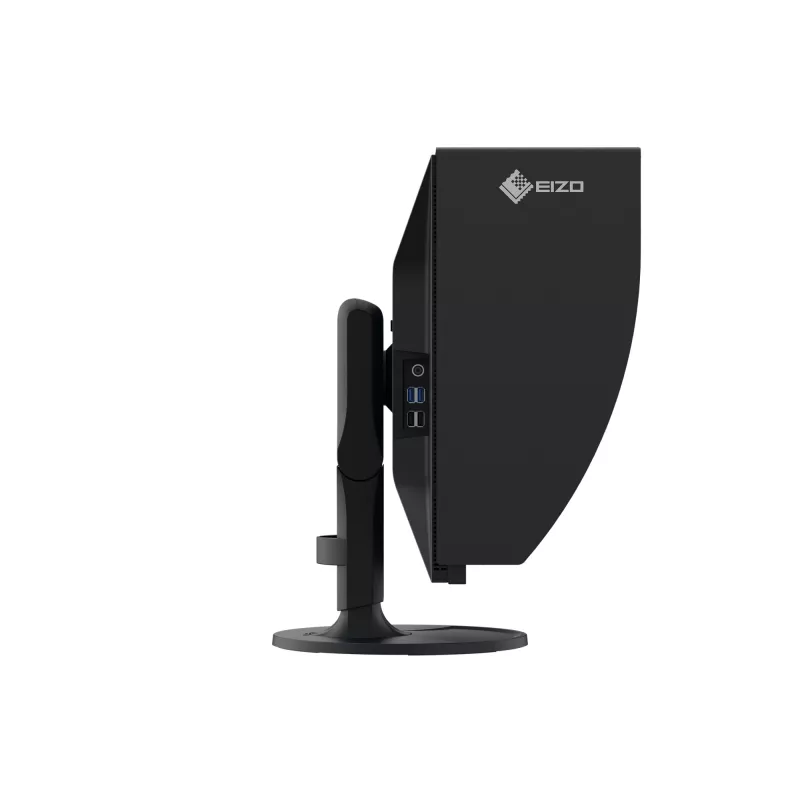

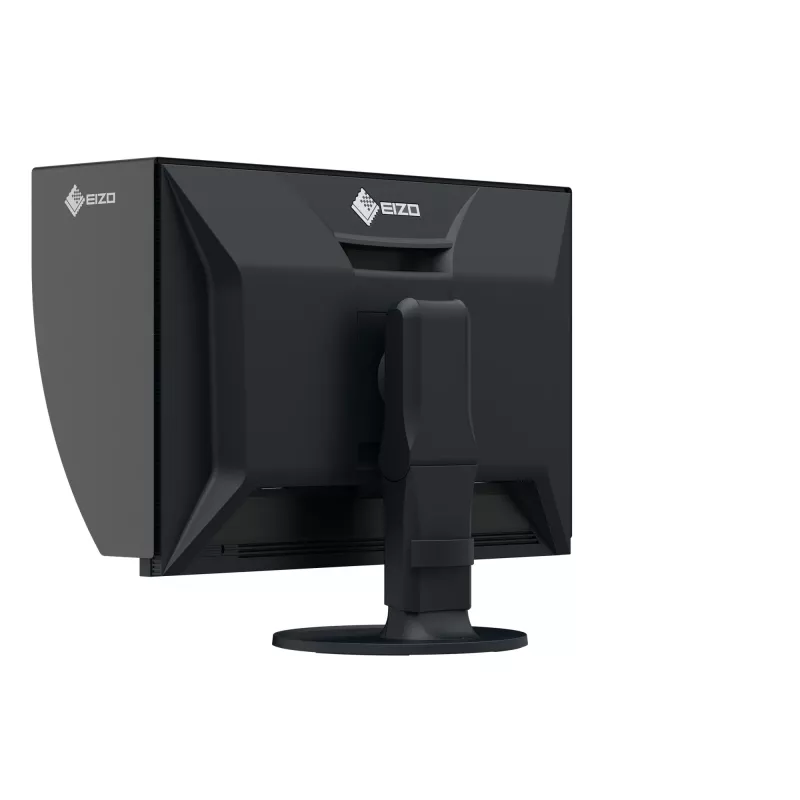

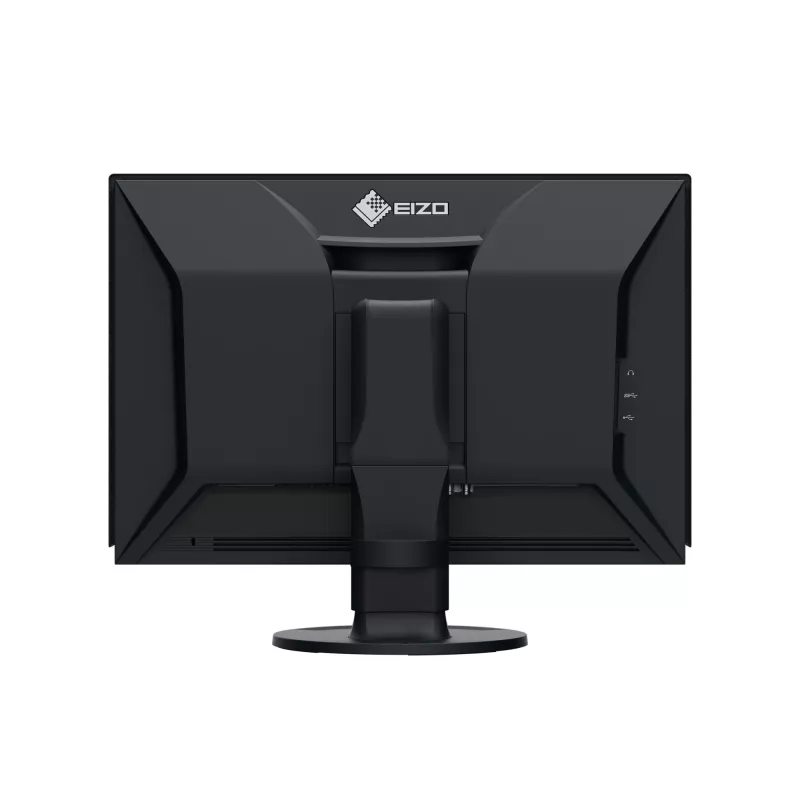

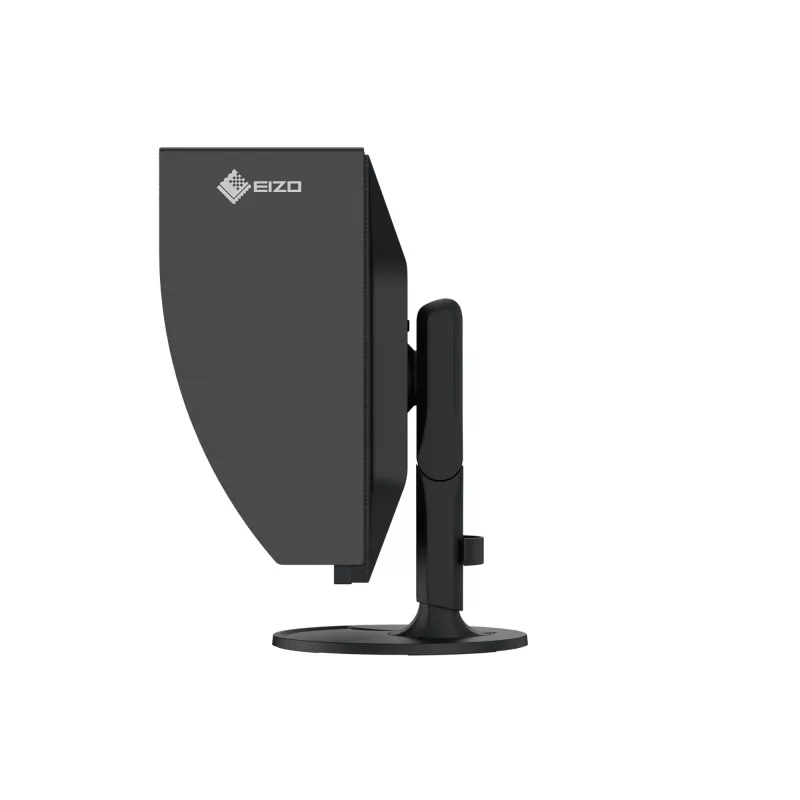

Monitor LCD EIZO ColorEdge CG2400SV 61,2 cm (24,1") WUXGA IPS 1920×1200, hub USB 3.2, VESA, altura ajustable, negro

The EIZO ColorEdge CG2400SV is a 24.1" (61.2 cm) WUXGA (1920 x 1200) LCD monitor designed for film and broadcast workflows, offering SDI connectivity, HDR support and an integrated calibration sensor. Its wide gamut IPS panel covers 98% of DCI-P3 and supports BT.2020 while 10-bit display and a 16-bit 3D LUT ensure accurate color reproduction. SDI input/output (3G-SDI Level A and HD-SDI) allow loss-free transmission of uncompressed video alongside DisplayPort and HDMI options. The monitor meets DCI brightness and contrast requirements and includes a Pixel Inspection function, USB hub, headphone jack and a light shield.

Advantages

The CG2400SV provides reliable, broadcast-grade signal handling through SDI I/O and preserves image fidelity with HDR support (HLG and PQ), 400 cd/m² peak brightness and a 1800:1 contrast ratio. Its wide color gamut and 10-bit/16-bit LUT pipeline enable precise color grading and smooth tonal transitions. Built-in automatic calibration simplifies color management and the Pixel Inspection feature helps verify signal processing across the workflow. Additional practical features include a USB 3.2 Gen 1 hub, headphone jack, flicker-free technology and a supplied light shield.

Suitable for

• Color grading and postproduction in film and broadcast
• On-set monitoring and live production with camera feeds
• Editing suites and studios requiring accurate color and HDR preview

Key specifications

• Display diagonal: 61.2 cm (24.1")
• Resolution: 1920 x 1200 (WUXGA), aspect ratio 16:10
• Panel type: IPS, wide gamut (98% DCI-P3), BT.2020 support
• Brightness: up to 400 cd/m²; Typical brightness: 120 cd/m²
• Contrast ratio (typical): 1800:1
• Color depth: 10-bit display with 16-bit 3D LUT
• SDI input/output: 3G-SDI Level A and HD-SDI
• Additional inputs: DisplayPort, HDMI
• Integrated calibration sensor for automatic self-calibration
• Pixel Inspection and Digital Uniformity Equalizer
• Built-in USB hub (USB 3.2 Gen 1), headphone jack
• Response time: 11 ms; Refresh rate: 60 Hz; Flicker-free technology
• Power consumption: 17 W; Color: Black; VESA mountable
• Includes light shield; 5-year warranty

How to use

Connect the monitor to your video source using SDI for lossless uncompressed feeds, or use DisplayPort/HDMI where appropriate. Use the integrated calibration sensor and the ColorEdge calibration workflow to perform hardware calibration of brightness, white point and gamma. When working with HDR content select the appropriate gamma curve (HLG or PQ) on the monitor. Use the Pixel Inspection function to verify signal processing and color fidelity along the pipeline. Adjust height and position as needed and attach the supplied light shield for controlled viewing conditions.

Recommendations

For consistent color-critical results, perform regular self-calibration using the built-in sensor, view content in a controlled lighting environment with the light shield fitted, and use SDI connections for live or camera-linked workflows to avoid compression artifacts.
