Montaje de soporte para TV Neomounts WL30S-910BL16 50 kg 40-75"

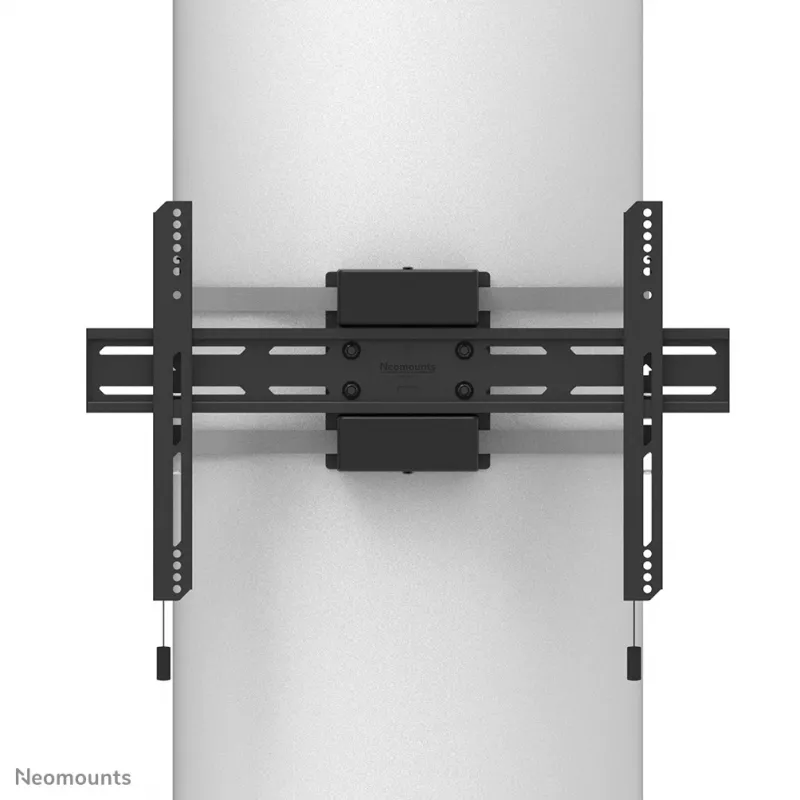

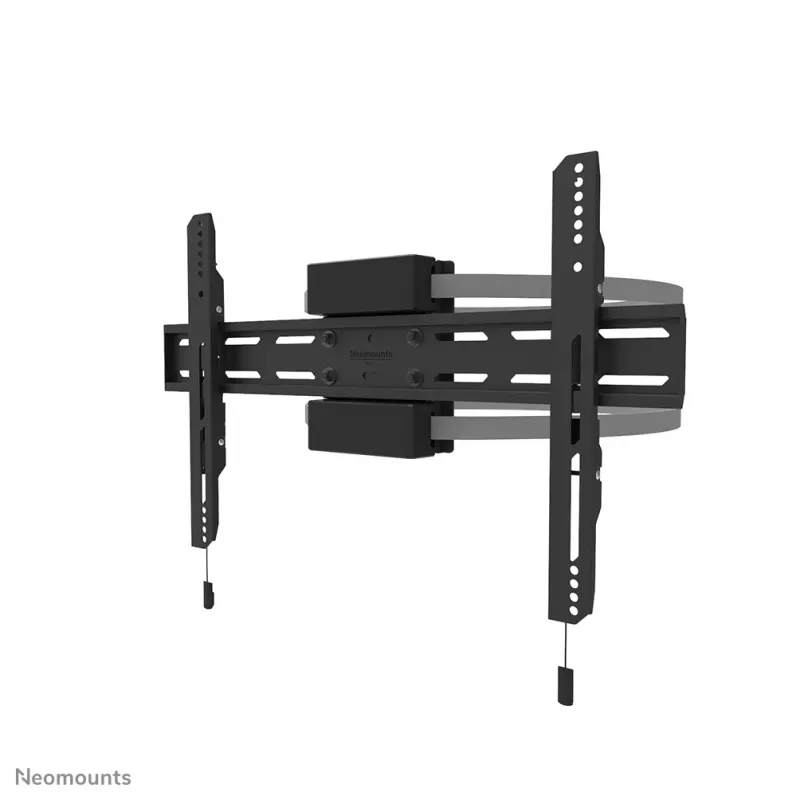

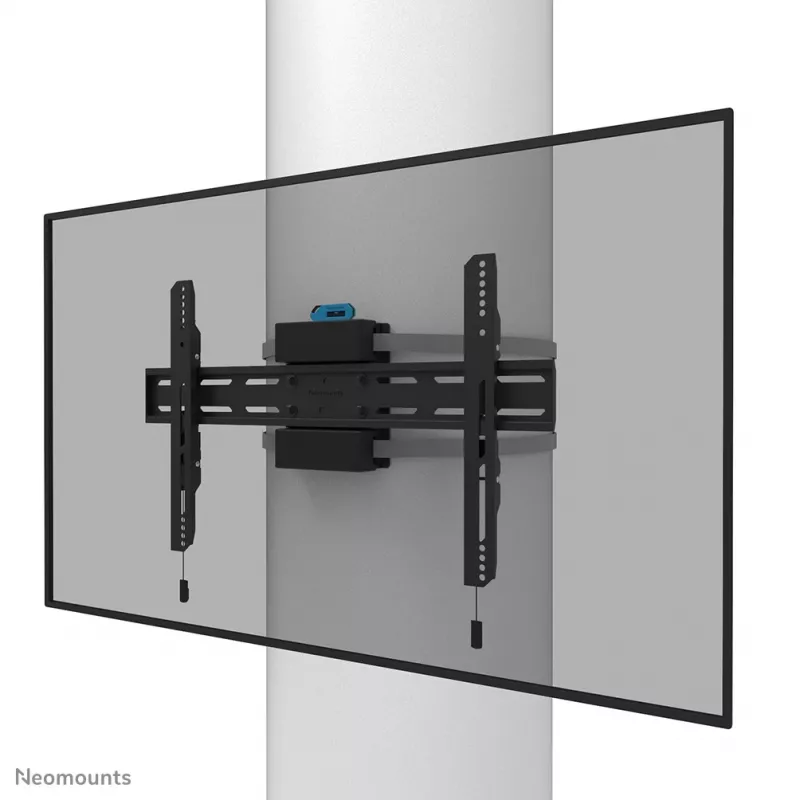

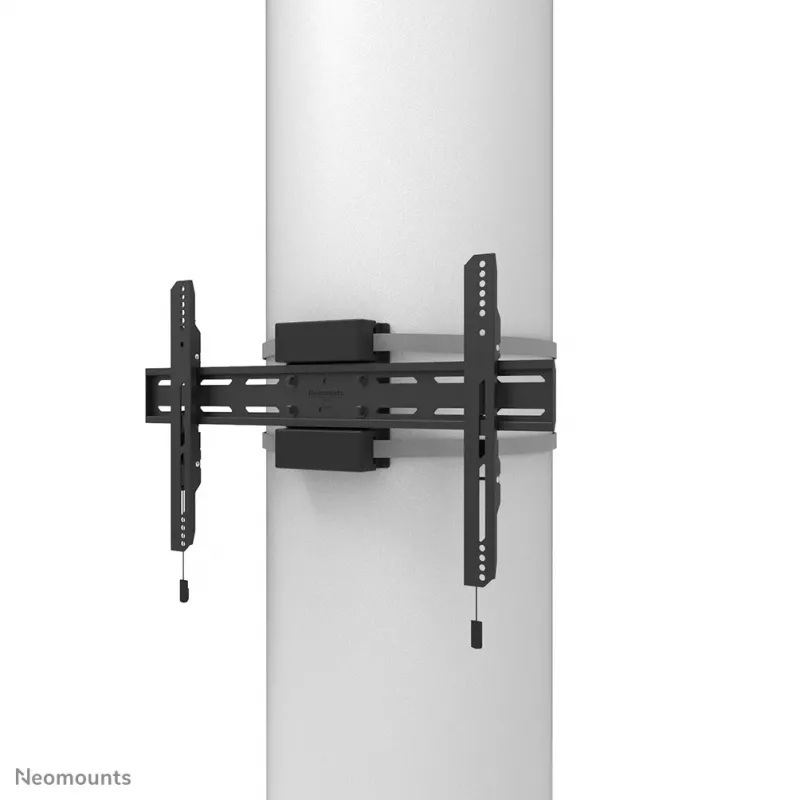

The Neomounts WL30S-910BL16 is a fixed pillar mount for TVs and screens from 40" up to 75" with a maximum load capacity of 50 kg. It is designed for use on cylindrical pillars with diameters from 25 to 100 mm as well as square and rectangular posts. The mount supports VESA hole patterns from 200 x 100 mm up to 600 x 400 mm and keeps the screen close to the pillar with a depth of 6.7 cm.

Advantages

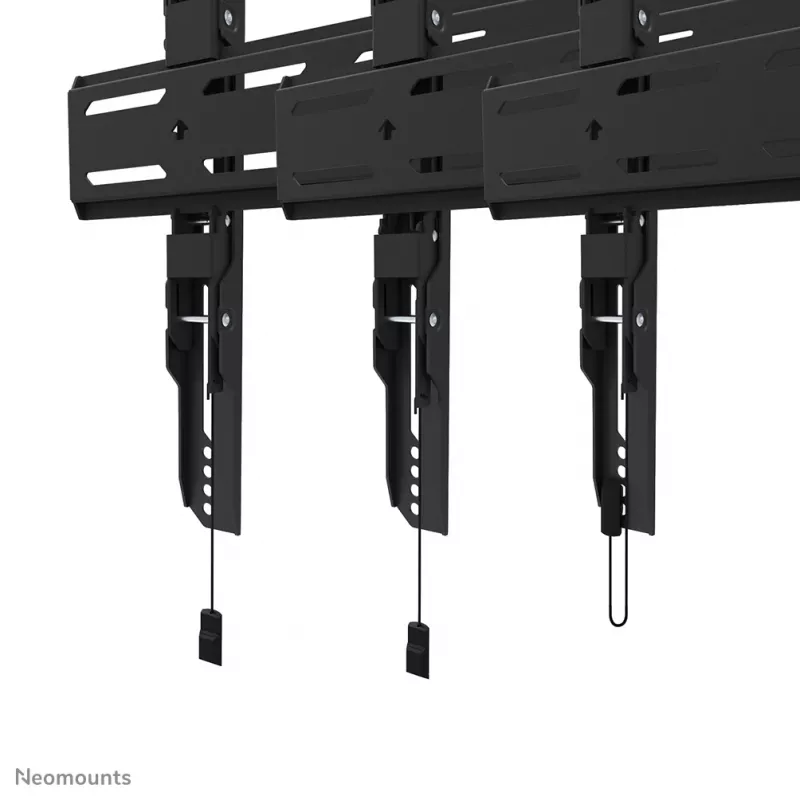

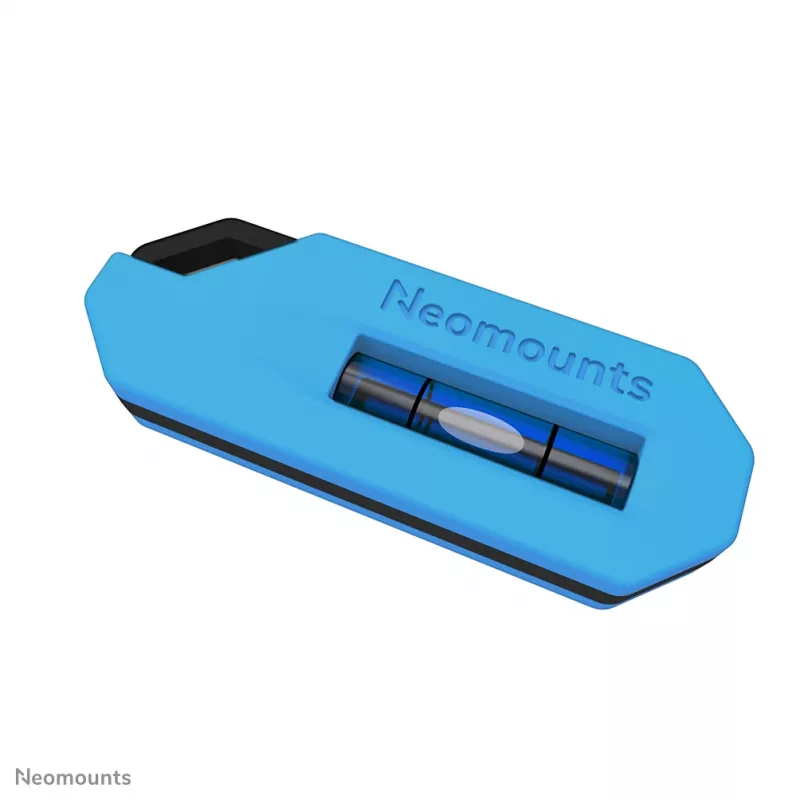

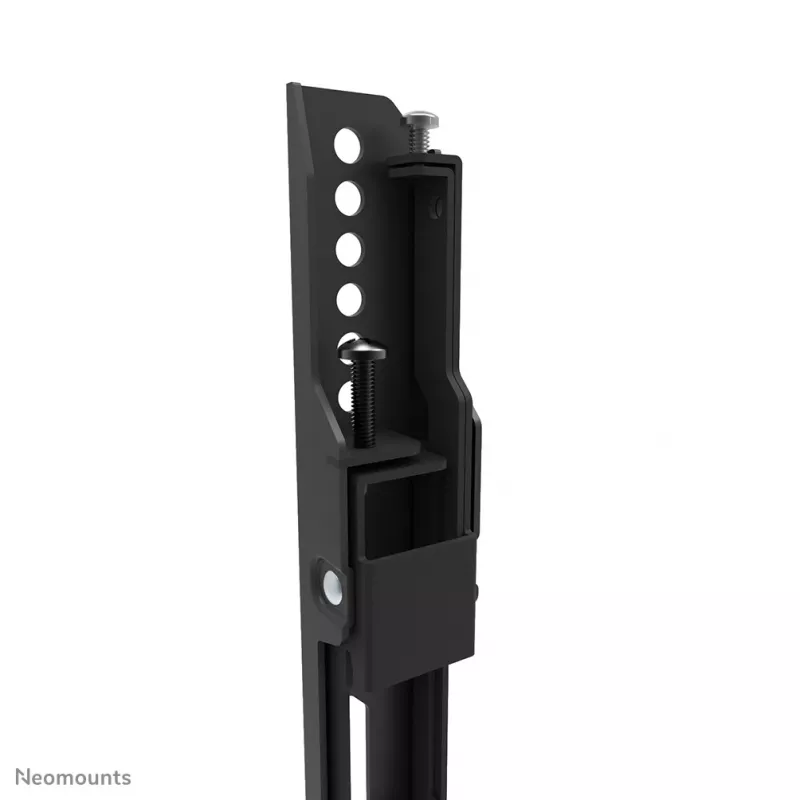

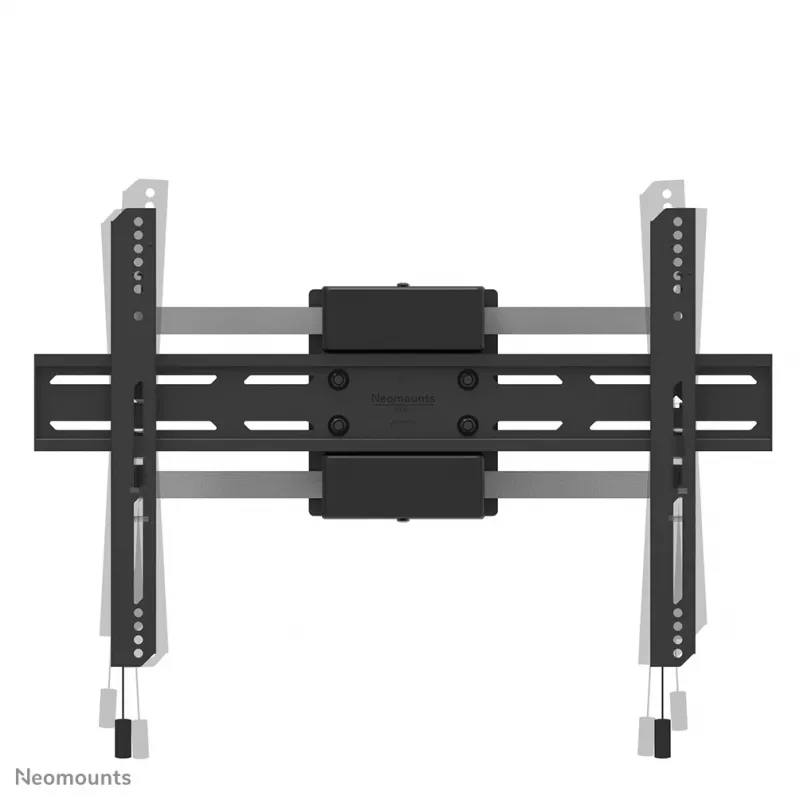

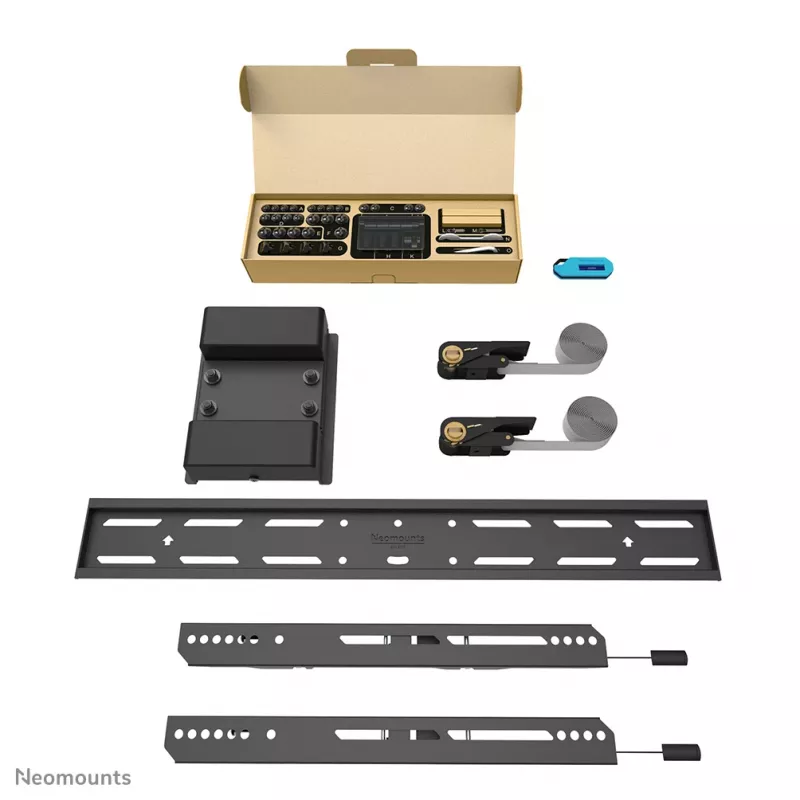

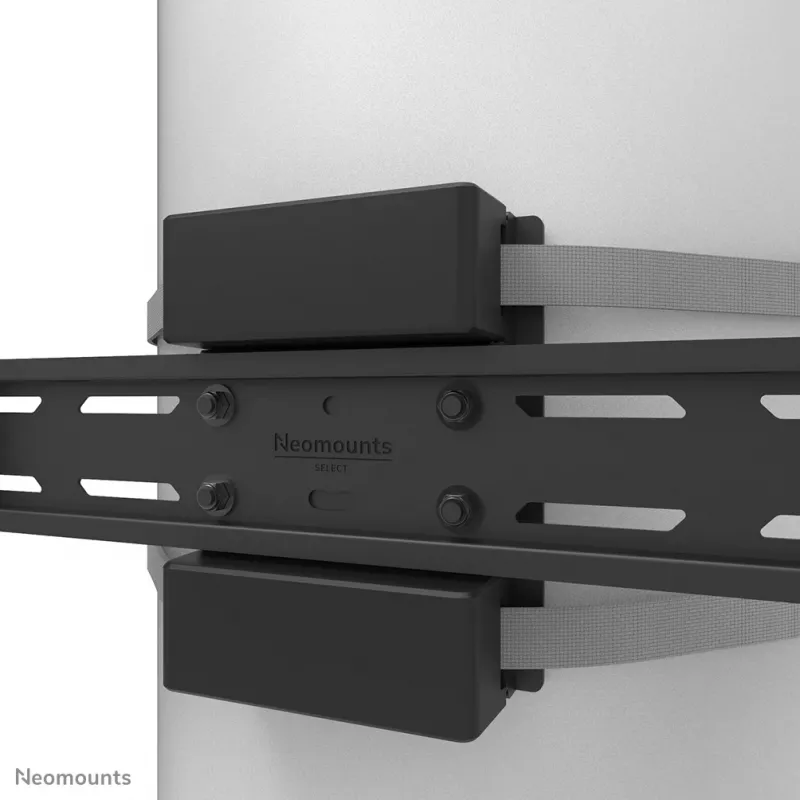

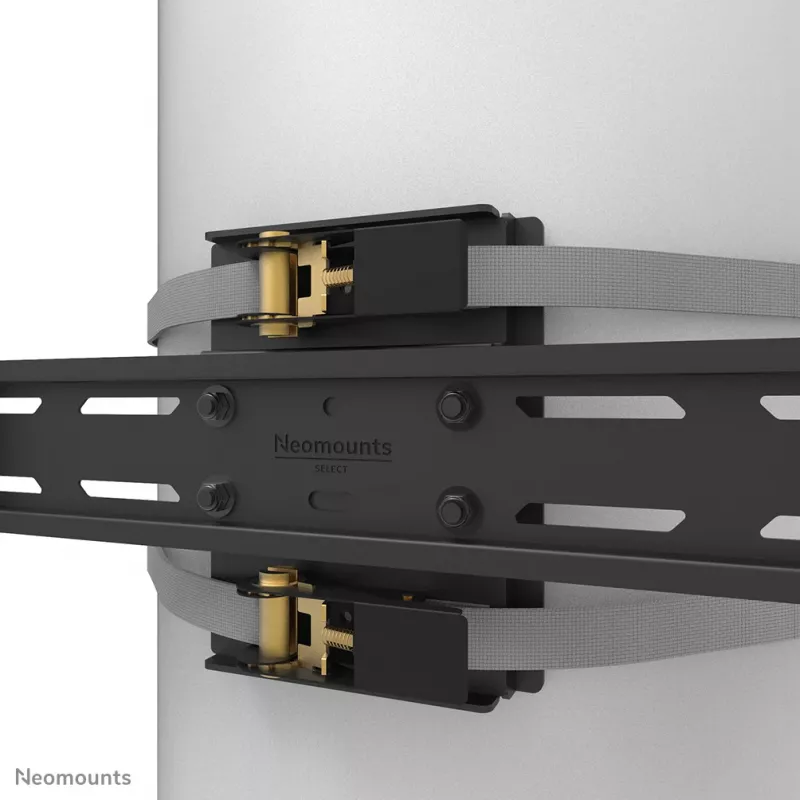

The WL30S-910BL16 offers individual bracket height and level adjustment to achieve precise positioning. It includes a 350 cm securing strap with an option to lock using the supplied anti-theft screw or an external padlock (not included). A magnetic pull-and-release system allows quick attachment and removal of the screen, while a ratchet clamp simplifies installation. A separate magnetic spirit level is supplied for accurate alignment.

Suitable for

• Mounting a single flat-screen TV or display (40"–75") on a pillar

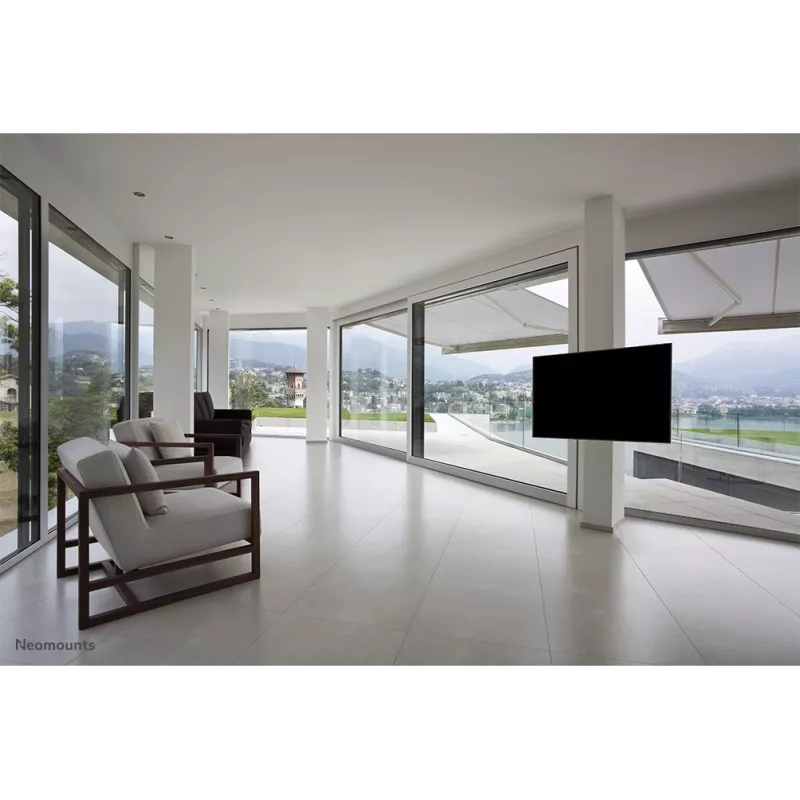

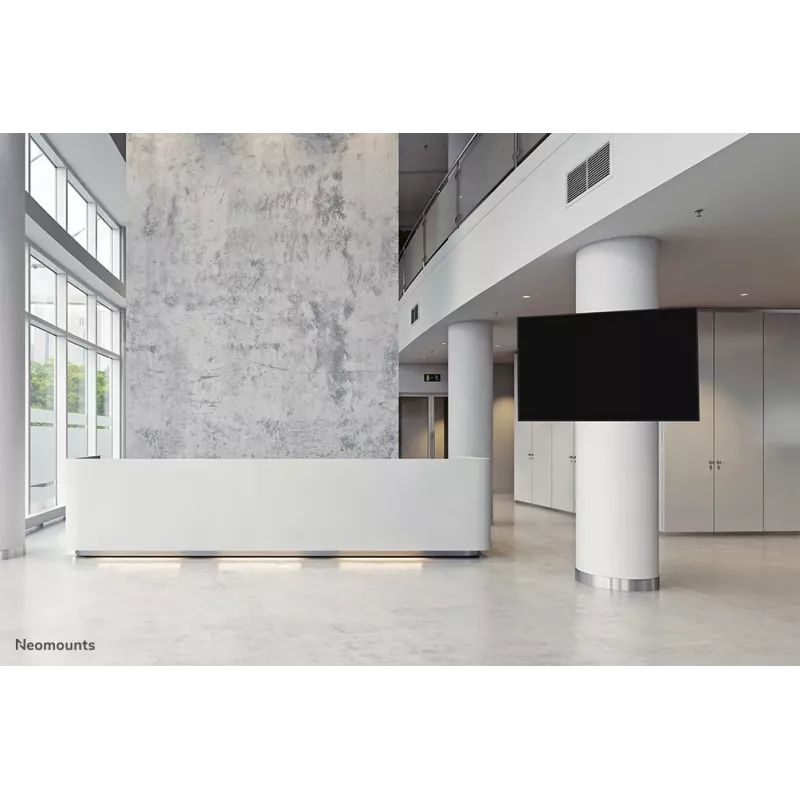

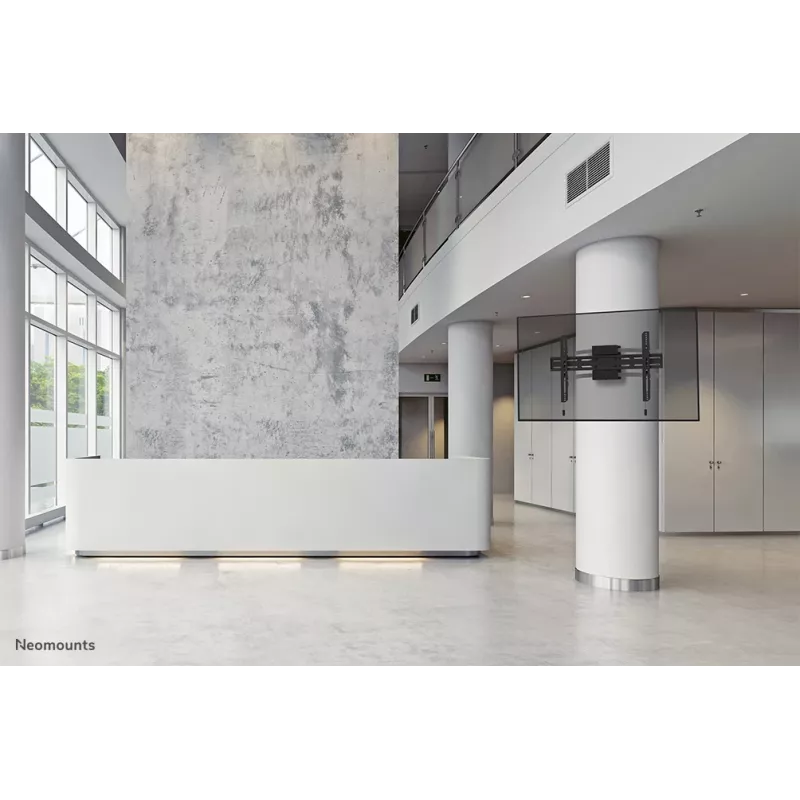

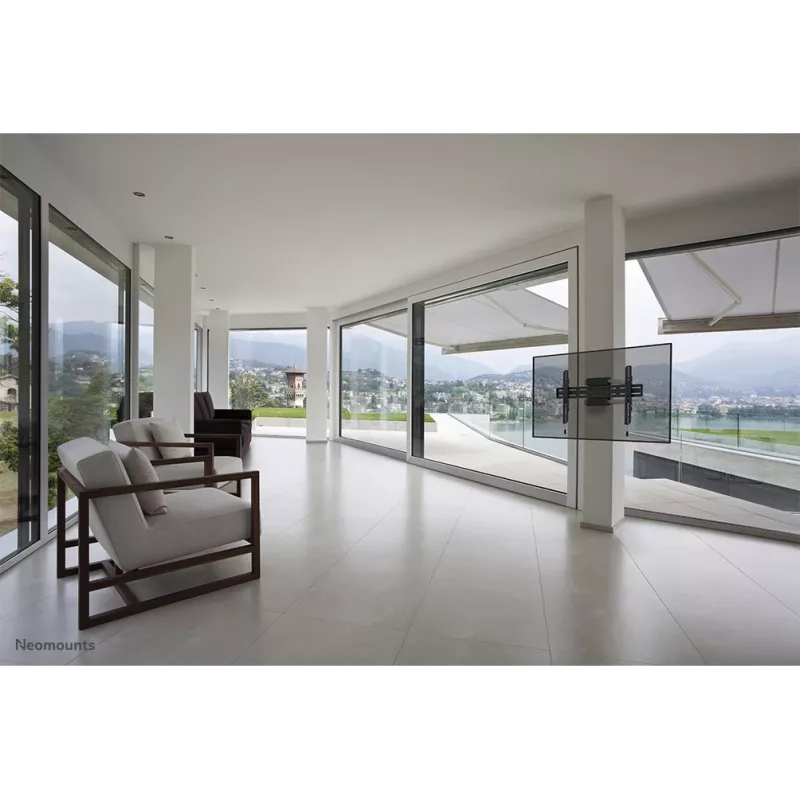

• Indoor installations on cylindrical, square or rectangular pillars
• Situations requiring a low-profile mount with a 6.7 cm depth
• Installations where VESA compatibility 200x100–600x400 mm is needed

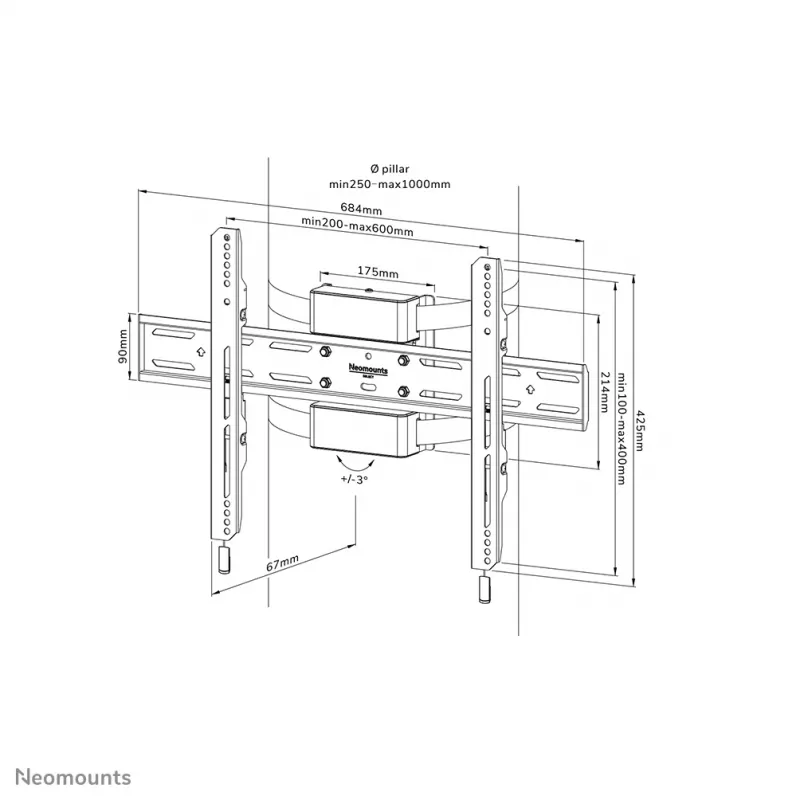

Key specifications

• Model: Neomounts WL30S-910BL16
• Maximum screen size: 75" (suitable for 40"–75")
• Maximum weight capacity: 50 kg
• VESA compatibility: 200 x 100 mm up to 600 x 400 mm

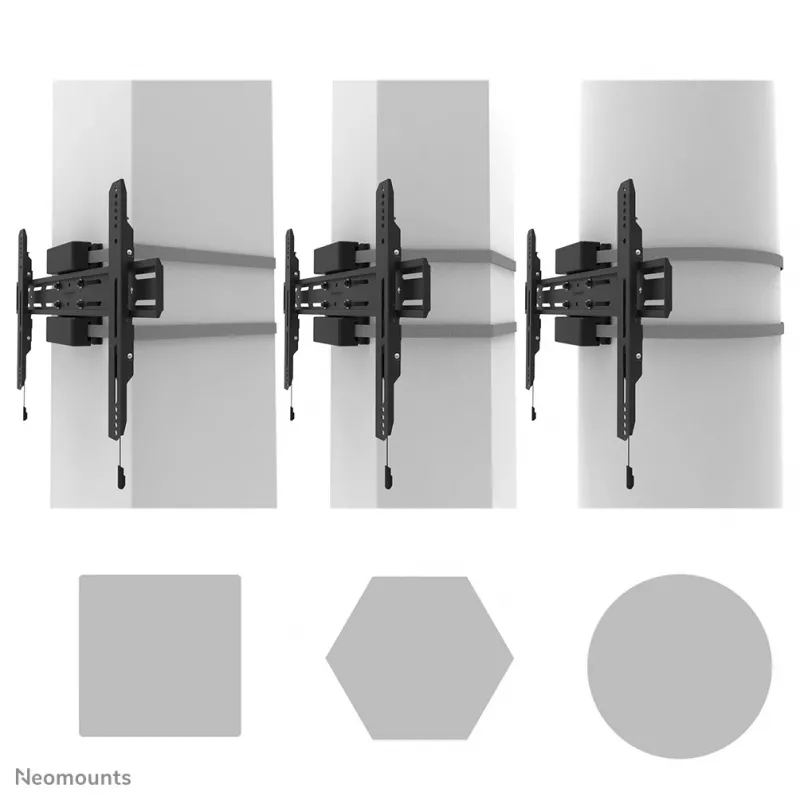

• Pillar compatibility: Ø25–100 mm, square and rectangular pillars

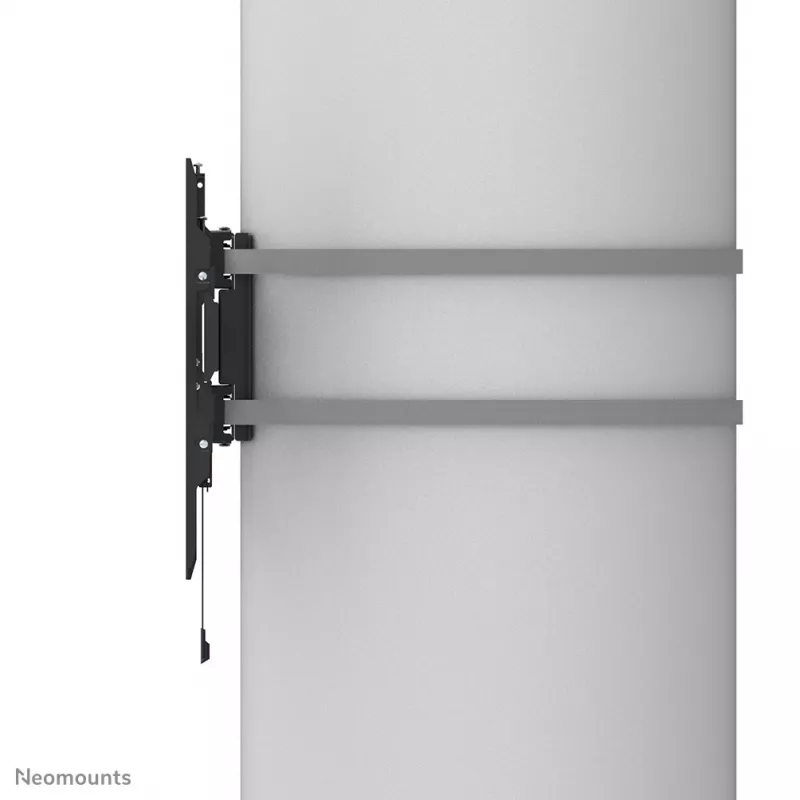

• Mount depth: 6.7 cm

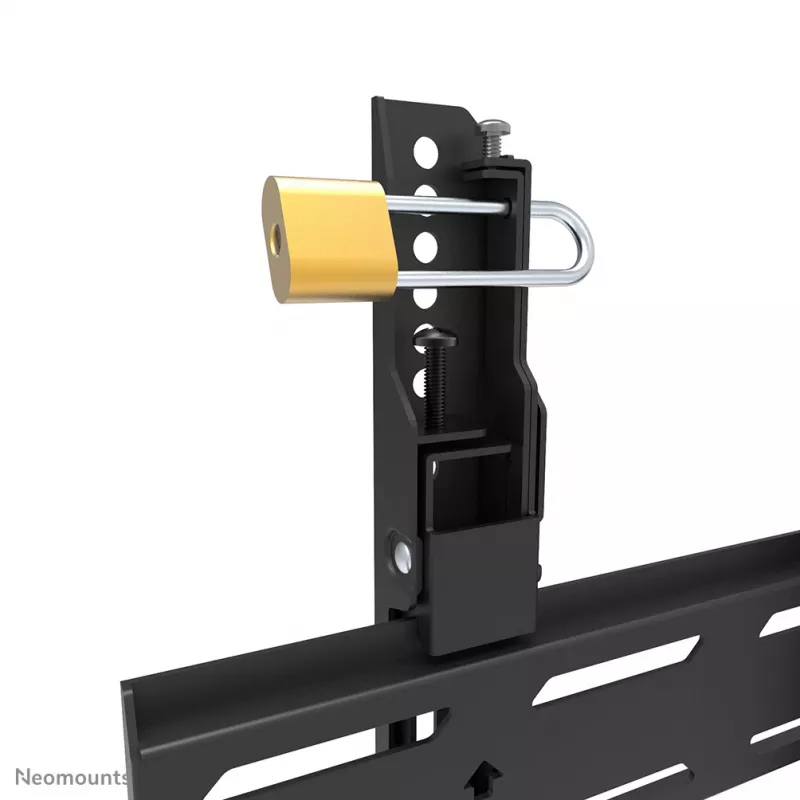

• Strap length: 350 cm, lockable (anti-theft screw included; padlock not included)
• Product colour: Black

How to use

Attach the mounting brackets to the TV following the VESA pattern that matches your screen, then position the bracket assembly around the pillar and secure it using the ratchet clamp. Adjust the bracket height and level using the provided adjustments and check alignment with the included magnetic spirit level. Thread and tighten the 350 cm strap around the pillar, and, if desired, secure with the anti-theft screw or a padlock. Use the magnetic pull-and-release system to hang the TV onto the mount and hide the straps by clicking the magnet to the mount.

Recommendations

Ensure the pillar can safely support the combined weight of the mount and screen (maximum 50 kg). Verify your TV’s VESA pattern and measure pillar diameter before installation. For public or high-traffic areas use the anti-theft screw or a suitable padlock to increase security.
