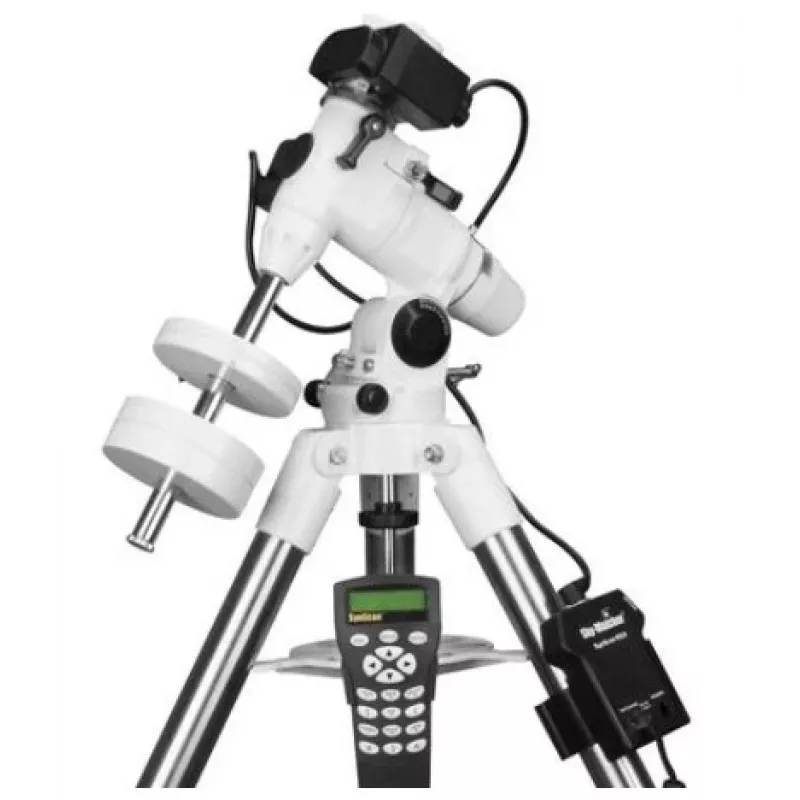

Montura ecuatorial EQ3-2 PRO con trípode de acero 1,75" — Sky-Watcher SW-4133

The Sky-Watcher EQ3-2 PRO equatorial mount with steel tripod and 1.75" shaft (SW-4133) is a compact, stable mounting solution for small to medium telescopes. Built for manual tracking and guided astrophotography, this mount provides adjustable latitude, slow-motion controls and a counterweight support system on a robust steel tripod. It is designed to improve pointing stability and to support steady visual observation as well as planetary and deep-sky imaging sessions.

Advantages

The EQ3-2 PRO offers a solid steel tripod that reduces vibration and increases stability compared with lighter tripods. Its 1.75" mount shaft provides a secure connection for compatible optical tubes and accessories. Built-in slow-motion controls allow for precise manual tracking, while the adjustable latitude setting helps align the mount for accurate equatorial tracking. The integrated counterweight support ensures balance when using heavier eyepieces, finders or small imaging setups.

Suitable for

• Visual observing with small to medium telescopes
• Planetary imaging with guided setups
• Basic deep-sky astrophotography with guiding
• Portable field use and travel to dark-sky sites

Key specifications

• Mount type: Equatorial mount designed for manual and guided tracking
• Tripod material: Steel tripod for enhanced stability
• Mount shaft diameter: 1.75" (44.45 mm) shaft for optical tube attachment
• Controls: Slow-motion manual controls for right ascension and declination
• Adjustment: Latitude adjustment for polar alignment
• Balance: Counterweight support for balancing optical assemblies and accessories

How to use

Set up the steel tripod on firm, level ground and securely attach the EQ3-2 PRO head to the tripod shaft. Mount the optical tube onto the 1.75" shaft using the appropriate mounting hardware and install the counterweight(s) on the support rod to achieve balance. Use the latitude adjustment to align the polar axis with the local celestial pole, then use the slow-motion controls to make precise tracking corrections during observation or guided imaging. For astrophotography, attach guiding equipment and ensure the mount is well balanced before long exposures.

Recommendations

For best performance, place the tripod on a stable surface and allow the mount to cool to ambient temperature; balance the setup carefully and perform a proper polar alignment before extended tracking or imaging sessions.
