Motor de rotación Eurolite MD-1030 negro

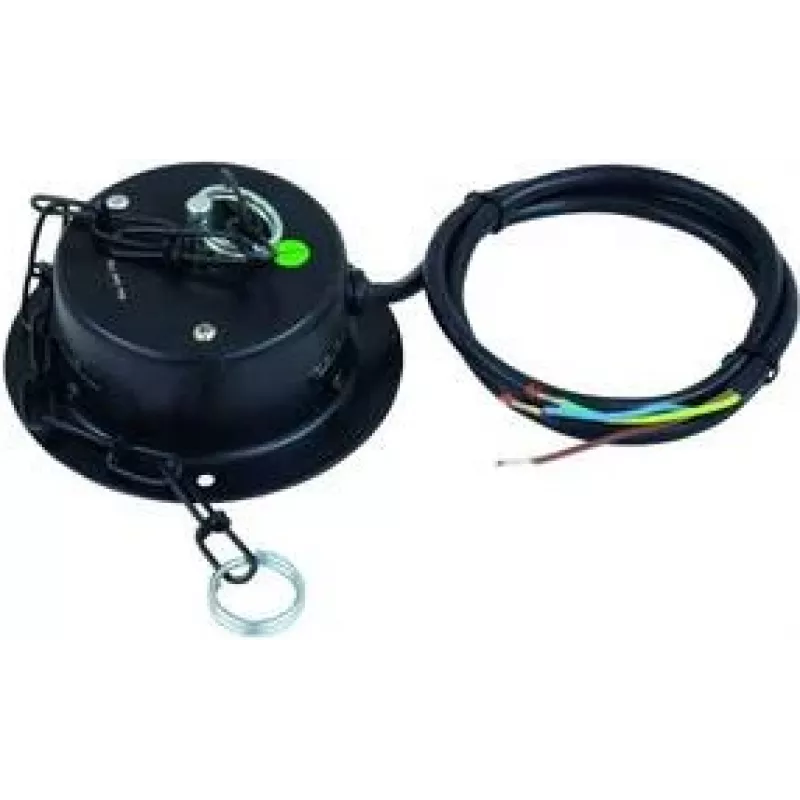

The Eurolite MD-1030 Rotary motor in black is a compact drive unit for mirror balls and similar suspended devices. It operates at 230 V, 50 Hz and is designed to rotate loads up to a maximum of 3 kg (this weight includes the mirror ball chain and any fixation material). The motor delivers a rotation speed of 3 revolutions per minute and is supplied with open cable ends. Its dimensions (113 x 133 x 58 mm) and light weight (approx. 300 g) make it suitable for straightforward installation in stage, club, or event settings.

Advantages

The MD-1030 offers a simple, compact design that supports steady, low-speed rotation suitable for mirror balls up to 30 cm in diameter (when using EUROLITE mirror balls). It is supplied ready for connection with open cable ends and has a robust specification for continuous use when installed according to safety standards.

Suitable for

Key specifications

How to use

Mount the rotary motor in a stable position and attach the mirror ball using appropriate fixation material and chain, ensuring the total suspended weight does not exceed 3 kg. Connect the motor to a 230 V, 50 Hz supply using the open cable ends; electrical installation should be performed by a qualified electrician. Check the rotation direction and secure all fastenings before switching on. Verify smooth rotation at 3 rpm and inspect the installation regularly for signs of wear.

Recommendations

For professional use and installations in public places, comply with EN DIN 15560 standards. Always fit a secondary safety attachment to the motor and obtain an expert approval of the installation before first use.
