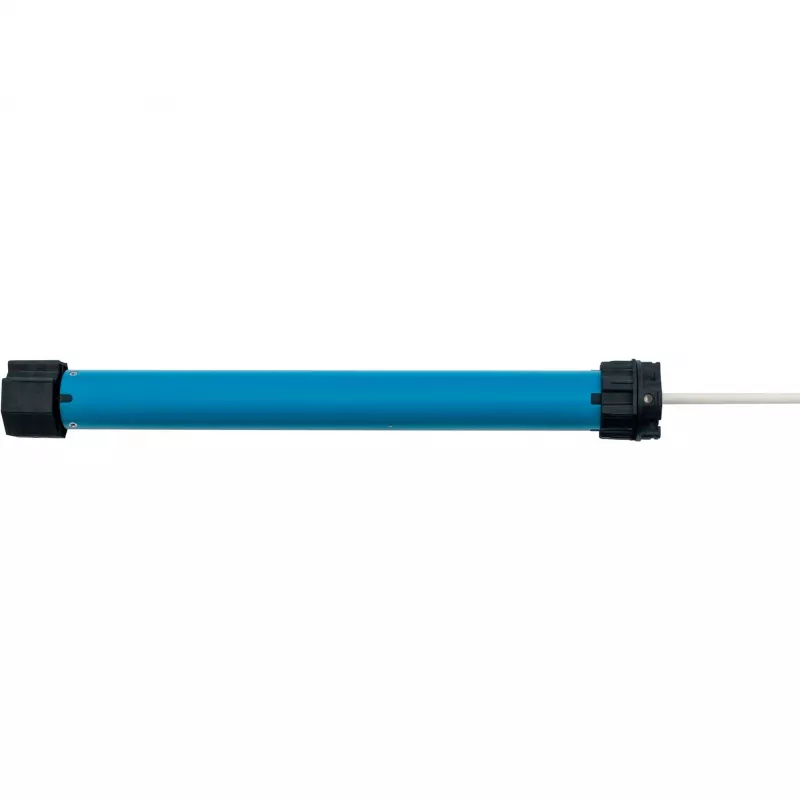

Motor tubular HOMEPILOT classic m10 SW60, 10 Nm, 16 rpm

Delivering 10 Nm of torque at 16 RPM, the HOMEPILOT classic m10 SW60 tubular motor drives PVC roller shutters up to 4.5 m² or 22 kg with mechanical limit switching.

Overview

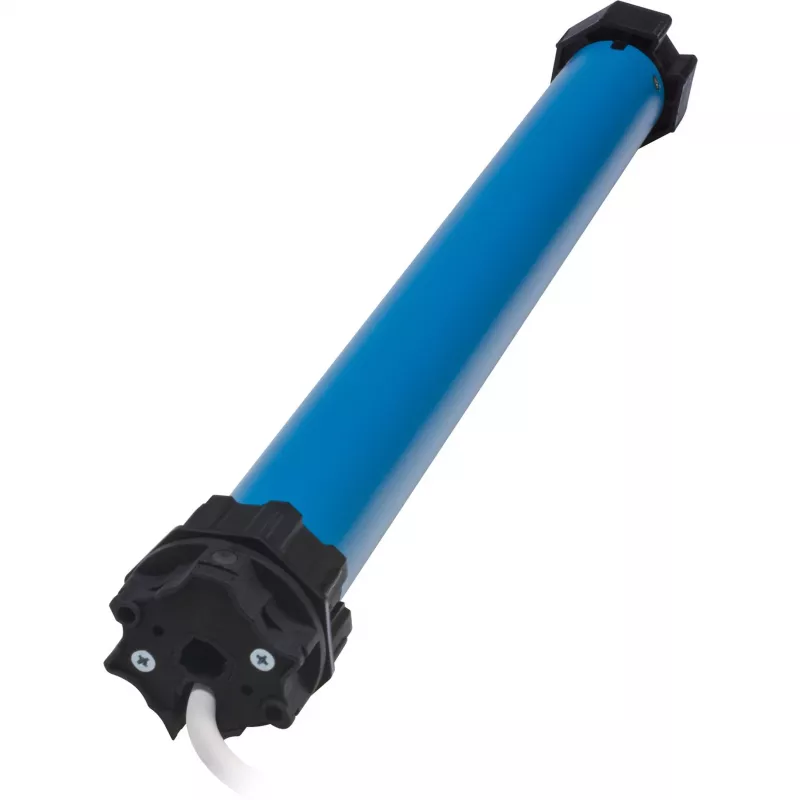

The HOMEPILOT classic m10 SW60 is a wired tubular motor for 60 mm octagonal shafts. It runs on 230 V AC, 50 Hz and draws 120 W (0.52 A). The motor is 45 mm in diameter and 455 mm long, with a 2.5 m connection cable. Mechanical end stops ensure precise travel limits. Thermal cut-out protects against overheating. Duty cycle is S2 (4 min).

What stands out

• 10 Nm torque for shutters up to 4.5 m² (PVC)
• 16 RPM speed with smooth operation
• Mechanical limit switches for reliable positioning
• Thermal cut-out for motor protection
• IP44 rated for damp environments

Technical details

• Torque: 10 Nm
• Speed: 16 RPM
• Power supply: 230 V AC, 50 Hz
• Power consumption: 120 W
• Current consumption: 0.52 A
• Motor diameter: 45 mm
• Motor length: 455 mm
• Cable length: 2.5 m
• Max. shutter area (PVC): 4.5 m²
• Max. shutter weight (PVC): 22 kg
• Limit switch type: Mechanical
• Duty cycle: S2 (4 min)
• Noise level: < 45 dB
• Operating temperature: -10°C to +40°C
• Protection class: IP44
• Overheat protection: Thermal cut-out

Our verdict

A dependable wired tubular motor for standard PVC roller shutters, with mechanical limits and thermal protection.
