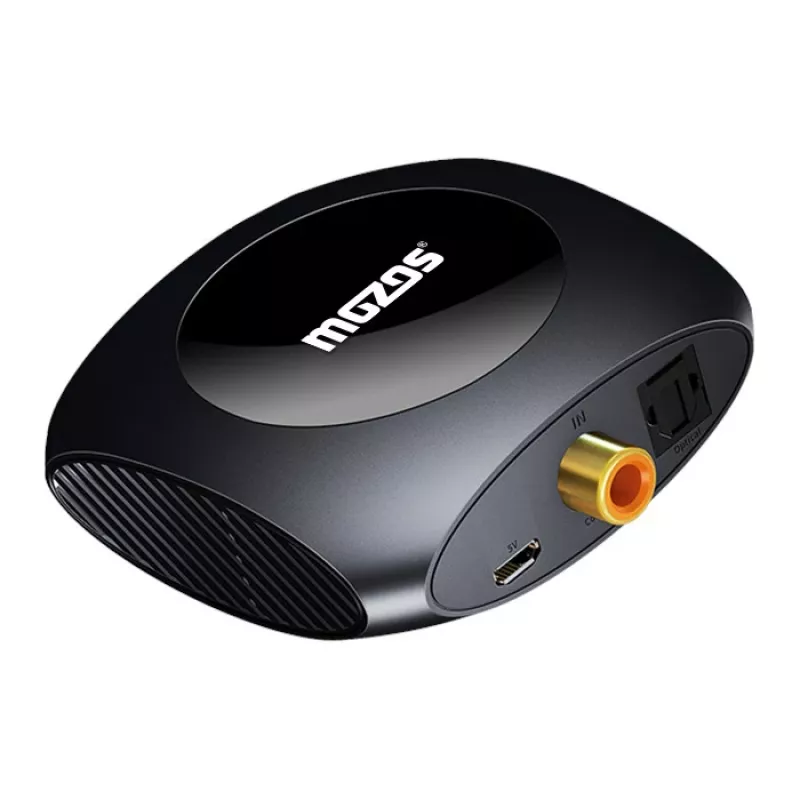

MOZOS DAC-N3 Convertidor digital-analógico

The MOZOS DAC-N3 is a high-performance digital-to-analog converter designed to elevate your audio experience. Featuring the ESS ES9018K2M DAC chipset and SA9123L USB controller, it delivers pristine sound quality with support for PCM up to 32-bit/384kHz and native DSD256. With versatile input options including USB-C, optical (Toslink), and coaxial, and outputs via RCA and 3.5mm headphone jack, this DAC is perfect for audiophiles, gamers, and professionals seeking superior audio fidelity.

Advantages

Exceptional sound clarity with a signal-to-noise ratio of 115 dB and ultra-low THD+N of 0.0003%. The aluminum alloy casing ensures durability and effective heat dissipation. Plug-and-play functionality with no driver installation required makes it easy to use across multiple platforms including Windows, macOS, Linux, Android, iOS, PS5, PS4, Xbox, and Smart TVs.

Suitable for

• Audiophiles seeking high-resolution audio playback
• Gamers wanting immersive sound with consoles and PCs
• Music producers requiring accurate monitoring
• Home theater enthusiasts connecting to amplifiers or speakers

Key specifications

• DAC Chipset: ESS ES9018K2M
• USB Controller: SA9123L
• Inputs: USB-C, Optical (Toslink), Coaxial
• Outputs: RCA (L/R Stereo), 3.5mm Headphone Jack
• Max PCM Sampling Rate: 32-bit/384kHz (USB)
• Max DSD Support: DSD256 (Native)
• Max Optical/Coaxial Sampling Rate: 24-bit/192kHz
• SNR: 115 dB
• THD+N: 0.0003%
• Frequency Response: 20Hz - 20kHz (±0.5dB)
• RCA Output Level: 2 Vrms
• Headphone Output Power: 125mW @ 32 Ohm
• Recommended Headphone Impedance: 16-300 Ohm
• Power Supply: USB 5V (Bus Powered)
• Volume Control: Rotary Knob
• Casing Material: Aluminum Alloy

Recommendations

For optimal performance, use high-quality USB cables and ensure your audio source supports the desired sampling rates. Pair with headphones or amplifiers that match the output specifications for the best listening experience.
