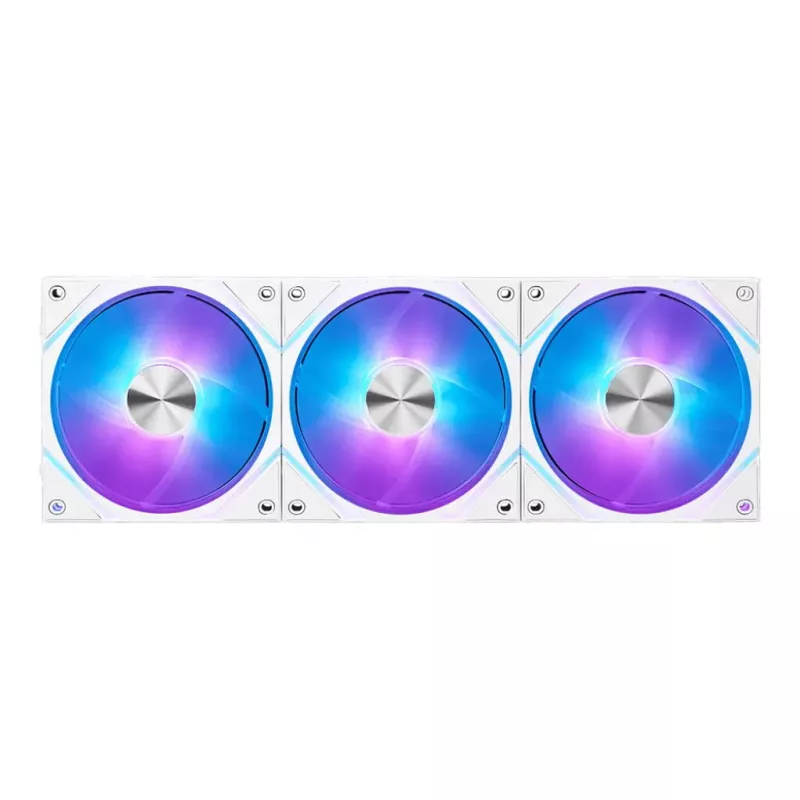

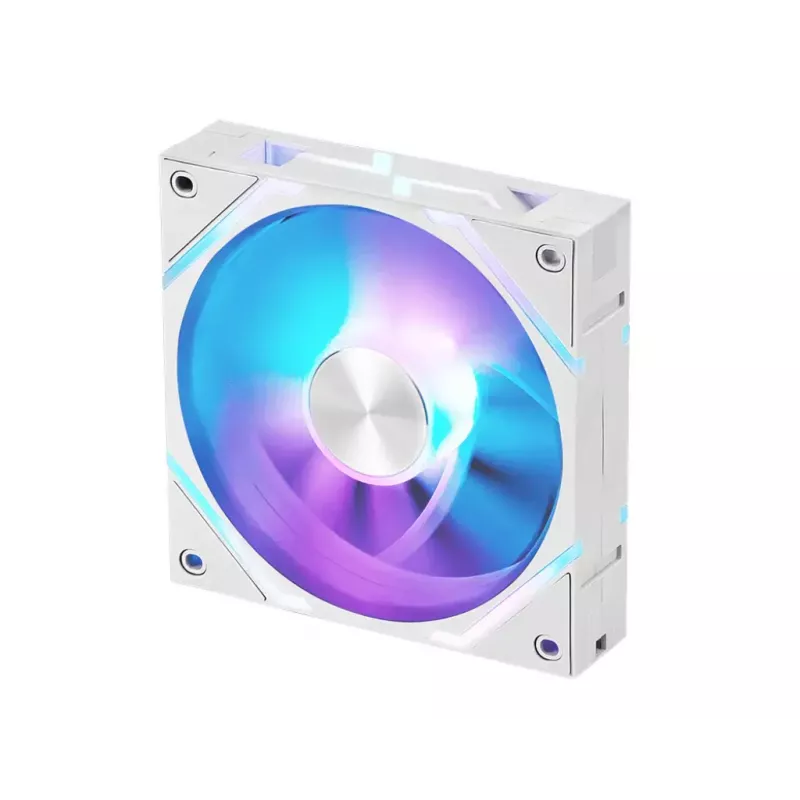

MSI MPG EZ120 ARGB WHITE-3W sistema de refrigeración para PC ventilador de carcasa 12 cm

MPG EZ120 ARGB is a new fan product with an optimized assemble experience that reduces the effort and complexity of cable management for PC assembly. As simple as by connecting the fans together by magnetic blocks just like children building blocks. You can also set up the RGB lighting by syncing with the motherboard or customize the color and effects in MSI Center. Show off your relaxed vibe a breeze.

Magnetic Connector Blocks
The Connector Blocks replace the general fan and ARGB cables, making it cableless and more accessible to connect. There are two block connections, one for delivering fan power and speed control and the other for the ARGB signal and synchronization. The blocks do not only deliver power and signal but also strengthen the connection between the fans.

Magnetic Design
The embedded magnet of the fan frame assists the fans to connect well.
Every block of MPG EZ120 ARGB also has an embedded magnet that connects well to the fan and delivers power and signals.

Cable-less
No matter the chassis supports 2 x120 mm or 3 x 120 mm system fans at the same side, there is only one cable connecting to the motherboard or fan hub*.

Daisy-chain Connection
The daisy-chain cable connects fans on different sides of the chassis. It helps cable routing of the rear I/O fan in case there's no suitable fan header on the motherboard.

Versatile Fan Blade Design
While liquid cooler requires high air pressure but airflow is more important to chassis heat dispassion, MPG EZ120 ARGB is suitable for both usages. With the 9-blade design, it has maximum air pressure of 2.56 mmH2O and maximum airflow of 73.82 CFM, always cool your rig.

Fluid Dynamic Bearing with Extra Nut Fixing
The noise of traditional FDB structure is produced by vibration of the bearing. The vibration also affects the fan longevity.

The exclusive structural design optimizes the original fluid dynamic bearing (FDB) design that decreases noise level of bearing and enhances durability by extra nut fixing structure.

Copper Tube
Moreover, with the use of Copper Tube, it has excellent resistance to scaling, high mechanical strength and lifetime resistance.

Amplify Your Creation With Fan Hub
The hub features 4 expansion ports and supports up to 18 MPG EZ120 ARGB fans. It offers flexibility in both configuration and expansion, and maximizes airflow and lighting demands simultaneously.

Total Control In Your Hands
Everything ranging from MPG EZ120 ARB, fan speed to the ARGB lighting control can be adjusted through the MSI Center.

MSI MPG EZ120 ARGB WHITE-3W. Type: Fan, Fan diameter: 12 cm, Maximum air pressure: 2.56 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: White

How to use

Attach each fan to the chassis or radiator using the standard mounting holes. Connect fans together using the magnetic connector blocks to form a chain; one block provides fan power and speed control while the other handles ARGB signal and synchronization. Plug the single main cable from the chain into an available motherboard fan header or into the provided fan hub. If required, use the daisy-chain cable to route a connection to a fan on the opposite side of the chassis. Install the fan hub in a convenient location and connect its main cable to the motherboard or compatible controller.

Recommendations

For reliable ARGB synchronization, connect the ARGB block to an addressable RGB header on a compatible motherboard or control it via MSI Center. When installing multiple fans, use the fan hub to centralize connections and avoid overloading motherboard headers. Ensure airflow orientation is correct for your cooling layout (intake vs exhaust) and tighten mounting screws evenly to prevent vibration.
