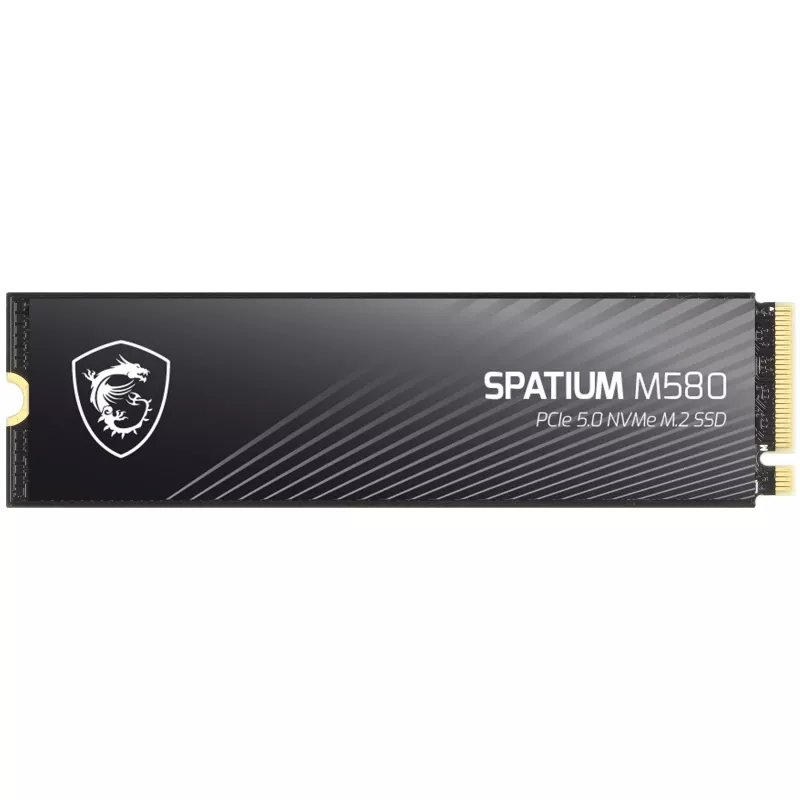

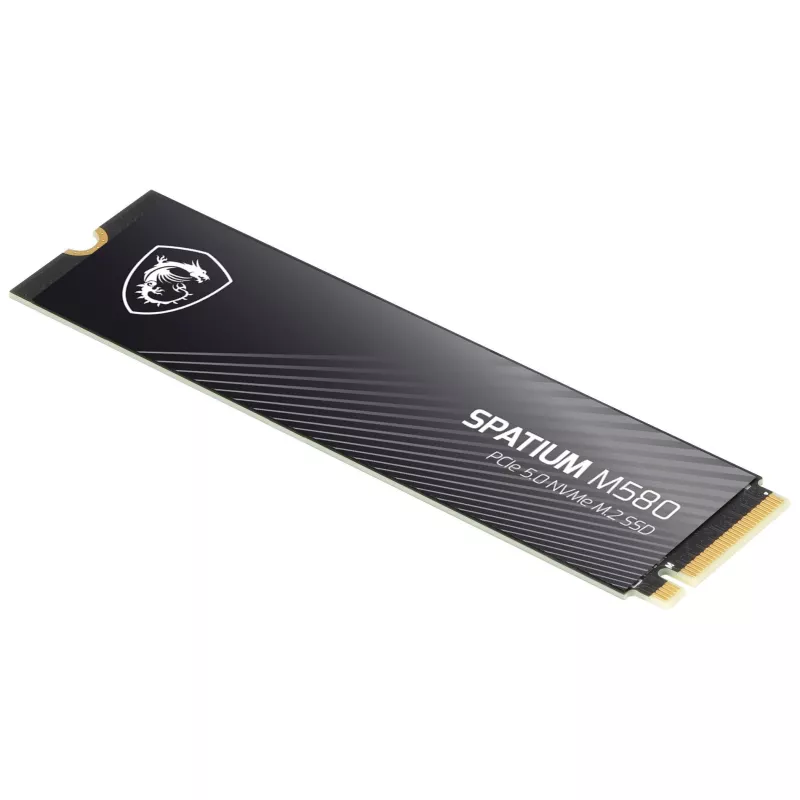

MSI Spatium M580 2TB M.2 2280 PCIe Gen5 NVMe SSD

With blistering sequential read speeds up to 12,400 MB/s, the MSI Spatium M580 2TB obliterates bottlenecks for 4K video editing, massive file transfers, and next-gen gaming. Built on the Phison PS5026-E26 controller and 3D TLC NAND, this PCIe Gen5 x4 NVMe 2.0 drive delivers a massive leap over Gen4 solutions.

Overview

The Spatium M580 is MSI's flagship M.2 2280 SSD, engineered for enthusiasts and professionals who demand uncompromising performance. Its integrated passive heatsink ensures sustained operation under heavy workloads, while the 4GB LPDDR4 DRAM cache and 1,300,000 random IOPS keep latency at bay. With a 1400 TBW endurance rating and 1.6 million hours MTBF, it's built to last.

What stands out

• PCIe Gen5 x4 interface with NVMe 2.0 protocol
• Sequential writes up to 11,800 MB/s
• Integrated passive heatsink for consistent thermal performance
• 4GB LPDDR4 DRAM cache for rapid access
• End-to-end data protection and S.M.A.R.T. monitoring

Technical details

• Capacity: 2 TB
• Form factor: M.2 2280
• NAND: 3D TLC
• Controller: Phison PS5026-E26
• Random read/write: up to 1,300,000 IOPS
• TBW: 1400 TB
• MTBF: 1,600,000 hours
• Operating temperature: 0°C to 70°C
• Power consumption (active): ~9.5W
• Shock resistance: 1500G/0.5ms

Our verdict

The MSI Spatium M580 2TB is a true PCIe Gen5 powerhouse, delivering top-tier speeds and rock-solid reliability for demanding users who refuse to compromise.
