Multibrackets M Pro Series carcasa 55 inch pared central negro acero horizontal/vertical

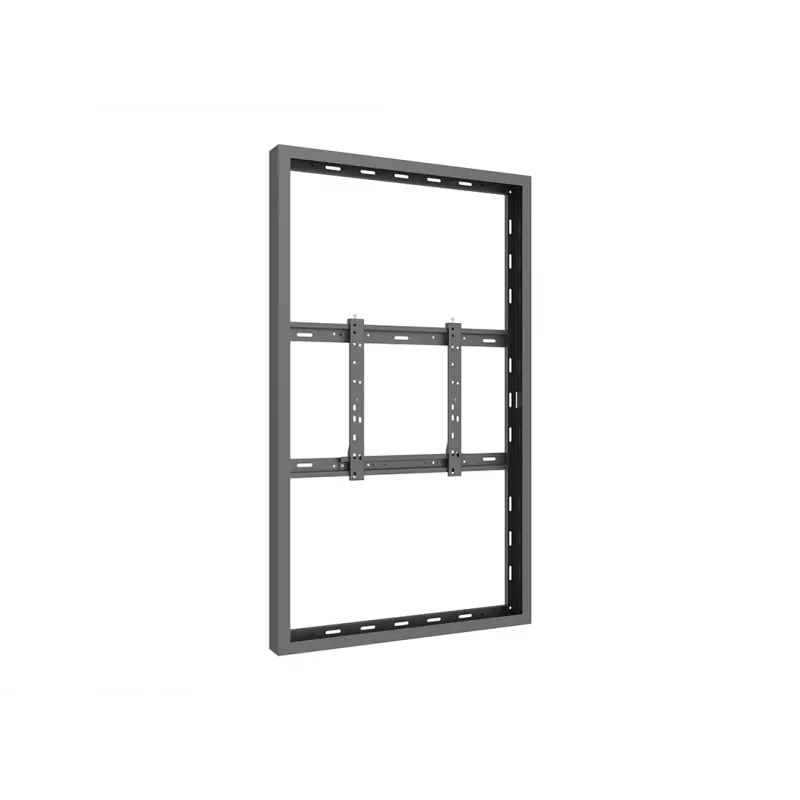

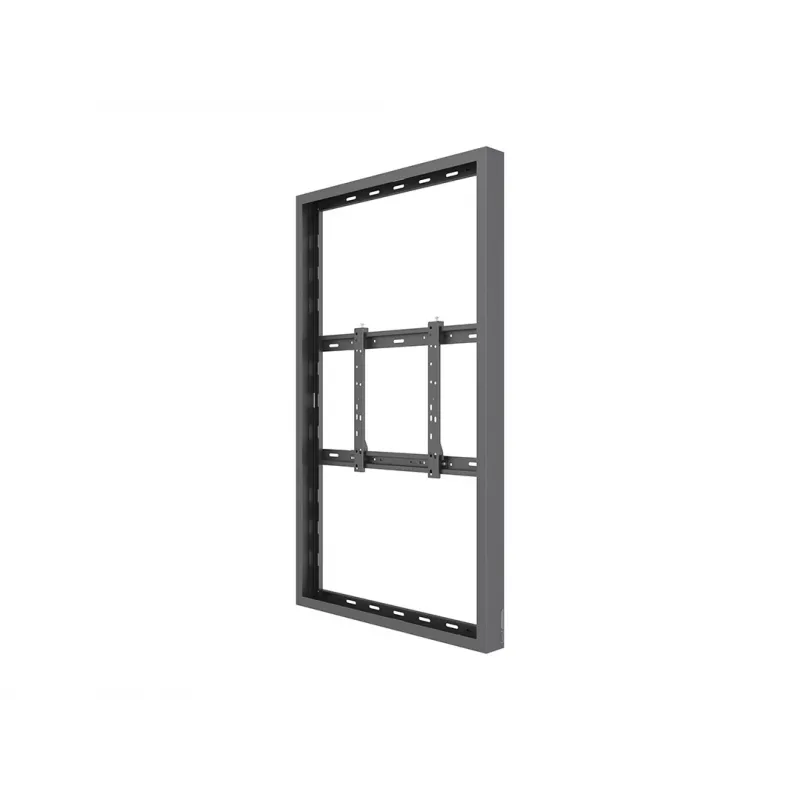

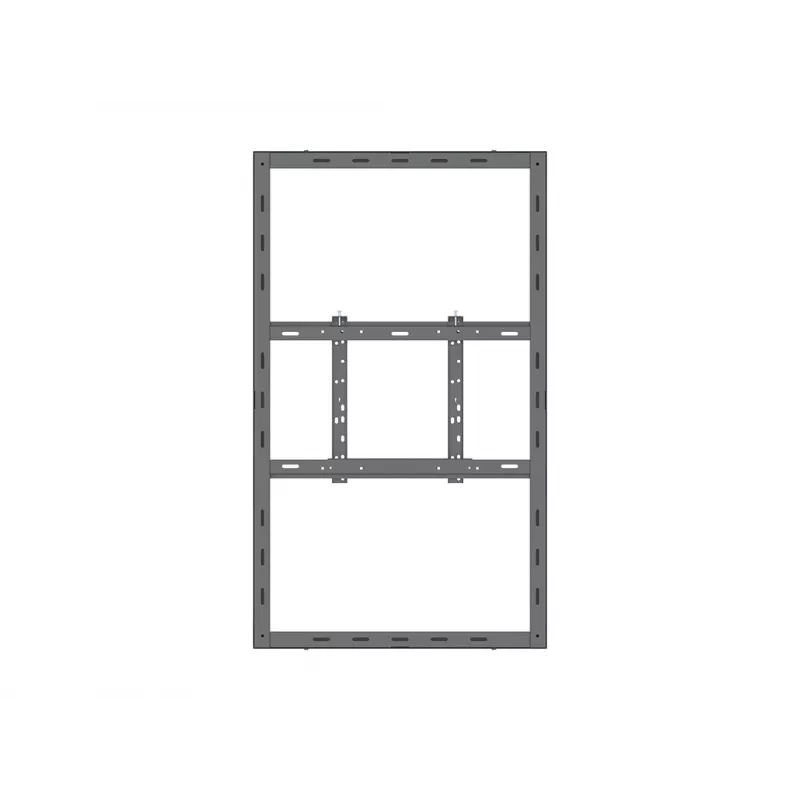

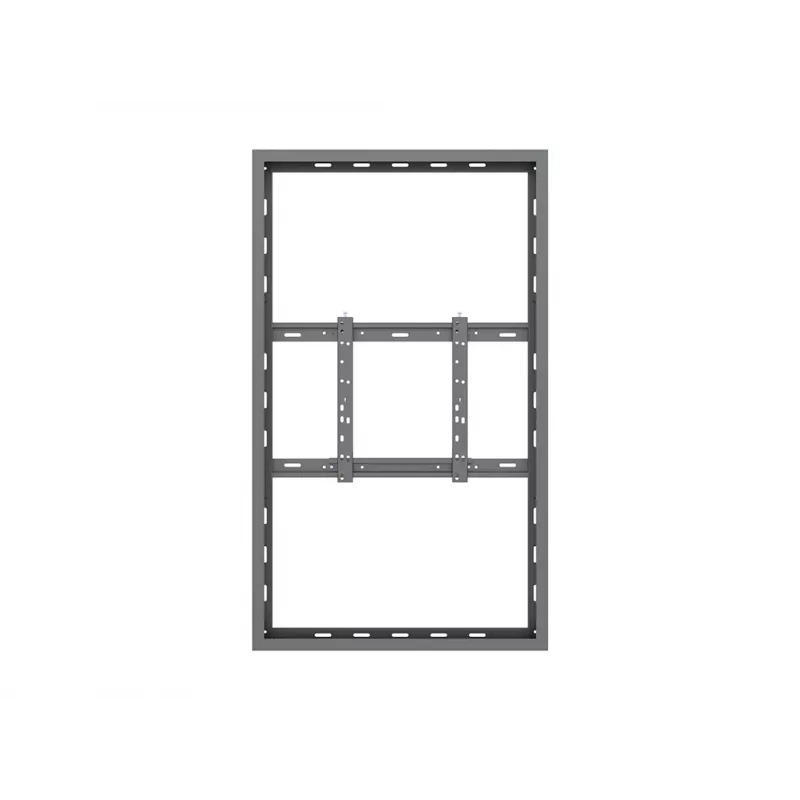

The Multibrackets M Pro Series Enclosure 55" Wall Medium Black is a steel casing for 55" signage displays that supports both landscape and portrait mounting. Designed for professional and commercial environments, it accommodates screens up to 55", a maximum VESA of 600 x 400 and a weight up to 25 kg. The depth-adjustable exterior frame and reversible hinges provide compatibility with a wide range of displays while maintaining a minimal, unobtrusive appearance.

Advantages

This enclosure offers adjustable depth to fit different screen depths, integrated passive cooling vents with options for active thermal management, and robust steel construction for secure installation. Reversible hinges and tool-free on-wall storage features simplify installation and service access. Tamperproof security hardware and design compensation for uneven walls keep the front frame flat and protect the display investment.

Suitable for

• Retail digital signage
• Reception and lobby displays
• Corporate meeting room screens
• Wayfinding and information displays in public spaces

Key specifications

• Maximum screen size: 55"
• Maximum weight capacity: 25 kg
• Product weight: 13 kg
• Maximum VESA: 600 x 400
• Colour: Black

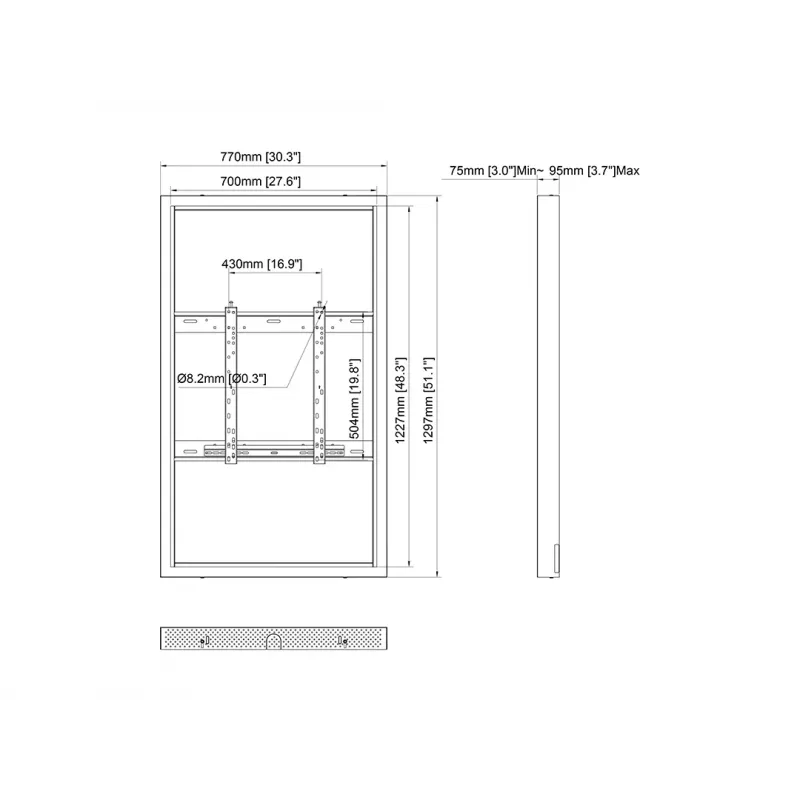

• Dimensions (W×D×H): 820 mm × 120 mm × 1380 mm

How to use

Mount the enclosure on a suitable wall surface following the manufacturer’s instructions and use the reversible hinges to set portrait or landscape orientation. Adjust the exterior frame depth to match the display thickness and secure the display using the appropriate VESA mounting points. Connect necessary cabling through the provided routing options and use the tool-free on-wall storage and Lever Lock mechanism for straightforward service and maintenance access.

Recommendations

For reliable thermal performance, use the integrated passive vents and consider active thermal management when installing high-heat displays or in warm environments. Ensure wall strength and anchoring meet the combined weight of the enclosure and display, and use tamperproof hardware in public areas for added security.
