Navilock NL-60561M antena activa multi-GNSS de 40 dBi con conector TNC, IP67, cable de 5m 60562

With a powerful 40 dBi gain and support for GPS, GLONASS, Galileo, BeiDou, and QZSS across L1, L2, and L5 bands, this Navilock antenna delivers exceptional signal reception for demanding navigation and timing applications. Its rugged IP67-rated housing and 5-meter cable make it suitable for outdoor installations in harsh environments.

Overview

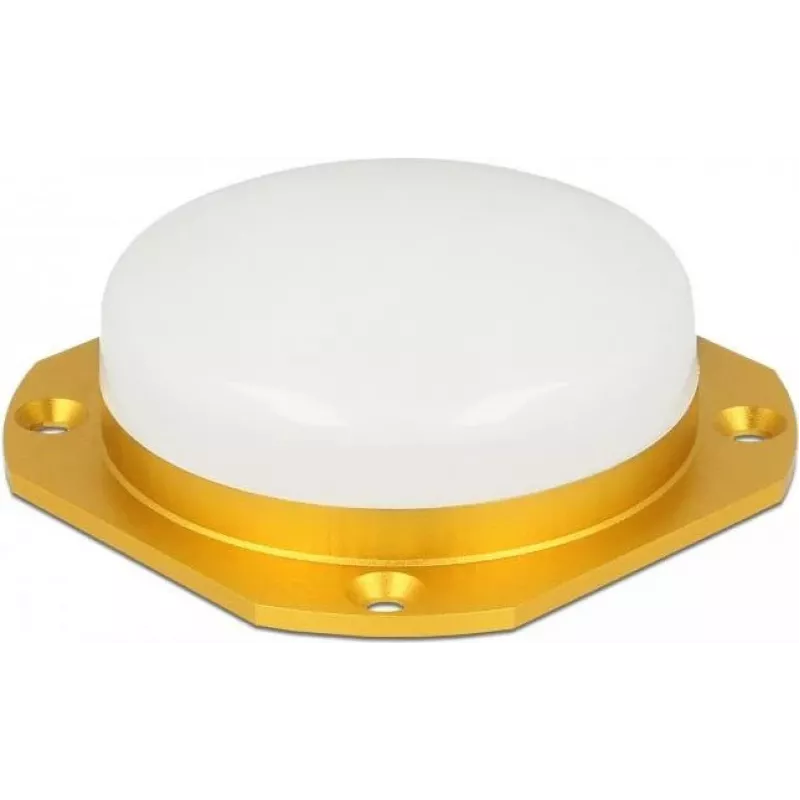

The Navilock NL-60561M is a high-performance active GNSS antenna designed for professional use. It features a TNC male connector, right-hand circular polarization, and a wide operating voltage range of 3 to 18 V DC. The antenna covers all major GNSS frequencies, ensuring compatibility with the latest multi-constellation receivers. Its low noise figure (< 2.0 dB) and VSWR (< 2.0) contribute to clean signal amplification and reliable positioning.

What stands out

• High gain of 40 dBi for weak signal environments
• Supports GPS, GLONASS, Galileo, BeiDou, and QZSS
• Triple-band coverage: L1, L2, and L5
• IP67 waterproof and dustproof enclosure
• 5-meter cable for flexible mounting
• Wide operating temperature range: -40°C to 85°C

Technical details

• Frequency ranges: 1559.052–1616 MHz (L1), 1205.094–1278.75 MHz (L2), 1164–1189 MHz (L5)
• Impedance: 50 Ohm
• Connector: TNC male
• Polarization: Right-hand circular (RHCP)
• Operating voltage: 3.0–18.0 V DC
• Current consumption: 30 mA max
• Noise figure: < 2.0 dB
• VSWR: < 2.0
• Housing material: PC/ABS
• Mounting: Screw or pole mount

Our verdict

An excellent choice for professionals needing a rugged, multi-band GNSS antenna with high gain and reliable performance in all weather conditions.
