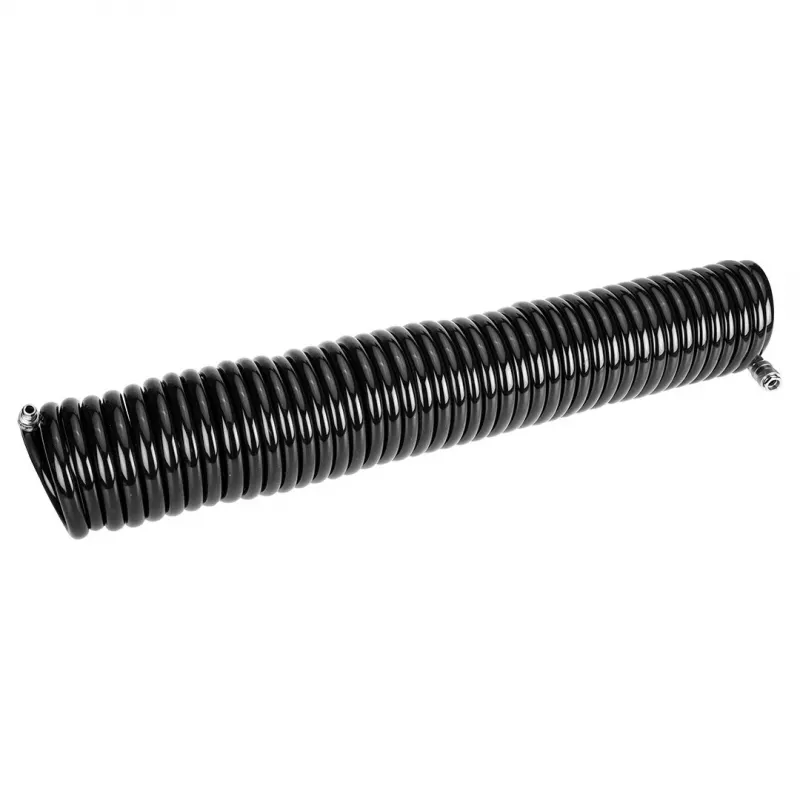

NEO TOOLS Manguera de espiral 10,0 x 15 mm, 15 m, PU

Unlike standard straight hoses that sprawl across the floor and create trip hazards, this NEO TOOLS spiral pressure hose snaps back into a compact coil the moment you release it. The self-retracting design keeps your workspace tidy while delivering compressed air, vacuum, or water exactly where you need it. Built from hydrolysis-resistant polyurethane (TPU-ether), it shrugs off oils, greases, and microbes that would degrade lesser materials, making it a dependable choice for professional pneumatic setups.

Highlights

• Self-retracting spiral form saves space and prevents tripping hazards
• Durable polyurethane (TPU-ether) construction resists oils, greases, and microbes
• Wide temperature tolerance from -35°C to 60°C for year-round use
• Compatible with Festo QS push-in fittings for quick, secure connections
• RoHS compliant for environmental safety

In daily use

With a 10 mm outer diameter and 7 mm inner diameter, this hose balances flow capacity and flexibility. The 15-meter length extends reach across large work areas, while the spiral design returns to a compact coil when released. Its Shore A 90 hardness ensures resilience against abrasion, and the minimum bend radius of 30 mm allows tight routing without damage. Operating pressures up to 10 bar at room temperature cover most pneumatic tools, and vacuum capability adds versatility for material handling or suction applications.

Full specifications

• Material: Polyurethane (TPU-ether)
• Outer diameter: 10 mm
• Inner diameter: 7 mm
• Wall thickness: 1.5 mm
• Length: 15 m
• Colour: Blue
• Max operating pressure at 20°C: 10 bar
• Max operating pressure at 40°C: 7 bar
• Max operating pressure at 60°C: 5 bar
• Min operating pressure: -0.95 bar (vacuum)
• Operating temperature range: -35°C to 60°C
• Hardness: Shore A 90 +/- 2
• Minimum bend radius: 30 mm
• Resistance: Hydrolysis, microbes, oil, grease, oxygen, ozone
• Compatibility: Festo QS push-in fittings
• Certifications: RoHS compliant

Final note

For workshops that demand both durability and order, this spiral hose delivers reliable performance without the clutter.
