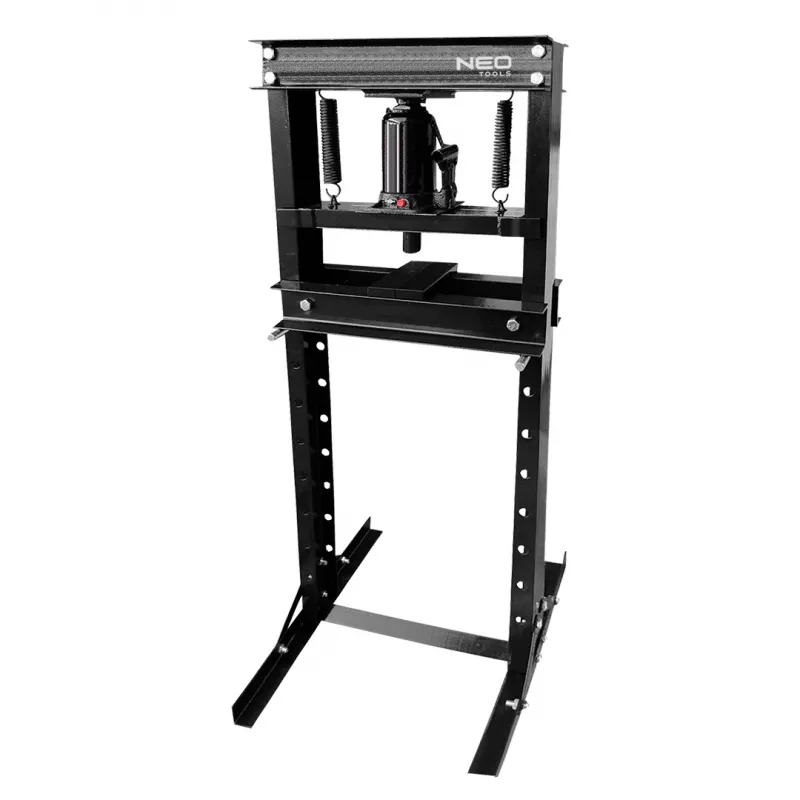

NEO TOOLS Prensa hidráulica de taller de 20 toneladas, bastidor en H, manual, mesa ajustable, rojo/negro

In a busy automotive workshop, a mechanic needs to press bearings, straighten shafts, or remove stubborn bushings. The NEO TOOLS 20 Ton Hydraulic Press delivers the force and stability required for these demanding tasks. Its robust H-frame construction and manual hydraulic system make it a reliable workhorse for professionals and serious DIYers alike.

Key specifications

• Pressing force: 20 Ton (20,000 kg)
• Operation type: Manual hydraulic, single-speed pump
• Working range (height): 0 - 950 mm
• Working width: 500 mm
• Piston stroke: 185 mm
• Frame type: H-Frame, high-strength steel
• Adjustable working bed: Yes, 8-level height adjustment
• Pressure gauge: Integrated
• Overload protection: Safety valve
• Included accessories: 2 press plates
• Mounting: Floor standing
• Colour: Red / Black

Why choose it

The NEO TOOLS 20T press combines heavy-duty performance with user-friendly features. The adjustable bed allows you to handle workpieces of various sizes, while the integrated pressure gauge ensures precise control. The safety valve prevents overloading, protecting both the tool and the operator. Its solid steel construction guarantees long-term durability even under frequent use.

Ideal use cases

• Pressing bearings, bushings, and gears
• Straightening bent metal parts
• Bending and forming metal sheets
• Removing or installing pins and shafts
• General workshop and industrial maintenance

Good to know

The press is designed for floor standing installation and requires manual operation via the pump handle. It comes with two press plates for versatile workpiece support. The 8-level adjustable bed enables precise positioning for different tasks, and the integrated pressure gauge allows monitoring of the applied force.
