Neomounts FPMA-D1330SILVER brazo para monitor 10-30"

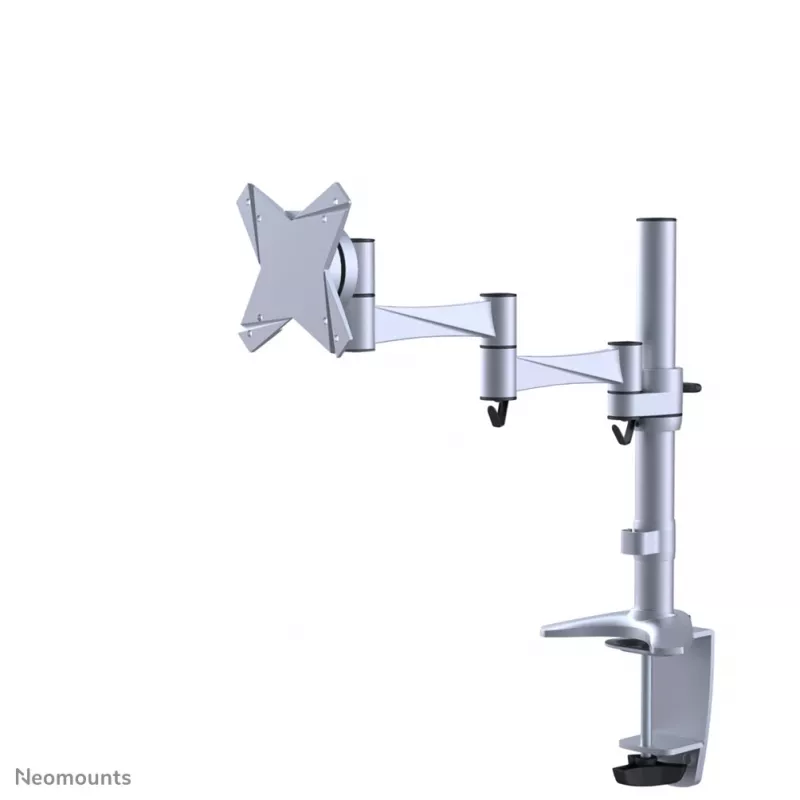

The Neomounts desk mount FPMA-D1330SILVER is a silver, single-monitor arm designed for flat screens up to 30" (76 cm). It supports VESA patterns 75x75 and 100x100 mm and is supplied with all necessary installation material. The mount can be fixed to a desk using a clamp or grommet, offering a compact solution to save desk space while improving ergonomic positioning.

Advantages

This desk monitor arm provides a wide range of motion with 30° tilt, 180° swivel and 360° rotation, plus manual height adjustment from 0 to 40 cm and depth adjustment from 4 to 43 cm. An integrated cable management system conceals and routes cables from the mount to the screen. The arm supports one display with a maximum weight capacity of 9 kg and helps reduce neck and back strain by enabling ergonomic positioning.

Suitable for

• Office workstations where desk space is limited
• Reception desks and counters
• Home offices requiring ergonomic monitor adjustment
• Screens compatible with VESA 75x75 or 100x100 mm

Key specifications

• Model: FPMA-D1330SILVER
• Maximum screen size: 30" (76 cm)
• Supported VESA: 75 x 75 mm and 100 x 100 mm
• Maximum weight capacity: 9 kg
• Product weight: 3.1 kg
• Colour: Silver

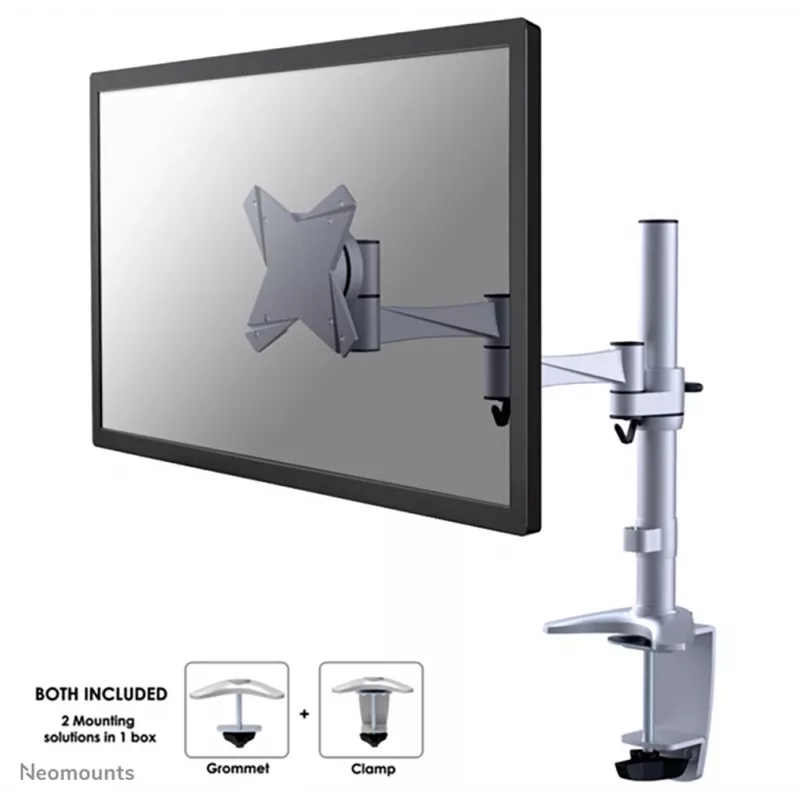

• Mounting options: Desk clamp or grommet

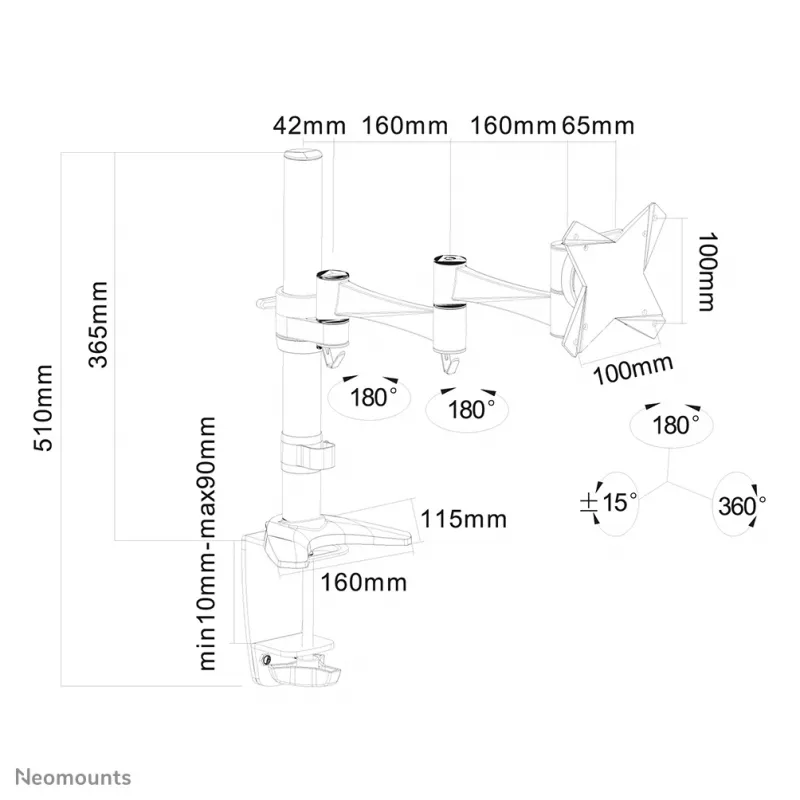

• Adjustment: Tilt 30°, Swivel 180°, Rotate 360°, Height 0–40 cm, Depth 4–43 cm

How to use

Attach the mount to your desk using either the clamp or grommet base according to the included instructions and supplied hardware. Fix the monitor to the VESA plate (75x75 or 100x100 mm) and secure with the provided screws. Adjust the height, depth, tilt, swivel and rotation to the desired viewing position. Use the integrated cable management to route and conceal cables for a tidy workspace.

Recommendations

Ensure your screen falls within the specified size and weight limits (up to 30", max 9 kg) and fits a supported VESA pattern before installation. Tighten mounting hardware securely and check adjustments periodically to maintain stable positioning.
