Neomounts FPMA-D1330WHITE brazo para monitor 25,4-76,2 cm (10-30")

The Neomounts desk mount FPMA-D1330WHITE is a tilt-, swivel- and rotatable monitor arm for flat screens up to 30". It supports VESA 75x75 and 100x100 patterns, offers clamp or grommet mounting on the desk and includes integrated cable management. The arm is height adjustable and designed to save desk space while providing ergonomic positioning for office or reception use.

Advantages

The FPMA-D1330WHITE provides 30° tilt, 180° swivel and 360° rotation to set the screen to the preferred viewing angle. Manual height adjustment and adjustable depth improve ergonomics and workstation layout. Built-in cable routing keeps cables concealed for a tidy appearance. The white finish suits modern office environments.

Suitable for

• Single flat screens up to 30" (VESA 75x75 / 100x100)
• Desks where clamp or grommet mounting is required
• Office workstations, reception areas and counters

Key specifications

• Model: FPMA-D1330WHITE
• Maximum screen size: 30"
• VESA compatibility: 75 x 75 mm and 100 x 100 mm
• Maximum weight capacity: 9 kg
• Product weight: 3.1 kg

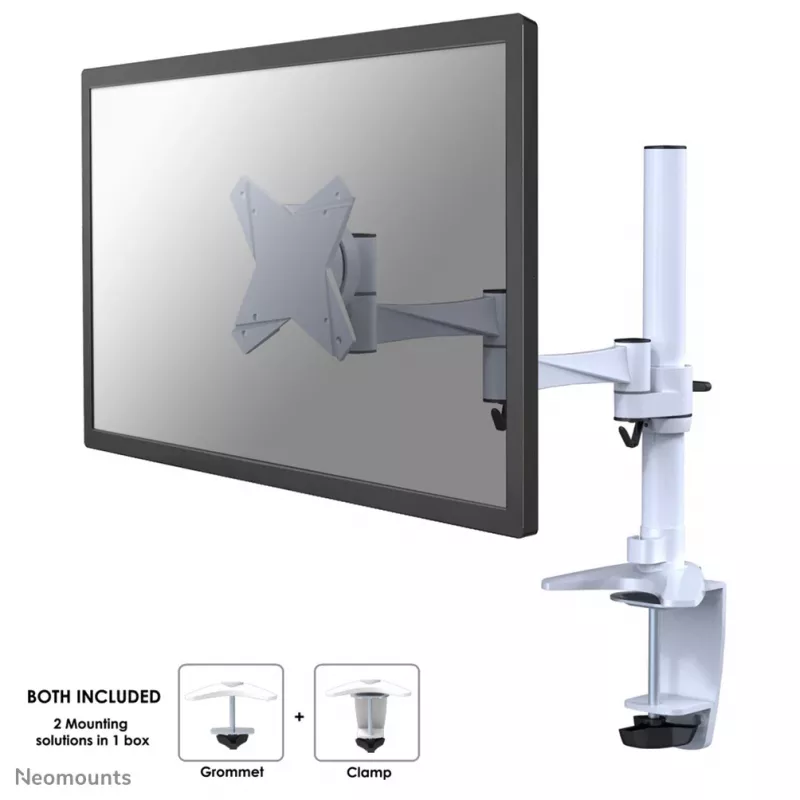

• Mounting options: desk clamp or grommet

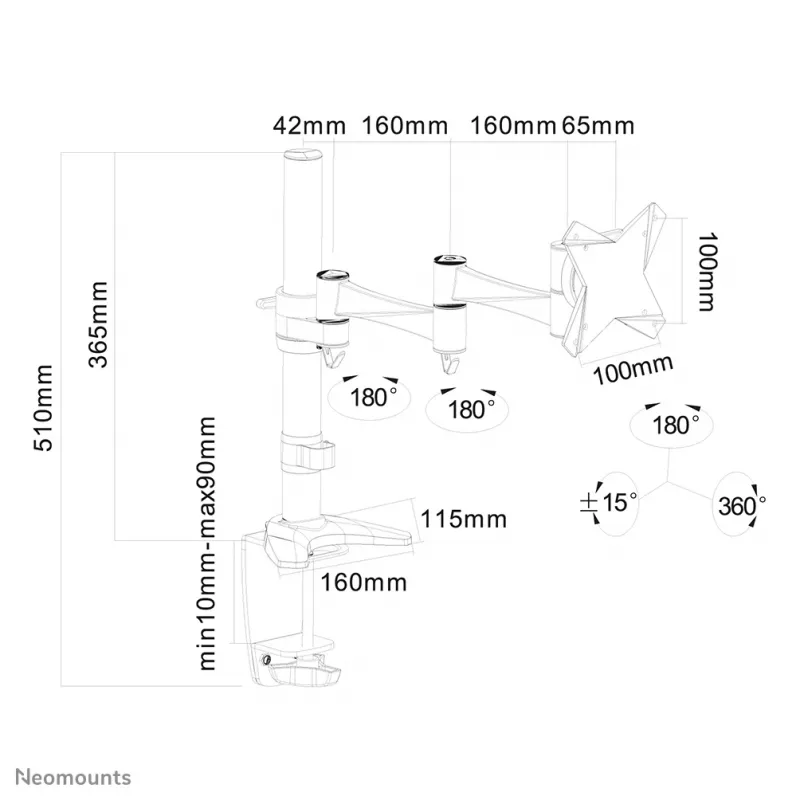

• Adjustments: tilt 0–30°, swivel 180°, rotation 360°, height 0–40 cm, depth 4–43 cm
• Colour: White

How to use

Attach the mount to the desk using the included clamp or grommet hardware, then fix the monitor to the VESA plate. Adjust the arm height, depth, tilt, swivel and rotation to position the screen at a comfortable viewing angle. Route the monitor cables through the integrated cable management channels to keep them concealed. All installation material is supplied with the product.

Recommendations

Use the arm to position the top of the screen at or slightly below eye level and maintain an arm's length distance from the display to reduce neck and eye strain. Do not exceed the stated maximum weight of 9 kg and ensure the screen VESA pattern matches 75x75 or 100x100 mm; use a VESA adapter plate if needed.
