Neomounts FPMA-D750Schwarz2 Brazo de monitor 10-32 pulgadas - resorte de gas - Topfix - tope de 180°

The Neomounts desk mount FPMA-D750BLACK2 is a tilt-, swivel- and rotate-capable arm for flat screens up to 32" (81 cm). It mounts to a desk using a top-fix clamp or grommet and includes all necessary installation hardware. The arm supports VESA patterns 75 x 75 mm and 100 x 100 mm and carries screens weighing between 2 and 8 kg. Height adjustment is managed by a gas spring with a range of 19–50 cm and the arm provides depth adjustment from 0 to 53 cm.

Advantages

The mount offers wide adjustability with tilt (up to 170°), swivel (up to 180°) and rotate (up to 180°) movements plus a 180° stop mechanism to control range. Integrated cable management conceals and routes cables from the mount to the screen for a neater workspace. Its compact clamp or grommet fixing saves desk space while allowing comfortable ergonomic positioning to reduce neck and back strain.

Suitable for

• Home and office desks where space-saving monitor placement is required
• Reception counters and customer service desks
• Workstations using 10"–32" monitors that meet VESA 75x75 or 100x100

Key specifications

• Model: Neomounts FPMA-D750BLACK2
• Maximum screen size: 32" (81 cm)
• Weight capacity: 2–8 kg
• VESA compatibility: 75 x 75 mm, 100 x 100 mm

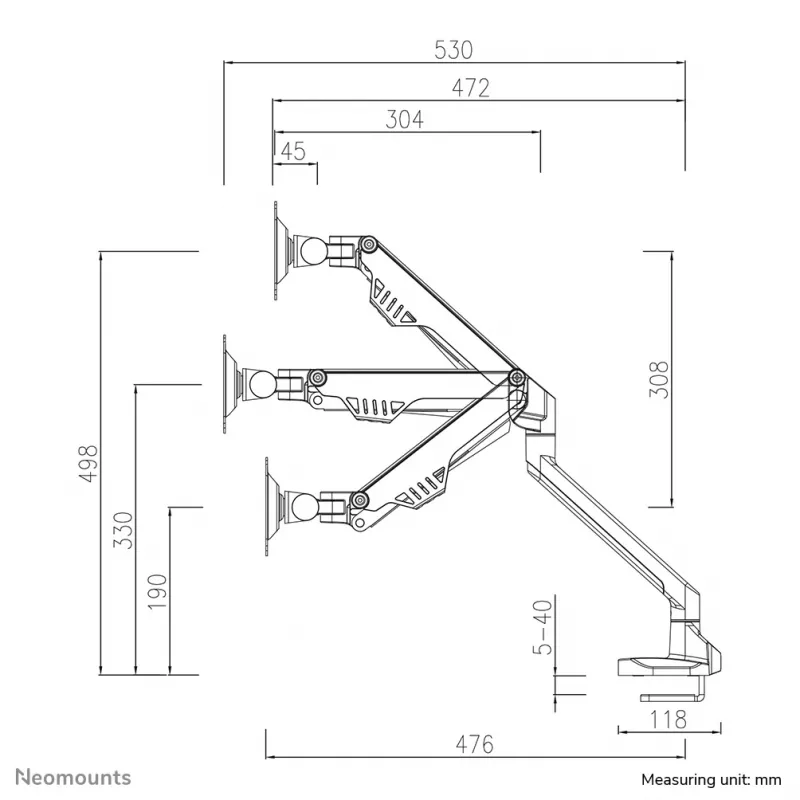

• Height adjustment: 19–50 cm (gas spring)
• Depth adjustment: 0–53 cm
• Movement: tilt up to 170°, swivel up to 180°, rotate up to 180°; 180° stop mechanism

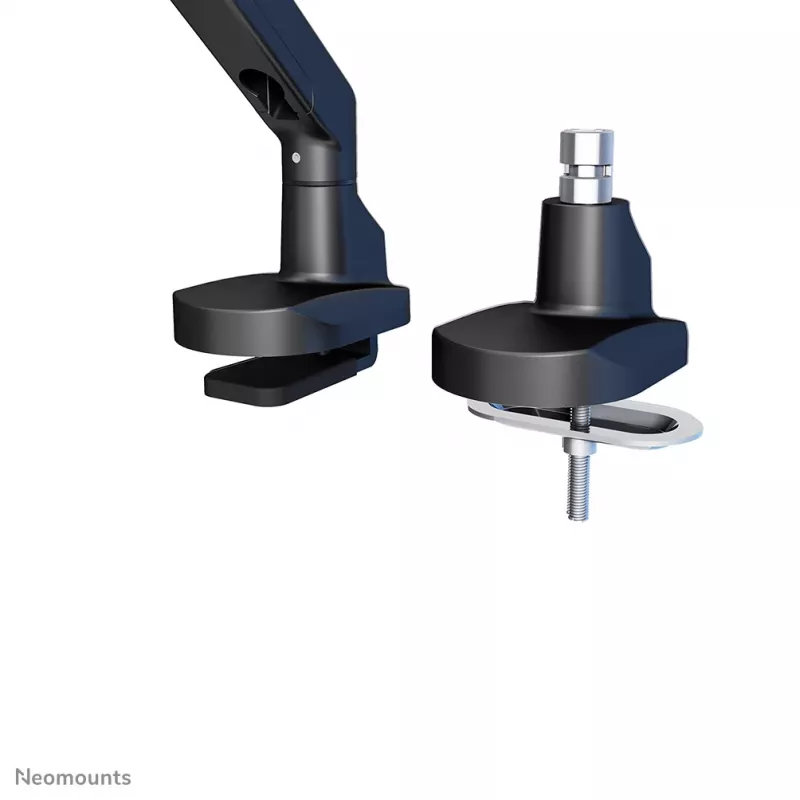

• Mounting: desk clamp or grommet
• Colour: Black

How to use

Secure the arm to your desk using either the supplied top-fix clamp or the grommet mounting option, following the included installation instructions. Attach the monitor to the VESA plate (75x75 or 100x100 mm) and route cables through the integrated cable management channel. Adjust the height with the gas spring to a comfortable viewing level (19–50 cm range), then set tilt, swivel and rotation to the desired angle. Use the 180° stop mechanism to limit movement where needed.

Recommendations

Verify your monitor's weight and VESA pattern before installation. For stable mounting ensure the desk edge or grommet hole is compatible with clamp or grommet specifications and tighten fittings securely. Consider using Neomounts VESA adapter plates if your monitor has a non-standard hole pattern.
