Neomounts FPMA-VESA100 adaptador VESA 10-30 pulgadas

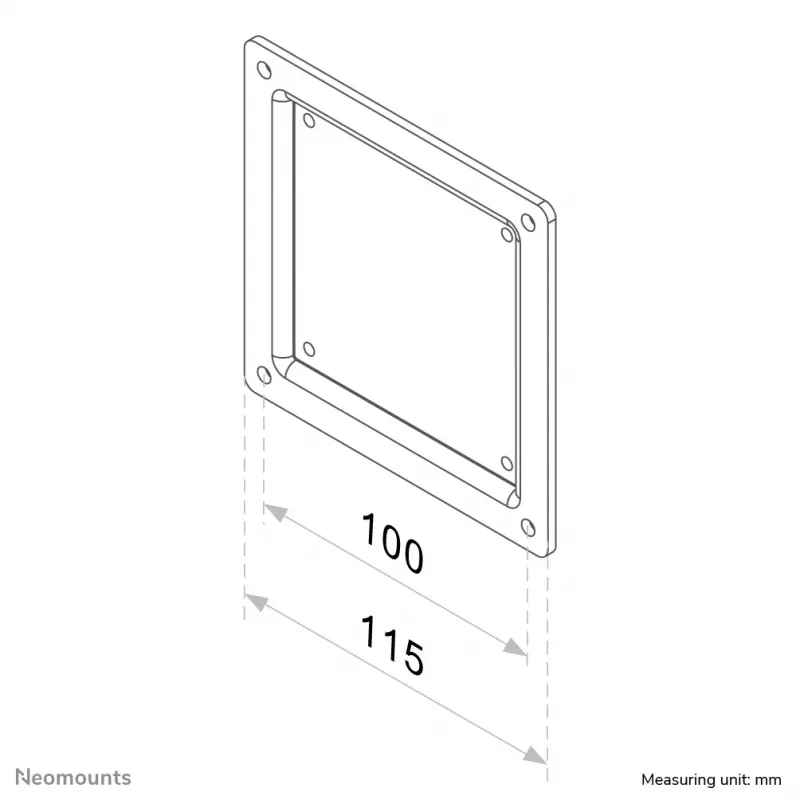

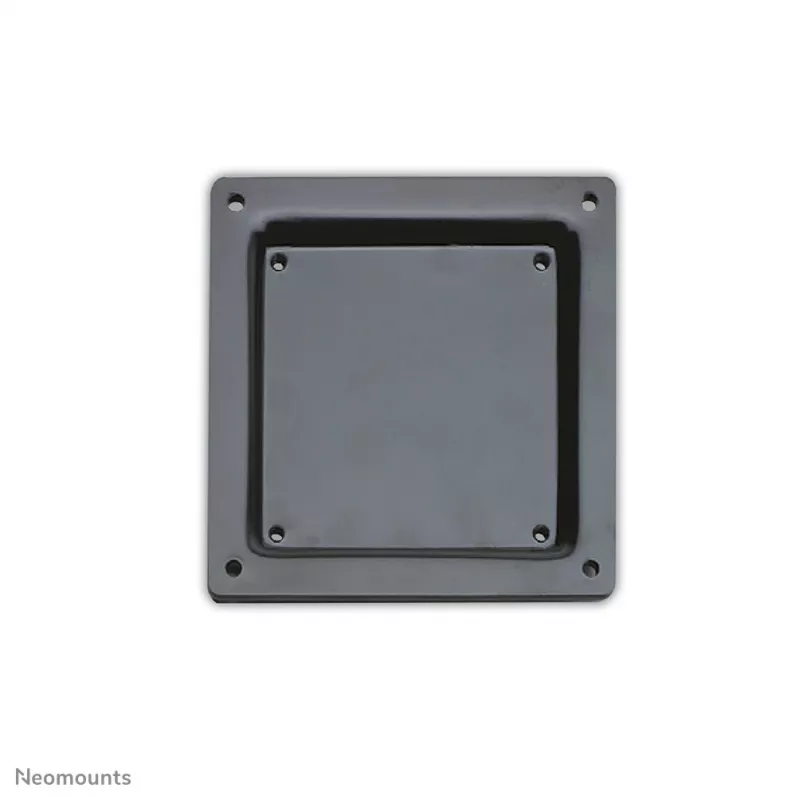

The Neomounts VESA adapter FPMA-VESA100 converts a 75x75 mm VESA interface to fit displays with a 100x100 mm hole pattern. It is designed for situations where a display requires a different VESA pattern to use a wall, desk, or ceiling mount and is compatible with screens up to 30" (75 cm) diagonal.

Advantages

The adapter supports monitors up to 30" and carries up to 25 kg per screen. With a thickness of only 3 mm it provides a low-profile solution that maintains stability. The product includes all necessary installation hardware and can be combined with other Neomounts VESA adapter plates to cover different hole patterns.

Key specifications

• Model: FPMA-VESA100
• Input VESA: 75x75 mm
• Output VESA: 100x100 mm
• Maximum screen size: 30" (75 cm)
• Maximum load: 25 kg per screen
• Thickness: 3 mm
• Installation material: included

How to use

Attach the adapter to the display using the corresponding 100x100 mm holes, then secure the 75x75 mm mount to the adapter. Use the supplied installation hardware and follow the mount manufacturer’s instructions to ensure correct alignment and safe fastening. Verify the weight and VESA pattern compatibility before installation.

Recommendations

Check that the display’s VESA pattern is 100x100 mm and the screen weight does not exceed 25 kg. If a different hole pattern is required, consider appropriate Neomounts adapter plates. Use proper tools and, for heavy displays, ask for assistance during installation.
