Neomounts NS-WMB300PSchwarz soporte de pared para menú 40-52 pulgadas – inclinable – vertical

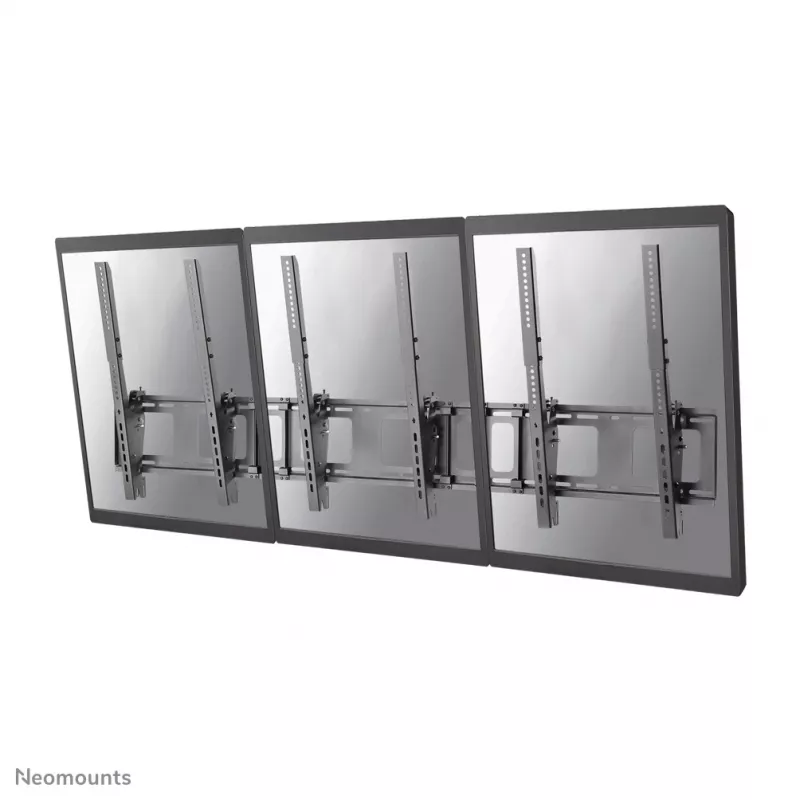

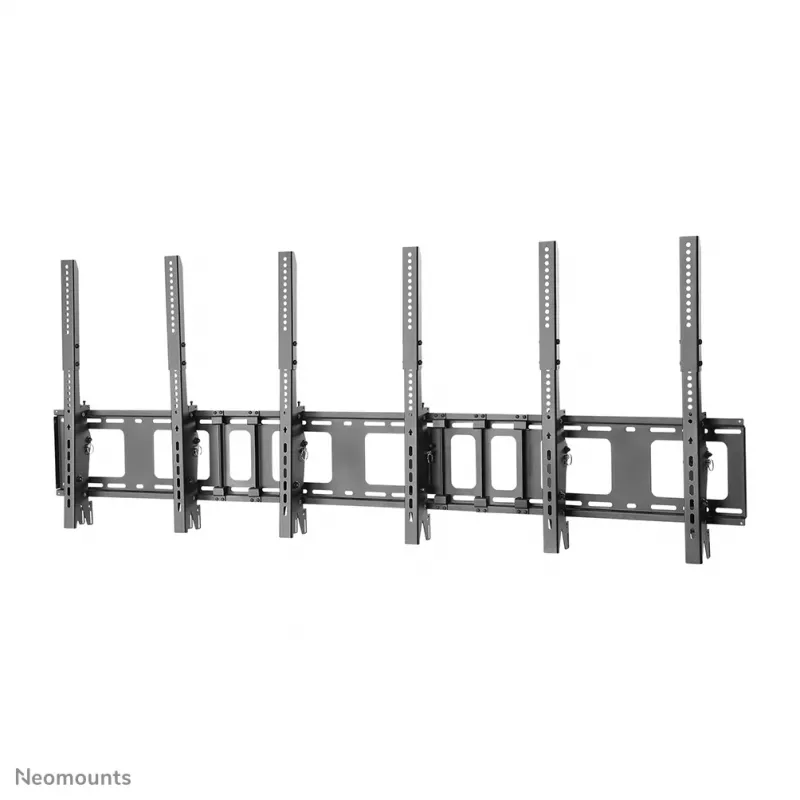

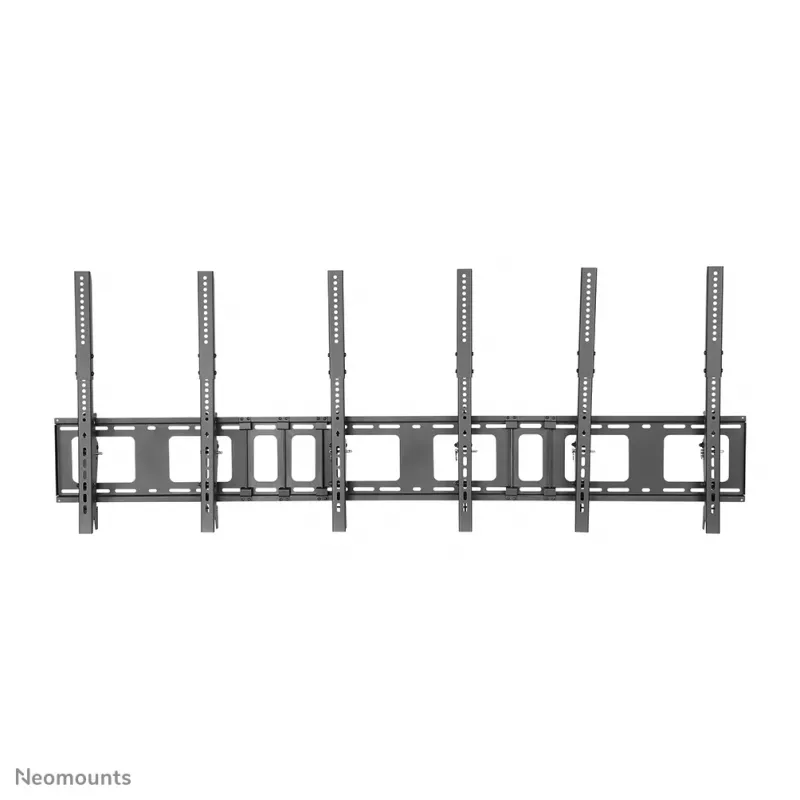

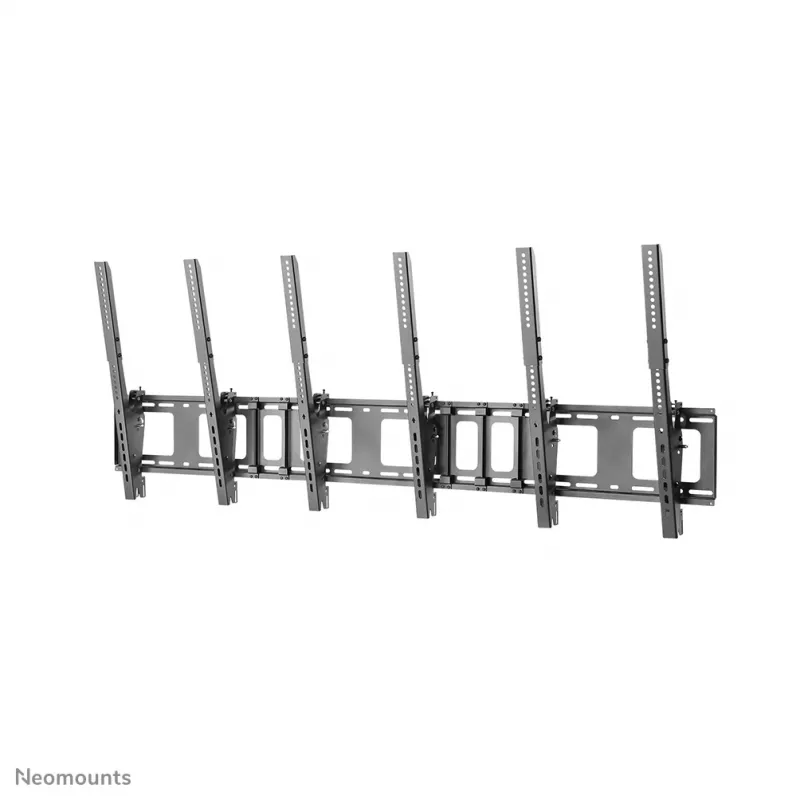

The Neomounts menu board wall mount NS-WMB300PBLACK is a tiltable vertical wall bracket for three flat screens up to 52" (132 cm). Designed for menu or information displays, this black wall mount supports VESA patterns from 200 x 200 mm up to 400 x 600 mm and accepts up to 50 kg per screen. The mount offers a shallow mounting depth of 7.8 cm and a tilt range of 0° / -5° / -10° for flexible viewing angles.

Advantages

This three-screen wall mount provides stable, space-saving vertical installation for menu boards and information displays. The tiltable mechanism enables straightforward adjustment of viewing angle to reduce glare and optimise visibility. With compatibility across common VESA patterns and a 50 kg per-screen capacity, the mount fits a wide range of flat screens between 40" and 52" while all necessary installation material is included.

Suitable for

• Restaurants, cafés and fast-food menu displays
• Retail and point-of-sale information boards
• Corporate reception or lobby digital signage
• Educational or public information screens in corridors

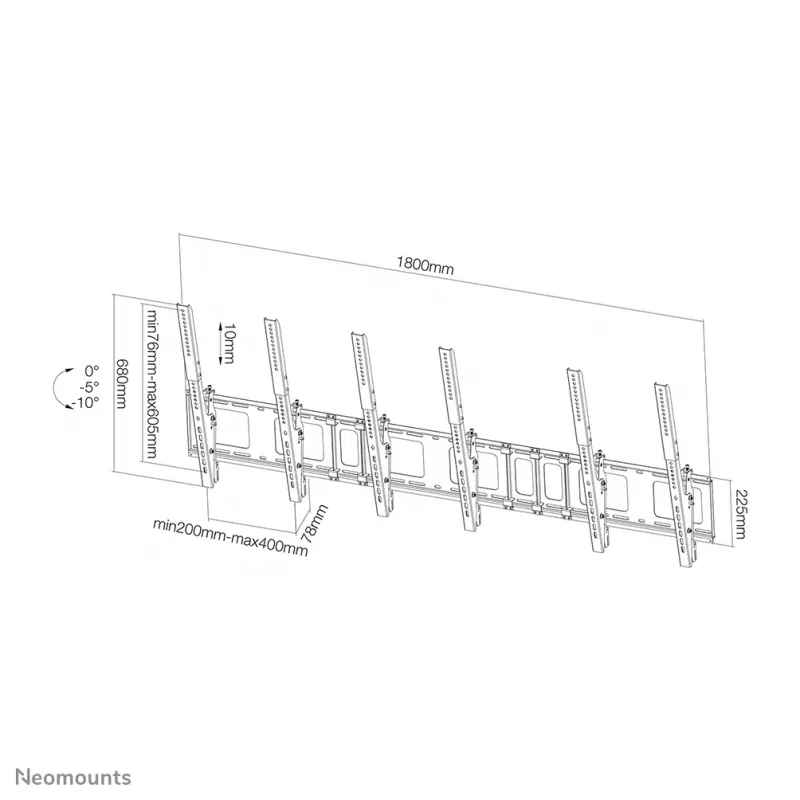

Key specifications

• Model: Neomounts NS-WMB300PBLACK
• Screen support: up to 3 screens, each up to 52" (132 cm)
• Weight capacity: 50 kg per screen
• VESA compatibility: 200 x 200 mm up to 400 x 600 mm (vertical mounting)
• Tilt: 0° / -5° / -10°
• Swivel: 6°
• Mounting depth: 7.8 cm
• Colour: Black
• Product weight: 14.3 kg

How to use

Mount the NS-WMB300PBLACK to a suitable load-bearing wall following the included installation material and instructions. Attach each screen to the bracket using the matching VESA holes (200x200 up to 400x600 mm). After securing the screens, adjust the tilt to 0°, -5° or -10° to achieve the desired viewing angle and ensure the displays are aligned vertically. Verify all bolts are tightened and confirm the wall structure can support the combined weight before regular use.

Recommendations

For safe installation, use appropriate wall anchors for the wall type and ensure the total load does not exceed the mount or wall capacity. Check screen dimensions and VESA pattern compatibility before mounting. Periodically inspect mount fastenings and screen alignment.
