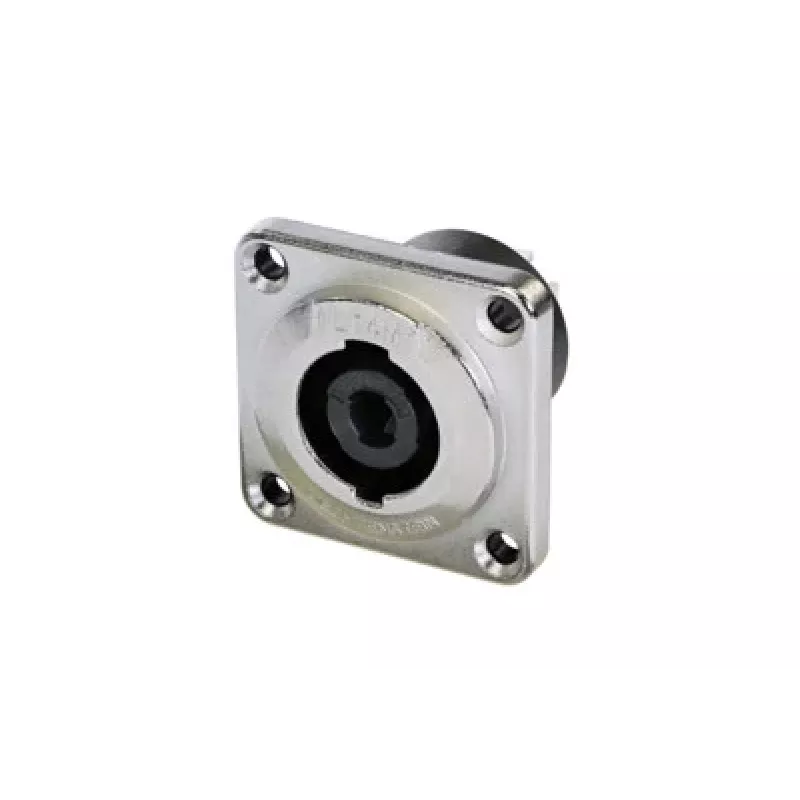

Neutrik NLT4MPXX speakON Conector hembra de montaje de 4 polos, negro, copas de soldadura, 30 A

Delivers 30 A rms per contact at 250 V AC in a D-size panel mount receptacle with quick lock and silver-plated solder cups.

Overview

The Neutrik NLT4MPXX is a 4-pole speakON receptacle designed for panel mounting in professional audio applications. It features a robust black polyamide housing and a quick lock system for secure mating. Termination is via solder cups, accepting wires up to 4 mm² (12 AWG). The connector is rated for 30 A rms per contact and 250 V AC, with a dielectric strength of 4 kVdc and insulation resistance greater than 1 GΩ. It withstands over 5000 mating cycles and operates from -30 °C to +80 °C. The housing meets UL94 V-0 flammability rating.

What stands out

• High current capacity: 30 A rms per contact
• Quick lock latch for secure connection
• Silver-plated contacts for reliable conductivity
• Panel mountable from front or rear, max panel thickness 7 mm
• Durable polyamide housing, UL94 V-0 rated

Technical details

• Connector type: speakON
• Number of poles: 4
• Gender: Female (receptacle)
• Mounting type: Panel mount (front or rear)
• Chassis size: D-size
• Housing material: Polyamide (PA 6.6)
• Housing colour: Black
• Contact plating: Silver
• Termination type: Solder cups
• Rated current: 30 A rms per contact
• Rated voltage: 250 V AC
• Dielectric strength: 4 kVdc
• Insulation resistance: > 1 GΩ
• Temperature range: -30 °C to +80 °C
• Mating cycles: > 5000
• Locking device: Quick lock (latch lock)
• Flammability rating: UL94 V-0
• Wire size: Up to 4 mm² (12 AWG)
• Panel thickness: Max 7 mm (0.27")
• Compliance: IEC 61984, UL 1977

Our verdict

A reliable panel-mount speakON receptacle built for high-power audio systems, offering robust construction and secure quick-lock mating.
