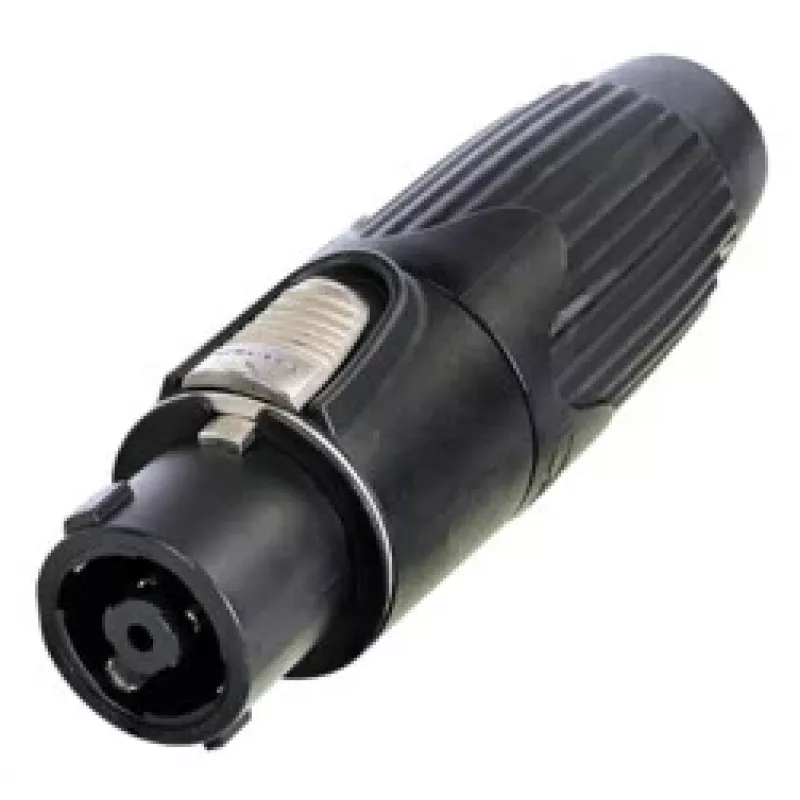

Neutrik NLT8FXX-BAG conector speakON de cable 8 polos, hembra, negro

With a robust 30 A rms current rating per contact and a dielectric strength of 4 kVdc, the Neutrik NLT8FXX-BAG is engineered for demanding professional audio applications. This 8-pole speakON cable connector features screw-type terminals and a quick lock system, ensuring secure and reliable connections in live sound and installed systems.

Overview

The Neutrik NLT8FXX-BAG is a female 8-pole speakON cable connector designed for high-current audio applications. It accommodates cable diameters from 8 to 20 mm and supports wire sizes up to 4 mm² (12 AWG). The connector's silver-plated contacts and polyamide housing provide excellent durability and electrical performance, with a lifetime exceeding 5000 mating cycles.

What stands out

• High current capacity: 30 A rms per contact
• Dielectric strength: 4 kVdc (peak)
• Quick lock system for secure mating
• Wide cable O.D. range: 8 - 20 mm
• Durable polyamide (PA 6.6) housing with UL94 V-0 flammability rating
• Compatible with NL8MPR, NL8MP, NL8FC, NL8FX

Technical details

• Connector type: speakON cable connector
• Number of poles: 8-pole
• Gender: female
• Termination type: screw-type terminals
• Rated voltage: 250 V ac
• Insulation resistance: > 1 GΩ
• Contact plating: silver
• Temperature range: -30 °C to +80 °C
• Safety standards: IEC 61984, UL 1977, CSA C22.2 No.182.3

Our verdict

For professional audio engineers seeking a reliable, high-current 8-pole connector, the Neutrik NLT8FXX-BAG delivers exceptional performance and durability. Its robust construction and industry-standard compatibility make it a top choice for touring and fixed installations.
