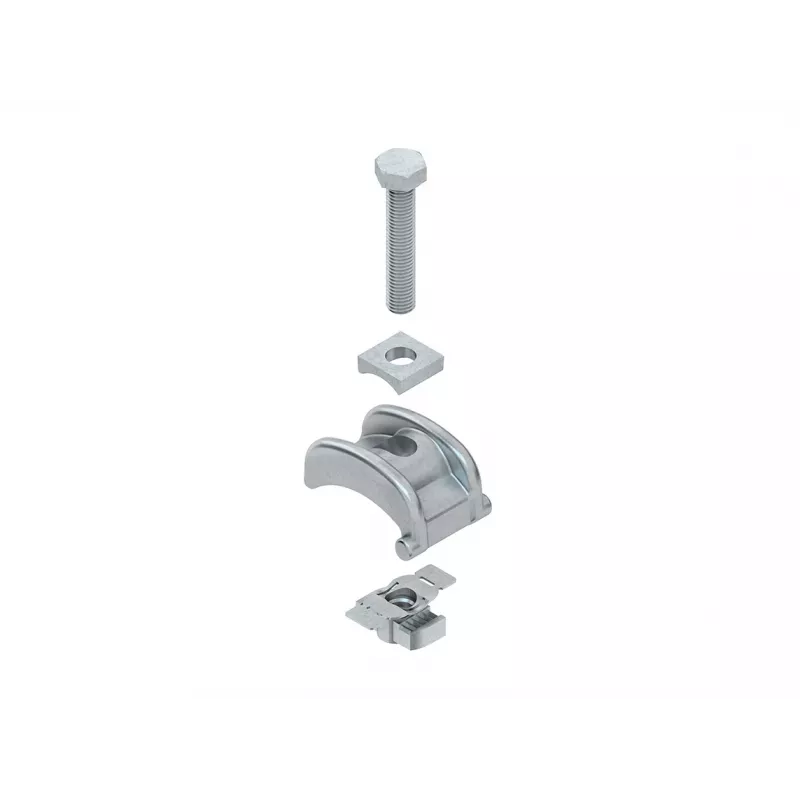

NIEDAX SPPGM30F pinza de perfil de acero galvanizado en caliente, brida 3-30 mm, rosca M8

Hot-dip galvanized to DIN EN ISO 1461, the NIEDAX SPPGM30F profile clamping claw delivers exceptional corrosion resistance for demanding indoor and outdoor installations. Its 3 mm thick claw body and M8 thread compatibility ensure a secure, durable connection to steel profiles, beams, and flanges.

Overview

The SPPGM30F is a profile clamping claw engineered for fastening cable management systems and industrial components to steel structures. Made from steel and hot-dip galvanized to DIN EN ISO 1461, it provides excellent protection against rust and environmental wear. The claw accommodates flange thicknesses from 3 to 30 mm, making it versatile for a wide range of profile sizes. Mounting is straightforward using an M8 bolt or threaded rod, and the compact design (40 x 25 x 40 mm) fits into tight spaces while maintaining high mechanical strength.

What stands out

• Hot-dip galvanized finish to DIN EN ISO 1461 for superior corrosion resistance
• Wide clamping range: 3–30 mm flange thickness
• Compatible with M8 threaded fasteners for secure mounting
• Robust 3 mm steel construction for long-term stability
• Suitable for both indoor and outdoor use

Technical details

• Product type: Profile clamping claw
• Material: Steel
• Surface finish: Hot-dip galvanized (DIN EN ISO 1461)
• Clamping range: 3–30 mm
• Thread size: M8
• Claw material thickness: 3 mm
• Dimensions (L x W x H): 40 x 25 x 40 mm
• Weight: 0.06 kg
• Colour: Silver / metallic grey
• Application: Fastening to steel profiles, beams, and flanges

Our verdict

With its robust galvanized construction and versatile clamping range, the SPPGM30F is a reliable choice for securing cable management systems in challenging environments.
