Niedax WSWV 105.390 conector angular para bandejas de cables, acero galvanizado en caliente, 105 mm de altura lateral, 390 mm de longitud de brazo

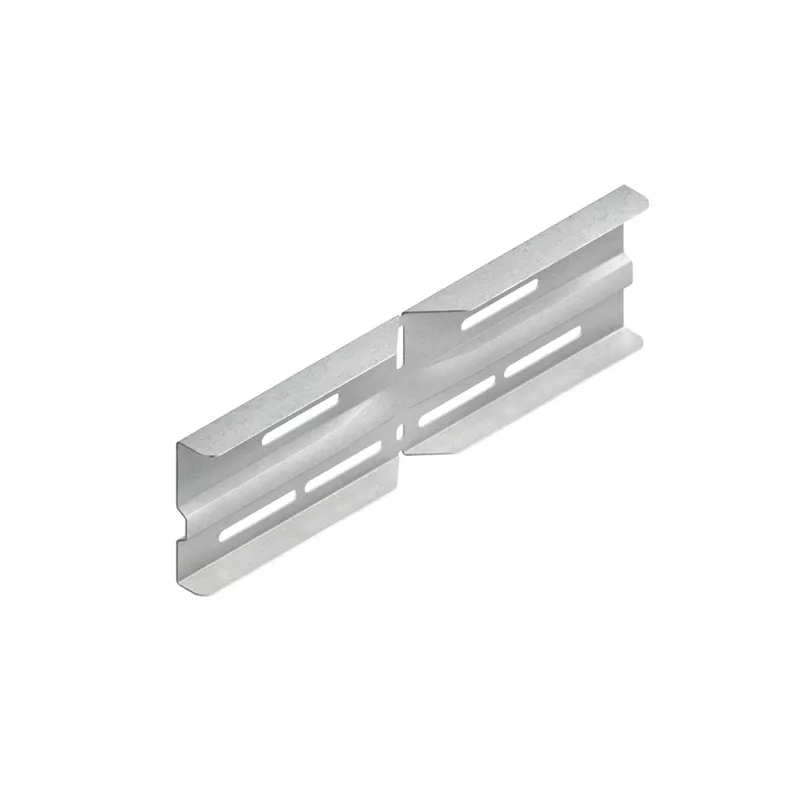

The Niedax WSWV 105.390 Angle Connector is a high-quality accessory designed for creating secure 90° horizontal connections in Niedax wide-span cable tray systems. Manufactured from hot-dip galvanized steel in accordance with DIN EN ISO 1461, this angle connector offers excellent corrosion resistance for both indoor and outdoor use. With a side height of 105 mm and leg length of 390 mm, it provides a robust and reliable solution for routing cables in industrial, commercial, and infrastructure projects.

Advantages

Hot-dip galvanized finish ensures long-lasting protection against corrosion, making it suitable for harsh environments. The 90° angle design simplifies cable tray routing and maintains system integrity. Easy screw connection (fasteners not included) allows for quick installation. Non-combustible material enhances fire safety.

Suitable for

• Horizontal 90° connections in Niedax wide-span cable tray systems
• Industrial, commercial, and infrastructure cable management
• Indoor and outdoor installations requiring corrosion protection

Key specifications

• Product Type: Angle Connector
• Application: Horizontal 90° connection for cable trays
• Compatibility: Niedax wide-span cable tray systems
• Suitable for Tray Side Height: 105 mm
• Material: Steel
• Surface Finish: Hot-dip galvanized
• Corrosion Protection Standard: DIN EN ISO 1461
• Angle: 90 degrees
• Mounting Type: Screw connection (fasteners not included)
• Length (per leg): 390 mm
• Connector Strip Width: 50 mm
• Material Thickness: 3 mm
• Usage Environment: Indoor and Outdoor
• Fire Resistance: Non-combustible
• Packaging Unit: 1 piece

Recommendations

For optimal performance, use with Niedax wide-span cable trays and appropriate fasteners (not included). Ensure proper alignment during installation to maintain system integrity.
