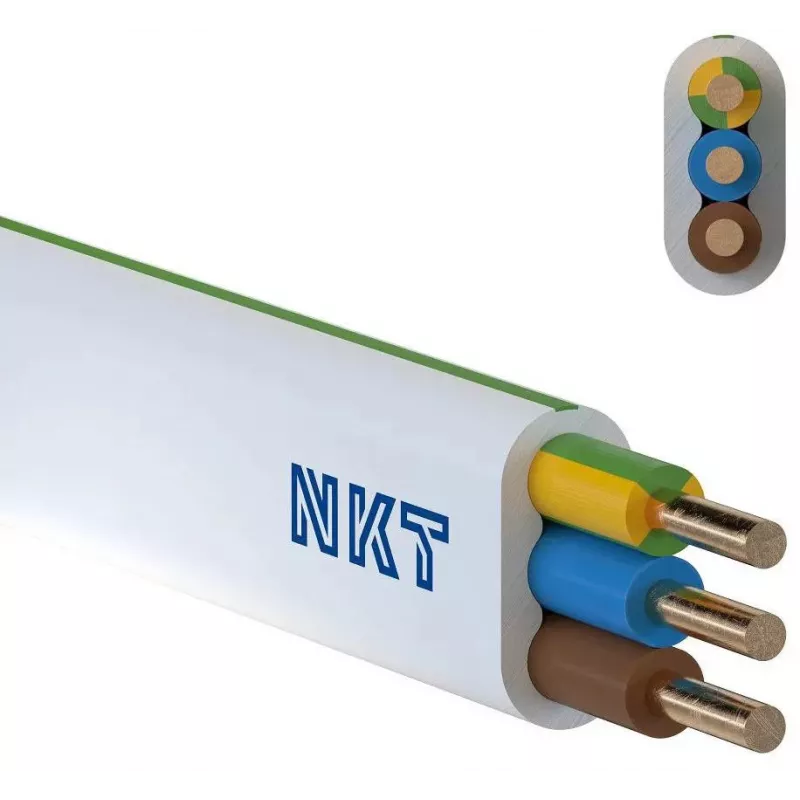

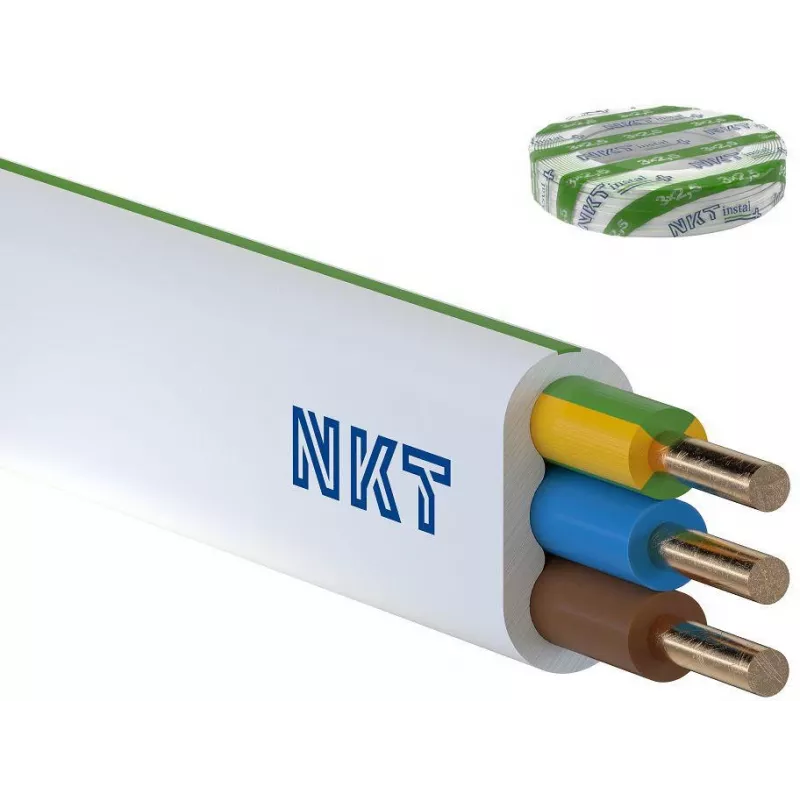

NKT instal PLUS YDYp 3x2,5 mm² Cable eléctrico 100m blanco

The NKT instal PLUS YDYp 3x2.5 mm² power cable is a high-quality flat cable designed for fixed installations in indoor dry and damp environments. With 3 cores (including an earth conductor) and a nominal cross-section of 2.5 mm², it is suitable for lighting, socket outlets, and general power distribution in residential and commercial buildings. The cable is flame retardant according to EN 60332-1-2 and complies with PN-EN 50525-2-31.

Advantages

Reliable copper conductors ensure excellent conductivity and durability. The PVC insulation and sheath provide good mechanical protection and resistance to moisture. The flat design allows for easy installation under plaster or in conduits. The yellow-green earth conductor ensures safety.

Suitable for

• Fixed electrical installations in dry and damp rooms
• Power supply for lighting circuits, sockets, and appliances
• Residential, commercial, and industrial buildings

Key specifications

• Cable type: YDYp
• Number of cores: 3 (2 phases + earth)
• Cross-section: 2.5 mm²
• Conductor material: Copper, solid (Class 1)
• Insulation: PVC
• Sheath: PVC, white
• Rated voltage: 450/750 V
• Length: 100 m
• Flame retardant: Yes (EN 60332-1-2)
• Standard: PN-EN 50525-2-31

Recommendations

Ensure proper cable sizing according to local electrical regulations. Installation should be carried out by a qualified electrician. Avoid exposure to direct sunlight or extreme temperatures outside the specified range.
