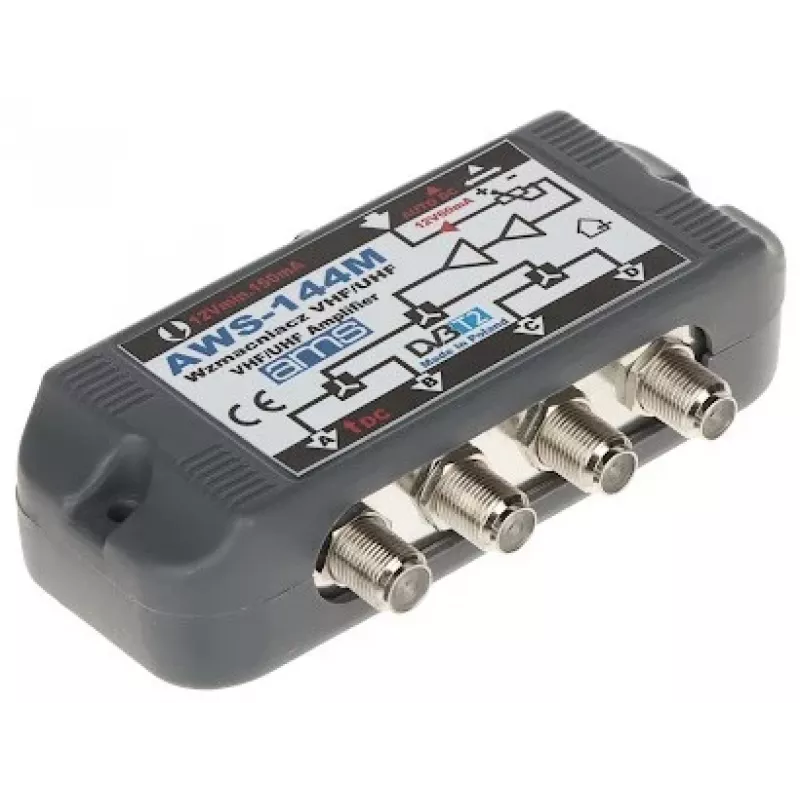

Amplificador de antena AWS-144M 20dB ganancia 47-862MHz F-Type

Boost your TV and radio signals with a fixed 20 dB gain across 47-862 MHz, ensuring clear reception for DVB-T/T2, DVB-C, FM, and DAB+ in any home setup.

Overview

The AWS-144M antenna amplifier delivers a consistent 20 dB gain over the full 47-862 MHz spectrum, making it compatible with terrestrial, cable, FM, and DAB+ broadcasts. Its low noise figure of under 3 dB preserves signal quality, while the 75-ohm F-type connectors ensure a secure, low-loss connection. The amplifier supports DC pass-through via the output, allowing you to power a pre-amplifier or LNB directly from the same coaxial line.

What stands out

• Fixed 20 dB gain with no adjustment needed—plug and play.
• Wide frequency range covers all common broadcast standards.
• Low noise figure (<3 dB) maintains signal integrity.
• DC pass-through enables remote powering of masthead amplifiers.
• IP54-rated housing withstands dust and splashes for indoor/outdoor use.
• High output level (100 dBµV) supports long cable runs and multiple outlets.

Technical details

• Frequency range: 47-862 MHz
• Gain: 20 dB (fixed)
• Noise figure: < 3 dB
• Max output level (IMD3 -60dB): 100 dBµV
• Input/output impedance: 75 Ohm
• Connector type: F-type
• Inputs: 1
• Outputs: 1
• Power supply: 12-24 V DC, 60 mA
• DC pass-through: Yes (via output)
• Return loss: > 10 dB
• Housing protection: IP54

Our verdict

The AWS-144M is a reliable, no-fuss signal booster that delivers consistent performance across all major broadcast standards. Its robust build and DC pass-through make it a versatile choice for both simple and complex antenna installations.
