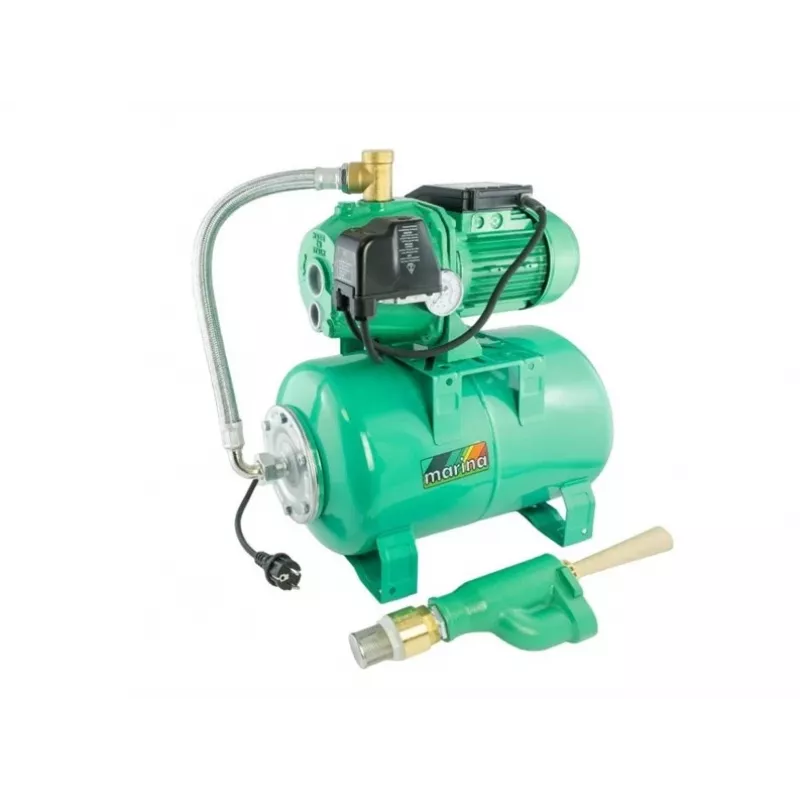

Bomba de aumento de presión 1100W APM100/25 con inyector

The Boost Pump 1100W APM100/25 with Injector stands out for its integrated injector system, enabling efficient pressure boosting and water transfer in residential and light commercial settings. Unlike standard pumps, this model combines a robust cast iron body with a Noryl impeller and a 24-liter pressure tank, delivering consistent performance and reduced cycling. The single-phase 230V motor is rated for continuous duty, making it suitable for irrigation, water supply, and pressure boosting applications.

Highlights

• Powerful 1100W motor with maximum head of 50 meters
• High flow rate up to 70 L/min (4.2 m³/h)
• Integrated 24-liter pressure tank for stable water pressure
• Durable cast iron pump body with Noryl impeller
• Stainless steel motor shaft (AISI 431) for corrosion resistance
• IPX4 protection rating for outdoor use
• Continuous duty rated for demanding applications

In daily use

This pump excels in scenarios requiring reliable pressure boosting, such as garden irrigation, rainwater harvesting, or increasing municipal water pressure. The injector system allows for self-priming operation with a suction lift of up to 9 meters, making it versatile for various water sources. The pressure tank reduces pump starts, extending motor life and providing smooth water delivery. With a maximum operating pressure of 6 bar, it can handle multiple outlets simultaneously.

Full specifications

• Power: 1.1 kW (1100W)
• Voltage: 230V, 50 Hz, single-phase
• Max flow rate: 70 L/min (4.2 m³/h)
• Max head: 50 m
• Max suction lift: 9 m
• Pressure tank volume: 24 liters
• Pump body material: Cast iron
• Impeller material: Noryl
• Motor shaft material: Stainless steel (AISI 431)
• Inlet/outlet diameter: 1" (DN25)
• Max operating pressure: 6 bar
• Liquid temperature range: -10 °C to +40 °C
• Ambient temperature range: Up to +40 °C
• Protection rating: IPX4
• Insulation class: F
• Continuous duty: Yes

Final note

For reliable pressure boosting with the convenience of an integrated injector and pressure tank, the APM100/25 delivers consistent performance and long-lasting durability.
