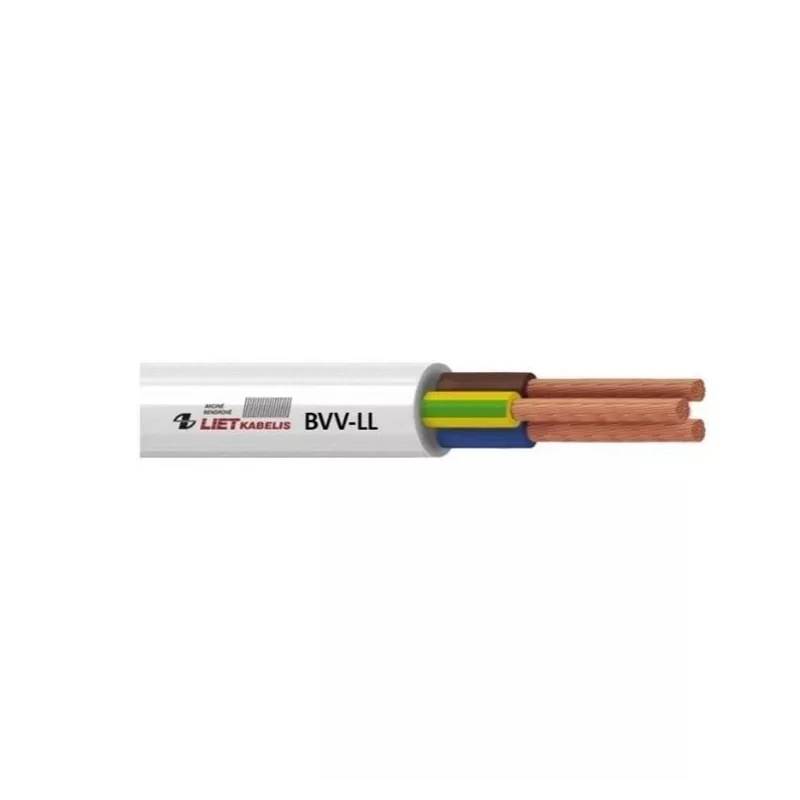

Cable de instalación BVV-LL 2x2,5 mm² blanco 25 m

Reliable fixed electrical wiring is essential for safe power distribution in homes and light industrial settings. The BVV-LL 2x2.5mm² white cable provides a robust solution for permanent installations, ensuring stable connections for lighting, sockets, and fixed appliances. With a 25-meter coil, it offers ample length for multiple runs or larger projects.

Who is it for

This cable is intended for electricians, contractors, and DIY enthusiasts undertaking fixed wiring projects in dry or damp environments. It suits domestic installations, light industrial wiring, and any application requiring a durable, non-flexible power cable that meets European standards.

Main features

• Two solid copper conductors, each 2.5mm² cross-section, for efficient current carrying capacity.
• PVC insulation and white PVC outer sheath provide mechanical protection and easy identification.
• Rated at 300/500V, suitable for fixed installations in conduits or surface-mounted on walls.
• Self-extinguishing flame retardant according to IEC 60332-1-2, enhancing safety.
• 25-meter coil packaging allows convenient handling and storage.

Specifications

• Cable type: Fixed wiring cable (BVV-LL)
• Conductor configuration: 2-core
• Conductor cross-section: 2.5 mm²
• Conductor material: Copper, Class 1 (solid)
• Insulation material: PVC
• Sheath material: PVC, white
• Rated voltage: 300/500 V
• Maximum operating temperature: +70°C
• Minimum operating temperature: -5°C
• Outer diameter (approx.): 9.0 mm
• Max current rating (approx.): 25 A (depending on installation method)
• Standards met: LST EN 50525-2-11 or equivalent
• Flame retardancy: Self-extinguishing (IEC 60332-1-2)
• Halogen-free: No
• UV resistance: Limited (not for prolonged outdoor exposure)

Tips

Always install this cable in accordance with local wiring regulations. Use appropriate conduit or trunking where mechanical protection is needed. For outdoor use, ensure the cable is protected from direct sunlight and moisture ingress. Calculate voltage drop for long runs to maintain performance.
