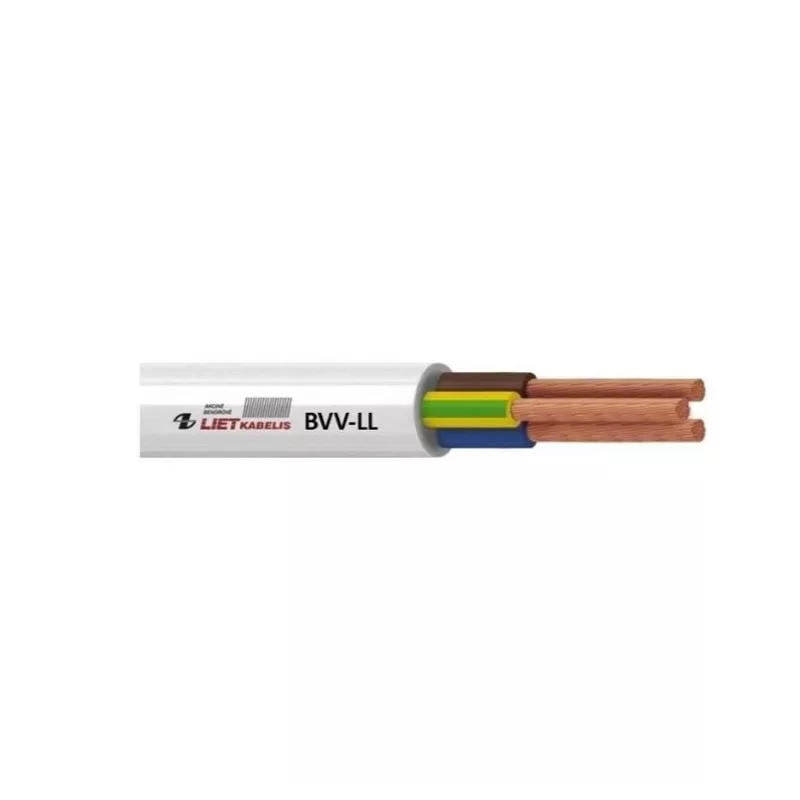

Cable de instalación fija BVV-LL 3 conductores 1,5 mm² blanco PVC 25 m rollo

Running permanent power to sockets, lighting, or fixed appliances demands a cable that won't let you down. The BVV-LL 3-core 1.5mm² white PVC cable gives you a dependable, flame-retardant solution for domestic and light industrial fixed wiring. With a 25-meter roll, you have enough length for multiple runs or a single substantial installation.

Who is it for

Electricians, contractors, and serious DIYers who need a reliable cable for fixed installations. It's ideal for wiring socket outlets, lighting circuits, and permanently connected equipment in homes, offices, and light commercial spaces.

Main features

• 3-core configuration with earth core for safe, compliant installations
• 1.5mm² solid copper conductors for excellent conductivity and easy termination
• Durable white PVC sheath and insulation for protection and neat appearance
• Flame retardant to IEC 60332-1-2, reducing fire propagation risk
• Rated 300/500V, suitable for standard mains voltage circuits
• 25-meter roll provides ample cable for multiple wiring tasks

Specifications

• Cable type: BVV-LL
• Conductor configuration: 3 core (with earth)
• Conductor cross-sectional area: 1.5 mm²
• Conductor material: Copper, solid (Class 1)
• Insulation material: PVC
• Sheath material: PVC
• Cable colour: White
• Rated voltage: 300/500 V
• Maximum operating temperature: +70 °C
• Minimum installation temperature: -5 °C
• Fire performance: Flame retardant (IEC 60332-1-2)
• Approximate outer diameter: 7.5 mm
• Typical current carrying capacity: 16 A (installation method dependent)
• Standards compliance: IEC 60227-4, BS 6004 (or equivalent)
• Packaging type: Roll

Tips

Always isolate the circuit before installation and follow local wiring regulations. For concealed wiring, consider using conduit or trunking for additional mechanical protection. Store the cable in a dry, cool place away from direct sunlight to maintain sheath integrity.
