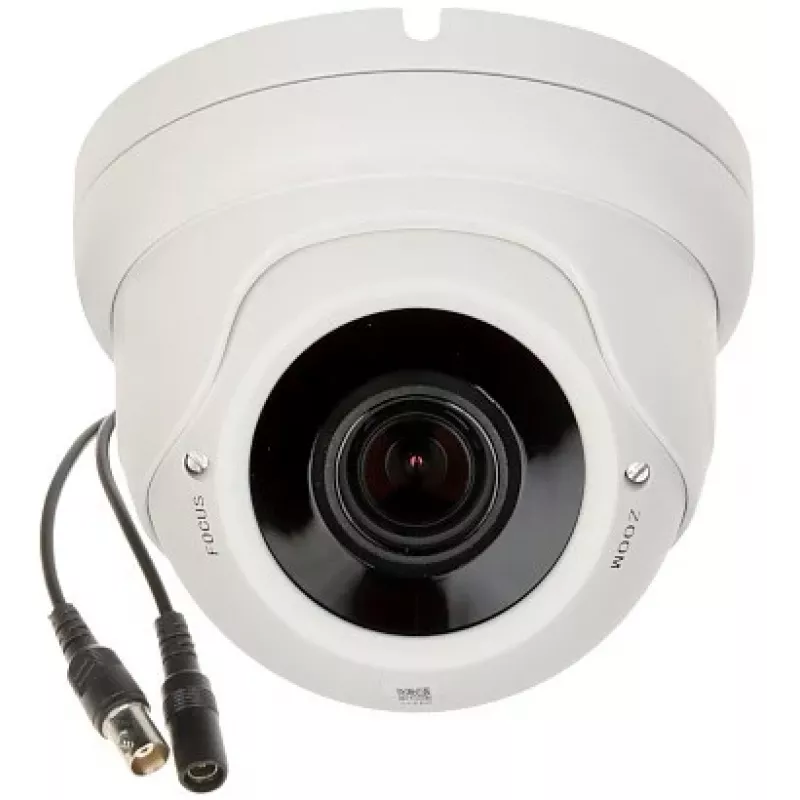

Cámara domo varifocal 5MP AHD, HD-CVI, HD-TVI, CVBS APTI-H52V31

Blurry, grainy footage from outdated analog cameras leaves blind spots and fails to capture critical details like faces or license plates. The APTI-H52V31 solves this by delivering crisp 5-megapixel video over existing coaxial cabling, thanks to its multi-format support for AHD, HD-CVI, HD-TVI, and CVBS. Whether upgrading a legacy system or building a new one, this dome camera brings high-definition clarity without the cost and complexity of IP networks.

Who is it for

Ideal for small businesses, retail stores, warehouses, and homeowners who need reliable, weatherproof surveillance with flexible installation. It suits anyone with existing coaxial infrastructure who wants to step up to HD resolution without rewiring.

Main features

• 5MP CMOS sensor delivers 2592x1944 resolution for sharp, detailed images.
• Switchable video output supports AHD, HD-CVI, HD-TVI, and CVBS for broad DVR compatibility.
• Motorized varifocal lens (2.8–12mm) allows remote zoom and focus adjustments via OSD menu.
• 36 IR LEDs provide up to 30m night vision in complete darkness.
• IP66-rated metal housing withstands dust, rain, and extreme temperatures from -20°C to 50°C.
• DWDR, 2D/3D DNR, and BLC ensure clear images in challenging lighting conditions.

Specifications

• Sensor: 1/2.8" CMOS
• Max Resolution: 5MP (2592x1944)
• Video Output: AHD / HD-CVI / HD-TVI / CVBS (switchable)
• Lens: Varifocal 2.8–12mm, manual zoom/focus
• IR Range: Up to 30m, 36 IR LEDs
• Min Illumination: 0.01 Lux (color), 0 Lux (IR on)
• Day/Night: ICR (auto IR cut filter)
• OSD Menu: Yes, via coaxial control
• Power: DC 12V, max 6W
• Housing: Metal, IP66 weatherproof
• Mounting: Ceiling or wall (dome)
• Operating Temperature: -20°C to +50°C

Tips

For best results, pair this camera with a DVR that supports 5MP AHD/TVI/CVI input. Use the OSD menu to fine-tune exposure and WDR for high-contrast scenes. Mount at 3–4 meters height and angle slightly downward to maximize coverage and reduce IR reflection.
