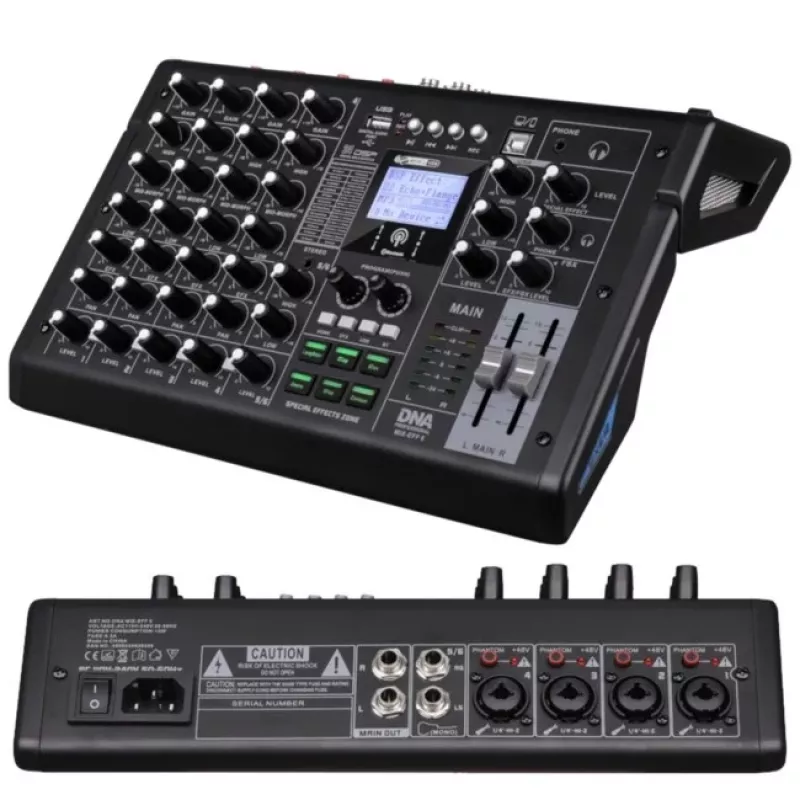

DNA MIX-EFF 6 Mezclador de Audio Analógico de 6 Canales con Efectos DSP y USB

With a built-in 24-bit DSP engine delivering studio-grade reverb, delay, and chorus, the DNA MIX-EFF 6 brings professional effects processing to a compact analog mixer. Its six-channel architecture—two mono mic/line inputs with 3-band EQ and two stereo line channels with 2-band EQ—provides flexible routing for live sound, home recording, or multimedia production. The integrated USB audio interface streams 16-bit/48kHz audio to and from a computer, making it a complete mixing and recording solution in one rugged metal chassis.

Overview

The DNA MIX-EFF 6 is a versatile analog mixer designed for musicians, podcasters, and content creators who need reliable, high-quality audio mixing with the convenience of built-in effects and USB connectivity. It features two mono channels with XLR and 1/4" TRS inputs, each with switchable +48V phantom power for condenser microphones, plus two stereo channels for keyboards, drum machines, or other line-level sources. The main mix is output via balanced XLR connectors, while a dedicated AUX send, headphone output, and RCA 2-track I/O offer complete monitoring and integration options.

What stands out

• Integrated 24-bit DSP with multiple effects presets (reverb, delay, chorus) for polished sound without external gear.
• USB audio interface for direct recording and playback with a computer—ideal for podcasting and home studios.
• Two mono channels with 3-band EQ and two stereo channels with 2-band EQ for precise tonal shaping.
• Switchable +48V phantom power on both mono channels for condenser microphones.
• Rugged metal chassis built to withstand the rigors of live performance and mobile recording.

Technical details

• Mixer type: Analog
• Channels: 6 (2 mono, 2 stereo)
• Microphone inputs: 2 x XLR
• Line inputs: 2 x 1/4" TRS (mono/stereo), 2 x 1/4" TRS (stereo)
• Main outputs: 2 x XLR balanced
• Auxiliary outputs: 1 x 1/4" TRS (AUX send)
• Headphone output: 1 x 1/4" TRS
• 2-Track I/O: RCA stereo in/out
• Phantom power: +48V switchable
• EQ per mono channel: 3-band (high, mid, low)
• EQ per stereo channel: 2-band (high, low)
• Built-in effects: DSP with multiple presets
• USB audio interface: Yes (16-bit/48kHz)
• Frequency response: 20 Hz – 20 kHz
• THD+N: <0.01%
• Power supply: External DC adapter (12V DC)
• Chassis material: Metal

Our verdict

The DNA MIX-EFF 6 punches above its class, offering a rare combination of analog warmth, built-in DSP effects, and USB connectivity in a compact, road-ready package. It's an excellent choice for small bands, solo performers, and home studio enthusiasts who need professional features without the complexity or cost of larger consoles.
