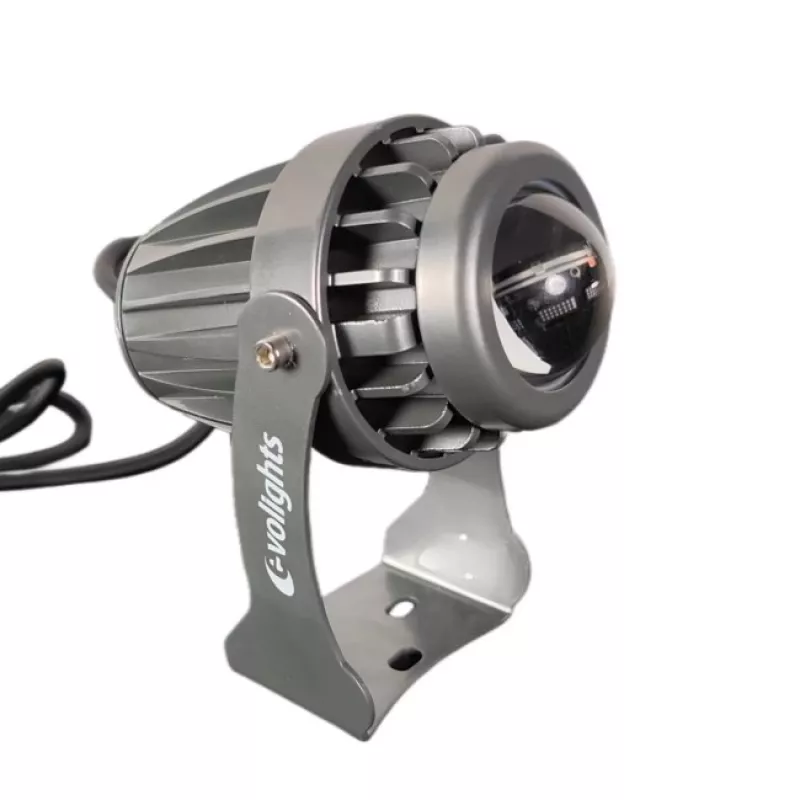

EVOLIGHTS IPin 10 Pinspot Foco LED IP65 10W 6500K DMX

With a razor-sharp 4° beam angle and a 10W high-power LED, the EVOLIGHTS IPin 10 delivers a piercing cool-white pinspot that cuts through any lighting rig. Its IP65-rated die-cast aluminum housing shrugs off dust and water jets, making it equally at home on outdoor stages, architectural accents, or mirror ball effects in any weather.

Overview

The IPin 10 is a compact, fanless pinspot built for precision and durability. It projects a tight, focused beam ideal for highlighting disco balls, centerpieces, or architectural details. The 6500K cool-white LED produces a crisp, daylight-like output, while the convection cooling system ensures silent operation—perfect for noise-sensitive environments. Control is flexible via DMX512, auto, sound-active, or master/slave modes, with a simple 3-channel DMX profile and an LED display for easy configuration.

What stands out

• Ultra-narrow 4° beam for pinpoint accuracy
• IP65 weatherproof rating for outdoor use
• Silent, fanless convection cooling
• Multiple control modes including DMX and sound-active
• Daisy-chainable power and DMX for clean setups

Technical details

• Light source: 1x 10W high-power white LED
• Beam angle: 4°
• Color temperature: 6500K (cool white)
• IP rating: IP65 (dust-tight, protected against water jets)
• Control: DMX512, auto, sound-active, master/slave
• DMX channels: 3
• Dimming: 0-100% linear electronic
• Strobe: 1-20 flashes per second
• Display: LED display with 4 control buttons
• Housing: die-cast aluminum alloy
• Power consumption: 15W max
• Power supply: AC 100-240V, 50/60Hz
• Connectors: IP65 PowerCON compatible in/out, IP65 3-pin DMX in/out
• Cooling: convection (fanless)
• LED lifespan: >50,000 hours
• Operating temperature: -20°C to 40°C
• Mounting: adjustable bracket included

Our verdict

The EVOLIGHTS IPin 10 is a rugged, no-nonsense pinspot that delivers a brilliant, tight beam in any condition. Its IP65 rating and silent operation make it a versatile choice for both indoor and outdoor applications, while the straightforward DMX control ensures it integrates easily into any lighting setup.
