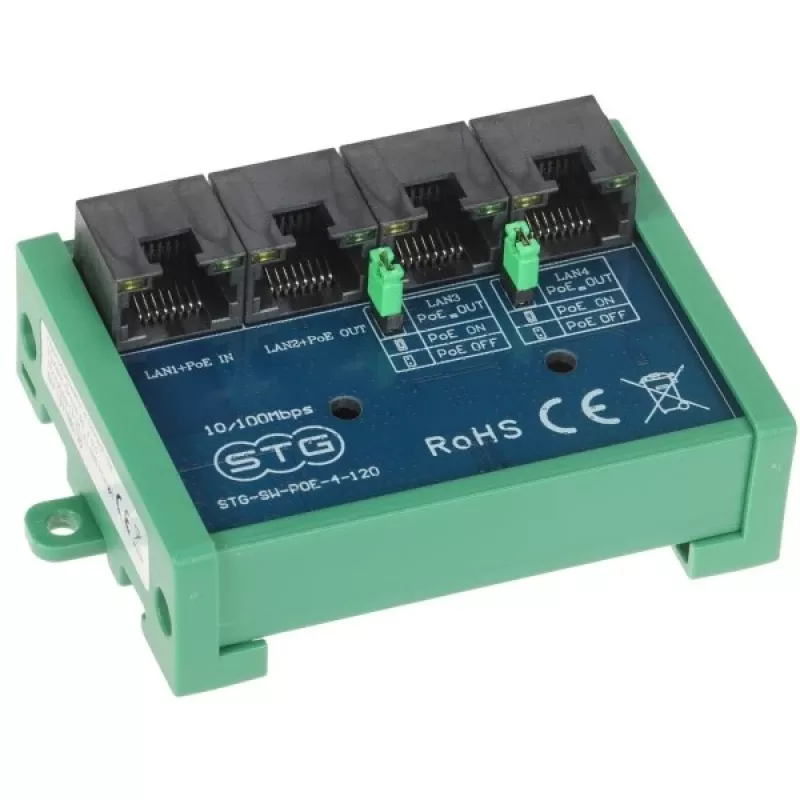

Extensor de switch STG-SW-POE-4-120 4 puertos Fast Ethernet PoE, 3x PoE+ 30W, 1x uplink, presupuesto 60W, modo extendido 250m

This 4-port Fast Ethernet PoE switch extender delivers power and data over a single cable to three PoE devices while providing one uplink port for network connectivity. With a total PoE budget of 60W and support for IEEE 802.3af/at, it can power IP cameras, VoIP phones, and wireless access points up to 250 meters away in extender mode.

Advantages

Plug-and-play operation requires no configuration, while the rugged metal housing ensures durability in demanding environments. The extender mode extends network reach beyond the standard 100-meter limit, making it ideal for remote installations. Surge protection safeguards connected equipment from voltage spikes, and VLAN support in extender mode isolates traffic for improved security and performance.

Suitable for

• IP surveillance systems with remote cameras
• VoIP phone deployments in offices or warehouses
• Wireless access point extension in large facilities
• Industrial and commercial network expansion

Key specifications

• 3x 10/100 Mbps PoE+ ports (30W max per port)
• 1x 10/100 Mbps uplink port
• Total PoE power budget: 60W
• Switching capacity: 0.8 Gbps
• MAC address table: 1024 entries
• Extender mode: up to 250m transmission distance
• Standard mode: up to 100m
• Power input: DC 52V external adapter
• Operating temperature: -10°C to 55°C
• Metal housing, desktop or wall-mountable

Recommendations

For reliable PoE delivery to multiple endpoints with extended reach, this switch extender offers a cost-effective solution. Ensure the external power adapter is included and verify compatibility with your PoE devices before deployment.
