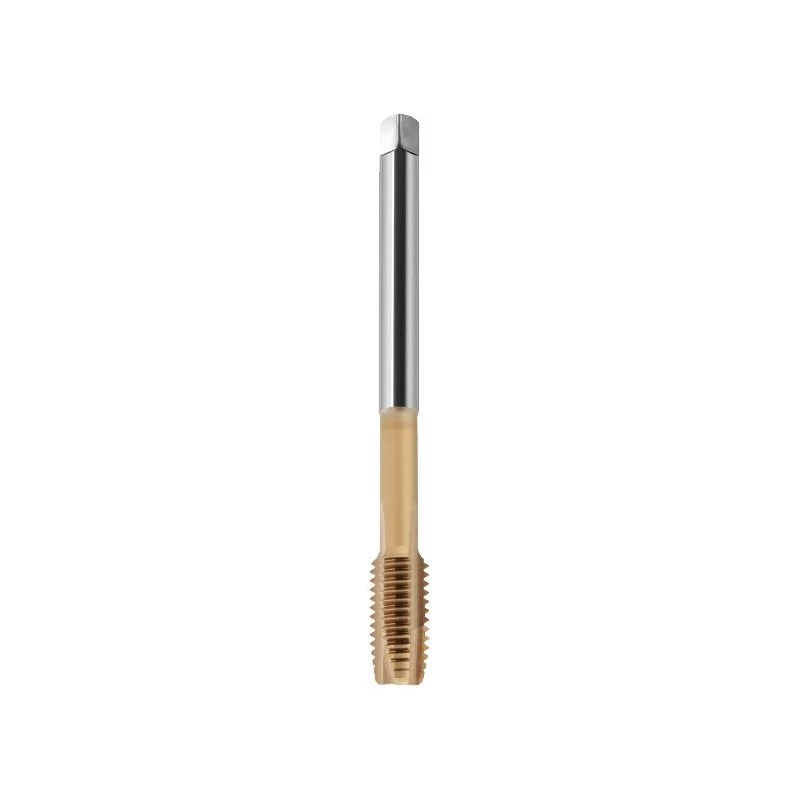

Machuelo M10 DIN-376B (6H) HSSE TN 800X - Machuelo de máquina helicoidal para agujeros pasantes

For professionals who demand precision threading in through holes, the TAP M10 DIN-376B (6H) HSSE TN 800X stands apart with its spiral point geometry and TiN coating. Unlike standard hand taps, this machine tap pushes chips forward, eliminating clogging and enabling faster, uninterrupted operation in production environments.

Highlights

• Spiral point (gun nose) design for efficient through-hole tapping
• HSSE-PM cobalt high-speed steel with powder metallurgy for exceptional toughness
• TiN (Titanium Nitride) coating reduces friction and extends tool life
• Metric M10 coarse thread with 6H tolerance for standard fit
• Reinforced shank for stability in machine holders

In daily use

This tap is engineered for high-volume threading of steel, stainless steel, cast iron, and non-ferrous metals. The 4-5 thread chamfer (Form B) allows easy starting, while the spiral point directs chips ahead of the tool, preventing chip packing in blind holes. The TiN coating provides a hard, low-friction surface that resists galling and improves performance in tough materials. With a cutting length of 23 mm and overall length of 100 mm, it fits standard tapping chucks and collets.

Full specifications

• Thread Type: Metric Coarse
• Nominal Diameter: M10
• Thread Pitch: 1.5 mm
• Standard: DIN 376B
• Material: HSSE-PM (High-Speed Steel with Cobalt, Powder Metallurgy)
• Coating: TiN (Titanium Nitride)
• Thread Tolerance: 6H
• Chamfer Form: Form B (4-5 threads lead)
• Flute Type: Spiral Point (SP)
• Application: Through Holes
• Cutting Direction: Right Hand
• Shank Type: Reinforced Shank

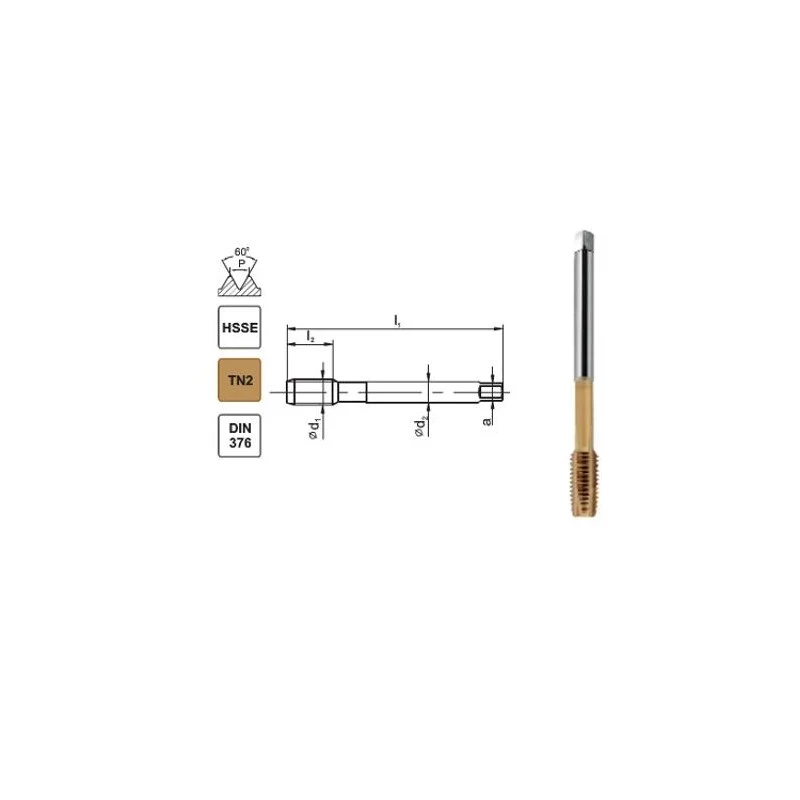

• Shank Diameter (d2): 7.0 mm
• Square Drive (a): 5.5 mm
• Overall Length (L1): 100 mm
• Cutting Length (L2): 23 mm
• Manufacturing Process: Ground Thread

Final note

Choose the TAP M10 DIN-376B (6H) HSSE TN 800X for reliable, high-speed threading in through holes, backed by premium materials and coating technology.
